MIDDLE DRIVE GEAR

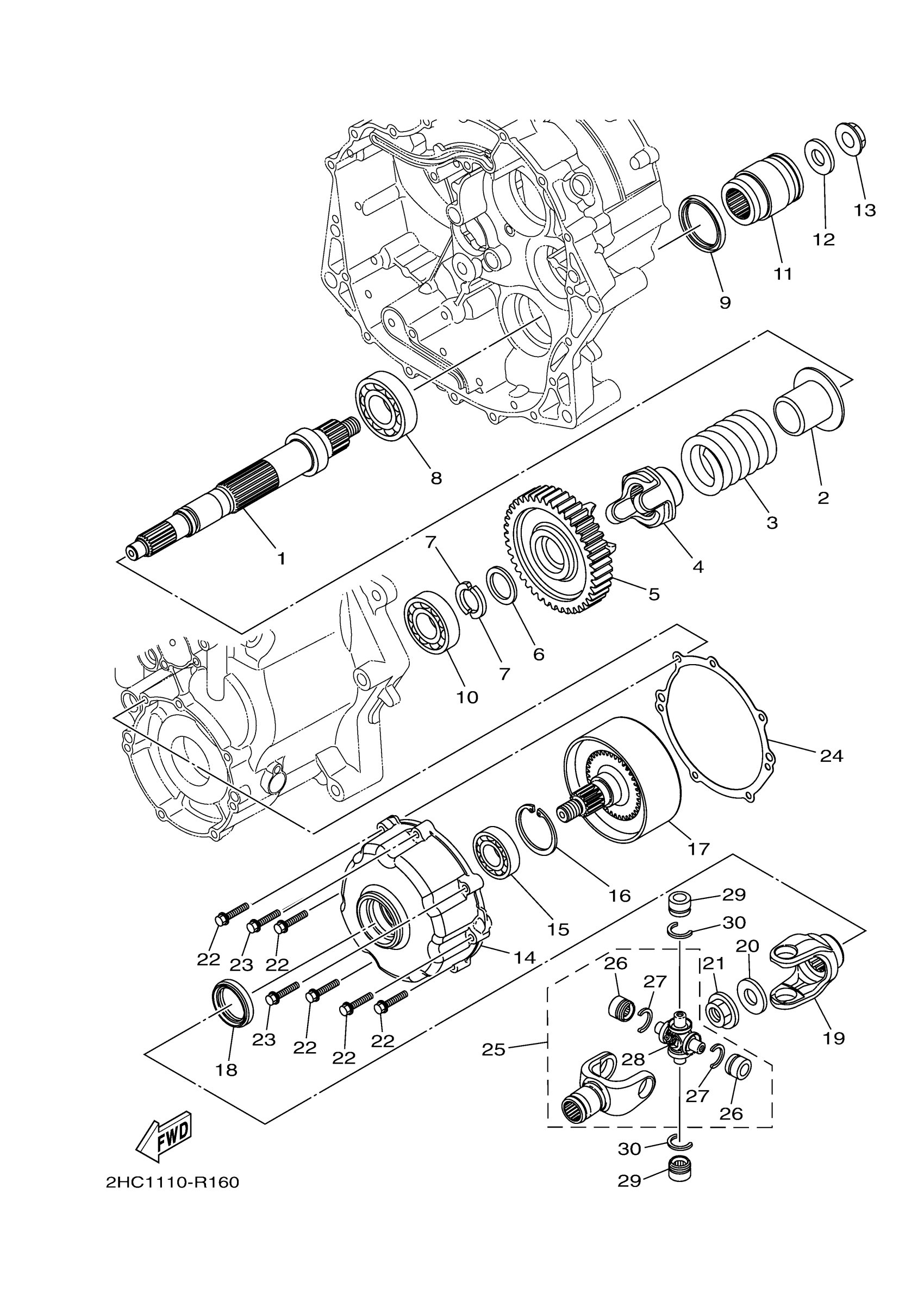

Yamaha YXZ10YMSLL (YXZ1000R EPS SPECIAL EDITION) B5J5 2020 MIDDLE DRIVE GEAR Diagram
#
1
SHAFT
2HC-17523-00-00
Unavailable
2
HOLDER
2HC-17524-00-00
Unavailable
3
SPRING, DAMPER
2HC-17528-00-00
Unavailable
4
CAM, DRIVEN
2S3-17527-00-00
Unavailable
5
GEAR, MIDDLE DRIVEN
B5H-17583-00-00
Unavailable
6
WASHER, PLATE
90201-27014-00
$33.99
7
WASHER, THRUST
23P-17529-00-00
$33.99
8
BEARING (5X5)
93306-20627-00
$75.99
9
OIL SEAL
93105-45018-00
$9.49
10
BEARING
93306-37218-00
$36.99
11
COUPLING
2HC-17832-00-00
$70.99
12
WASHER, PLATE(10L)
90201-165H4-00
Unavailable
13
NUT
90179-16004-00
$15.99
14
HOUSING, BEARING
2HC-17521-00-00
Unavailable
15
BEARING(1FF)
93306-00519-00
$36.99
16
CIRCLIP(48Y)
99009-47500-00
Unavailable
17
SHAFT ASSY 1
2HC-46380-00-00
Unavailable
18
OIL SEAL (34X46X10.5-306)
93102-34095-00
Unavailable
19
YOKE,JOINT 2
2HC-17576-00-00
Unavailable
20
WASHER, PLATE(10L)
90201-165H4-00
Unavailable
21
NUT
90179-16004-00
$15.99
22
BOLT, FLANGE
95022-06030-00
Unavailable
23
BOLT, WASHER BASED(4EB)
90105-06791-00
Unavailable
24
GASKET
2HC-17818-00-00
Unavailable
25
CROSS JOINT COMP. 2
2HC-46107-00-00
Unavailable
26
BEARING
93399-99948-00
Unavailable
27
CIRCLIP (4X7)
93440-20088-00
Unavailable
28
SPIDER
5GT-46187-00-00
Unavailable
29
BEARING
93399-99948-00
Unavailable
30
CIRCLIP (4X7)
93440-20088-00
Unavailable
