Description

Price

1

MAIN SWITCH ASSY

1XD-H2510-11-00

$32.99

2

CAP, KEY

5UG-H2579-00-00

$9.99

3

CLAMP(53Y)

90464-15065-00

Unavailable

4

CLAMP

90464-12830-00

$1.49

5

CLAMP

90464-20010-00

$3.23

6

CLAMP

90464-14800-00

$3.40

7

CLAMP

90464-25826-00

Unavailable

8

CLAMP (8M1)

90464-30040-00

$8.49

9

CLAMP

90464-37257-00

Unavailable

10

CLAMP

5B4-F1338-00-00

$3.33

11

CLAMP

1NS-F1338-00-00

$3.33

12

CLAMP(JN6)

90464-31827-00

$3.40

13

CLAMP(JN6)

90464-40825-00

$3.05

14

CLAMP

90464-48800-00

Unavailable

15

CLAMP

90464-51800-00

$14.99

16

CLAMP

90464-76800-00

Unavailable

17

CLAMP

90464-25267-00

Unavailable

18

TERMINAL COMP.

1HP-H254B-10-00

Unavailable

19

SWITCH, LAMP

2HC-82526-01-00

Unavailable

20

SWITCH, SELECT

2HC-87280-01-00

Unavailable

21

SENSOR, LEAN ANGLE

3B4-82576-10-00

Unavailable

22

BOLT(6A1)

97095-05016-00

Unavailable

23

WASHER, PLAIN (646)

92990-05600-00

Unavailable

24

PILOT LIGHT ASSY

1XD-H3530-00-00

Unavailable

25

BUZZER

2MB-83383-00-00

Unavailable

26

BOLT(3JK)

97027-05020-00

Unavailable

27

WASHER, PLAIN (646)

92990-05600-00

Unavailable

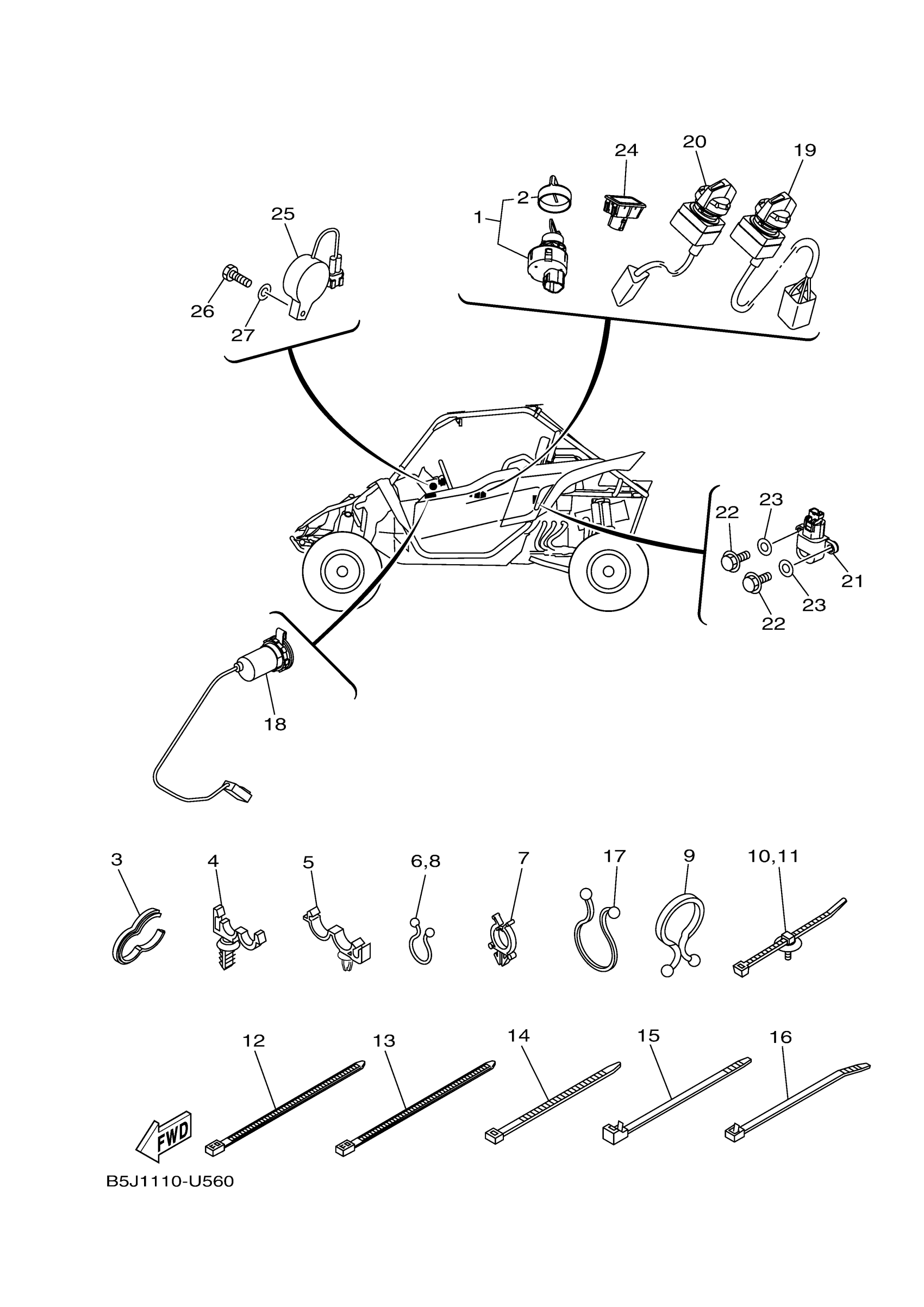

Yamaha YXZ10YMSLL (YXZ1000R EPS SPECIAL EDITION) B5J5 2020 ELECTRICAL 3 Diagram

MAIN SWITCH ASSY

CAP, KEY

CLAMP(53Y)

CLAMP

CLAMP

CLAMP

CLAMP

CLAMP (8M1)

CLAMP

CLAMP

CLAMP

CLAMP(JN6)

CLAMP(JN6)

CLAMP

CLAMP

CLAMP

CLAMP

TERMINAL COMP.

SWITCH, LAMP

SWITCH, SELECT

SENSOR, LEAN ANGLE

BOLT(6A1)

WASHER, PLAIN (646)

PILOT LIGHT ASSY

BUZZER

BOLT(3JK)

WASHER, PLAIN (646)
