Description

Price

1

PANEL, CONSOLE 1

2HC-F837L-00-00

$42.99

2

BOLT, WITH WASHER

90119-06226-00

$8.49

3

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

4

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

5

BOLT, WITH WASHER

90119-06226-00

$8.49

6

PANEL, CONSOLE 2

2HC-F837M-00-00

$41.99

7

BOLT, WITH WASHER

90119-06226-00

$8.49

8

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

9

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

10

BOLT, WITH WASHER

90119-06226-00

$8.49

11

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

12

COVER, TOP

2HC-F171A-21-00

$102.99

13

BOLT, WITH WASHER

90119-06226-00

$8.49

14

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

15

NUT, SPRING

90183-060A6-00

$5.49

16

COVER, HANDLE LEVE

2HC-F6372-00-00

Unavailable

17

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

18

COVER, BATTERY

2HC-F124E-22-00

Unavailable

19

COVER

2HC-F117F-21-00

Unavailable

20

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

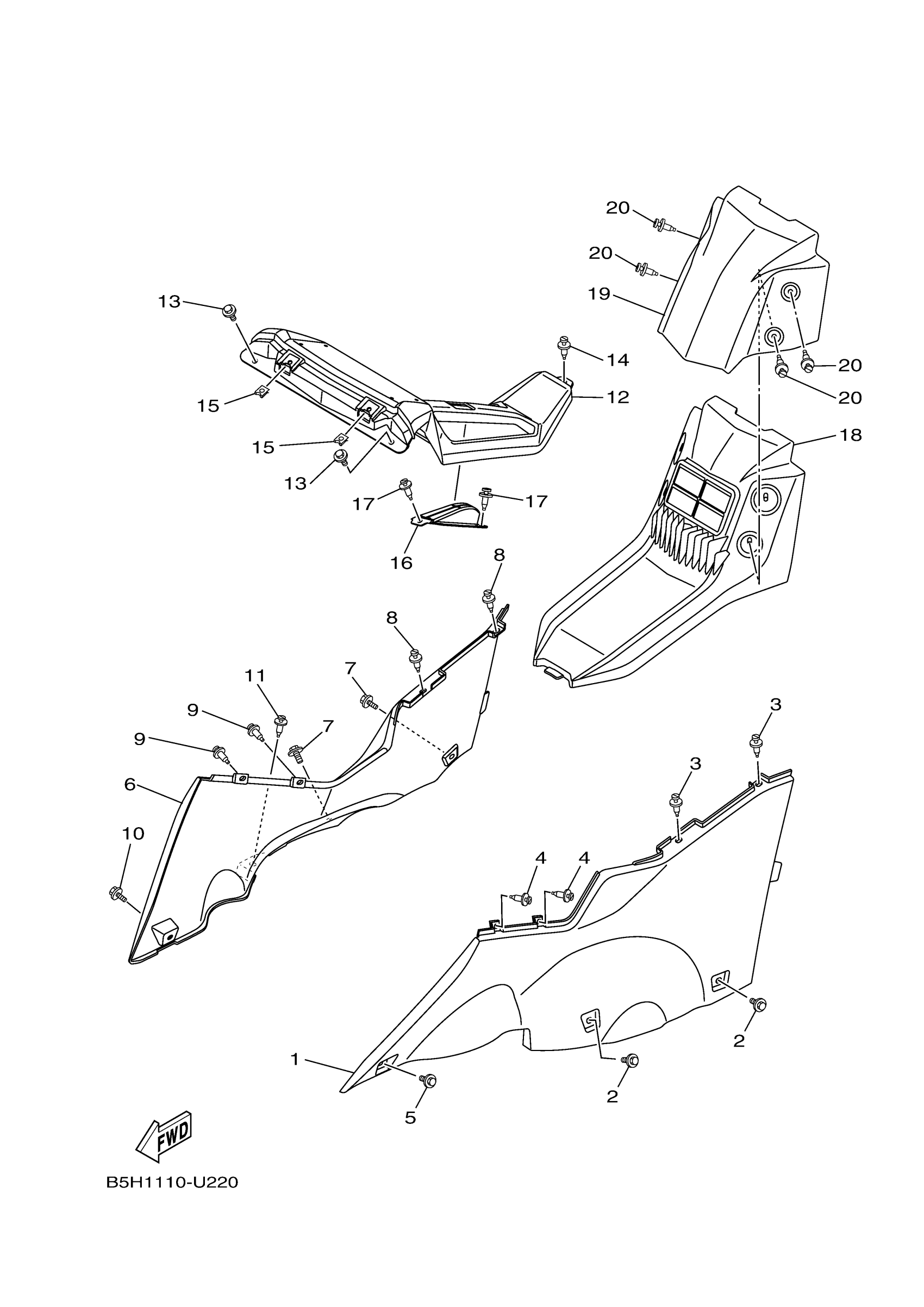

Yamaha YXZ10YMSKL (YXZ1000R EPS SE) B5J1 2019 SIDE COVER 2 Diagram

PANEL, CONSOLE 1

BOLT, WITH WASHER

RIVET,SPEC'L SHAPE

RIVET,SPEC'L SHAPE

BOLT, WITH WASHER

PANEL, CONSOLE 2

BOLT, WITH WASHER

RIVET,SPEC'L SHAPE

RIVET,SPEC'L SHAPE

BOLT, WITH WASHER

RIVET,SPEC'L SHAPE

COVER, TOP

BOLT, WITH WASHER

RIVET,SPEC'L SHAPE

NUT, SPRING

COVER, HANDLE LEVE

RIVET,SPEC'L SHAPE

COVER, BATTERY

COVER

RIVET,SPEC'L SHAPE
