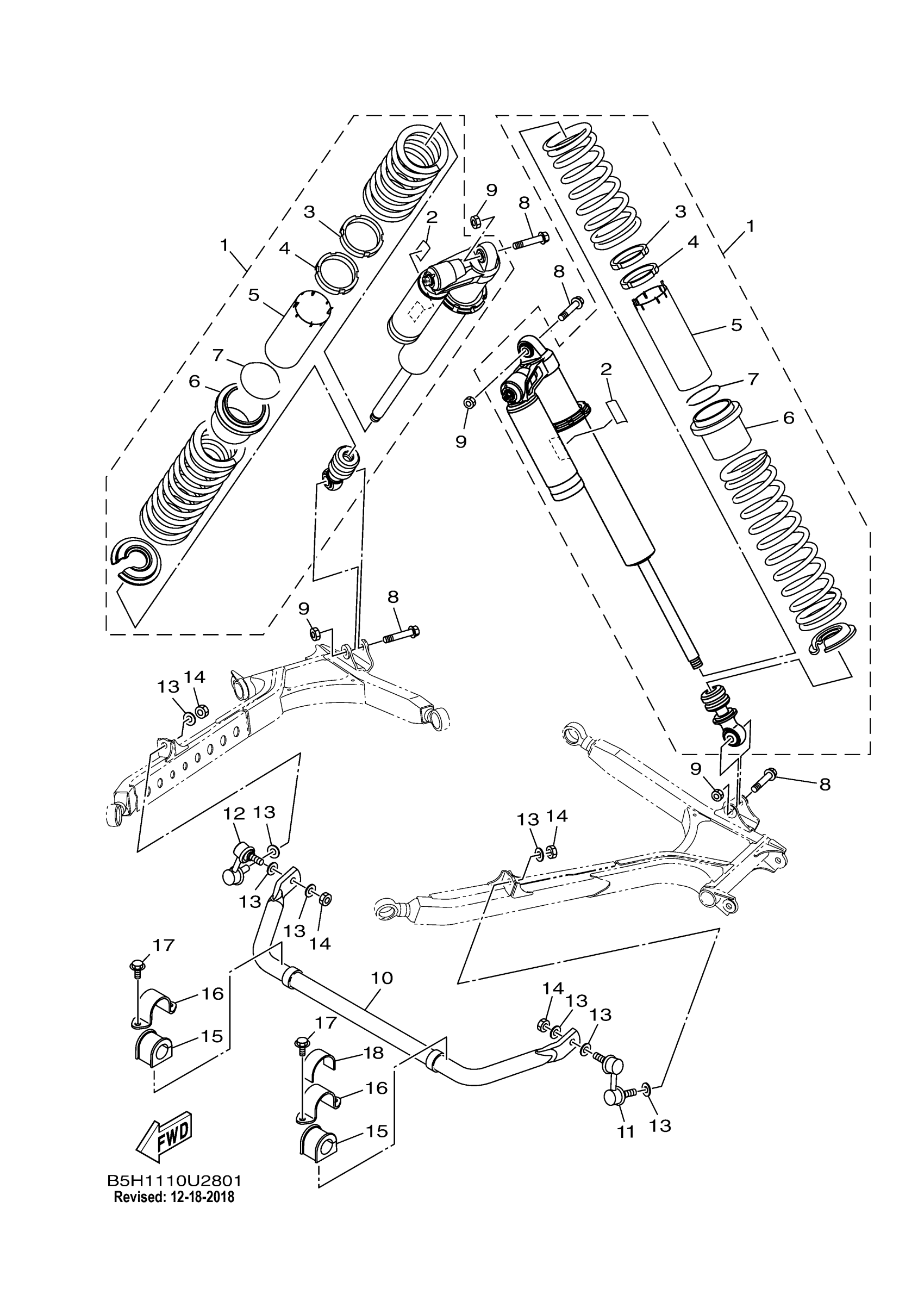

Yamaha YXZ10YMSKL (YXZ1000R EPS SE) B5J1 2019 REAR SUSPENSION Diagram

#

Description
Price

1

RR SHOCK ABSORBER

B5H-F220H-01-00

$1,078.99

2

LABEL,WARNING

1HP-F2259-01-00

$15.49

3

RING, HOLD 2

2HC-F2981-00-00

Unavailable

4

RING, HOLD

2HC-F2973-00-00

Unavailable

5

SLIDER, 1

2HC-F388D-00-00

$42.99

6

SLEEVE

2HC-F2922-00-00

$48.99

7

RING

2HC-F4629-00-00

$13.99

8

BOLT, FLANGE

90105-12051-00

$9.49

9

NUT, SELF-LOCKING

90185-12007-00

$10.49

10

BAR, STABILIZER

2HC-G7491-21-00

Unavailable

11

JOINT, STABILIZER 1

BAS-F385L-04-00

$75.99

12

JOINT, STABILIZER 2

BAS-F385M-05-00

$75.99

13

WASHER, PLATE

90201-12045-00

$5.60

14

NUT, SELF-LOCKING

90185-12002-00

$12.49

15

BUSH,STABLZR FRONT

2HC-F386G-01-00

Unavailable

16

COVER, STABILIZER

2HC-F386H-00-00

Unavailable

17

BOLT, FLANGE

95817-10020-00

Unavailable

18

PLATE, DAMPER 1

2HC-23421-00-00

Unavailable
