- YXZ10YMSKL (YXZ1000R EPS SE) B5J1 2019
MASTER CYLINDER

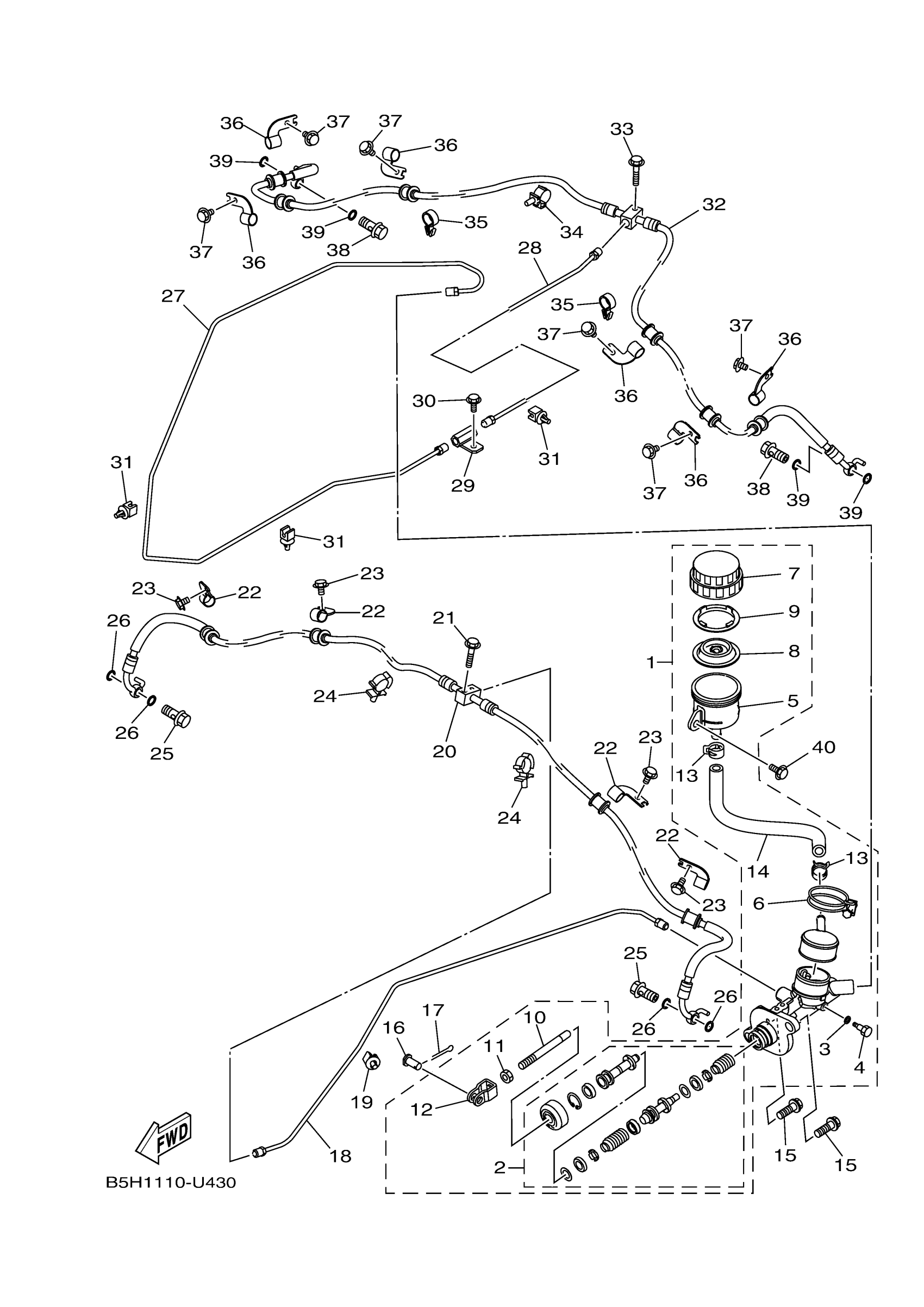

Yamaha YXZ10YMSKL (YXZ1000R EPS SE) B5J1 2019 MASTER CYLINDER Diagram
#
1
MASTER CYLINDER ASSY
B5H-2583T-00-00
Unavailable
2
CYLINDER KIT, MASTER
B5H-25808-00-00
Unavailable
3
WASHER, OIL BOLT
5UG-25878-00-00
Unavailable
4
BOLT, OIL 1
5UG-25877-00-00
$0.99
5
TANK, RESERVOIR
2HC-25894-00-00
Unavailable
6
BAND
5UG-25719-00-00
$6.99
7
CAP, RESERVOIR
5UG-25852-00-00
$17.49
8
DIAPHRAGM, RESERVOIR
5UG-25854-00-00
$9.99
9
BUSH,DIAPHRAGM
5UG-25855-00-00
$5.49
10
PUSH ROD COMP.
5UG-25880-00-00
Unavailable
11
NUT, HEXAGON SMALL
95317-08700-00
$9.49
12
JOINT
2HC-27222-00-00
$15.49
13
CLIP
2HC-24519-00-00
$1.72
14
HOSE
2HC-2589E-00-00
Unavailable
15
BOLT, FLANGE
90105-08129-00
$4.88
16
PIN, CLEVIS
90240-08005-00
Unavailable
17
PIN, COTTER
91490-20025-00
Unavailable
18
PIPE, BRAKE 2
2HC-F5882-01-00
Unavailable
19
CLAMP 1
2HC-81677-00-00
Unavailable
20
HOSE, BRAKE 1
B5H-F5872-12-00
Unavailable
21
BOLT, FLANGE
90105-06833-00
Unavailable
22
HOLDER, BRAKE HOSE 2
3B4-25876-10-00
Unavailable
23
BOLT, FLANGE
95812-06010-00
Unavailable
24
CLAMP
90464-18011-00
Unavailable
25
BOLT, UNION
90401-10015-00
Unavailable
26
WASHER, PLATE(481)
90201-10118-00
Unavailable
27
PIPE, BRAKE
2HC-F5871-02-00
Unavailable
28
PIPE,BRAKE 3
2HC-F5883-10-00
Unavailable
29
JOINT
JX2-25885-11-00
Unavailable
30
BOLT, FLANGE
90105-06831-00
Unavailable
31
CLAMP 1
2HC-81677-00-00
Unavailable
32
HOSE, BRAKE 2
B5H-F5873-12-00
Unavailable
33
BOLT, FLANGE
90105-06833-00
Unavailable
34
CLAMP
90464-16012-00
Unavailable
35
CLAMP
90464-19815-00
Unavailable
36
HOLDER, BRAKE HOSE 2
3B4-25876-10-00
Unavailable
37
BOLT, FLANGE
95812-06010-00
Unavailable
38
BOLT, UNION
90401-10015-00
Unavailable
39
WASHER, PLATE(481)
90201-10118-00
Unavailable
40
BOLT, WITH WASHER
90119-06137-00
Unavailable
