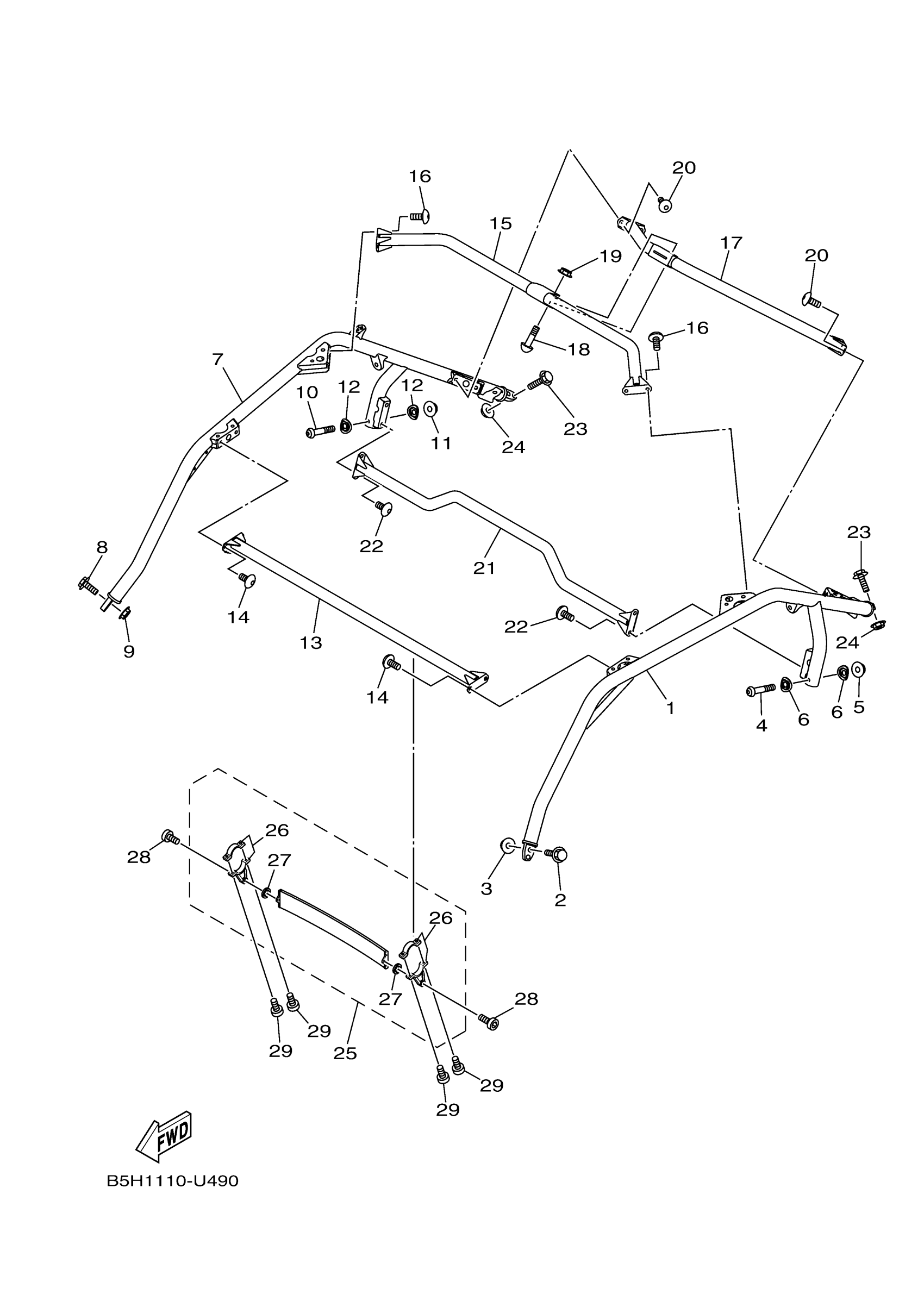

Yamaha YXZ10YMSKL (YXZ1000R EPS SE) B5J1 2019 GUARD 2 Diagram

#

Description
Price

1

SUPPORT, ROOF 3

B5H-K831A-00-00

$296.99

2

BOLT, FLANGE (8V9)

95812-10045-00

$4.19

3

NUT, SELF-LOCKING

90185-10011-00

$5.60

4

BOLT, BUTTON HEAD

92012-10060-00

$3.13

5

NUT, SELF-LOCKING

90185-10011-00

$5.60

6

WASHER 2

5UG-K7526-00-00

$5.49

7

SUPPORT, ROOF 4

B5H-K831E-00-00

$296.99

8

BOLT, FLANGE (8V9)

95812-10045-00

$4.19

9

NUT, SELF-LOCKING

90185-10011-00

$5.60

10

BOLT, BUTTON HEAD

92012-10060-00

$3.13

11

NUT, SELF-LOCKING

90185-10011-00

$5.60

12

WASHER 2

5UG-K7526-00-00

$5.49

13

MEMBER, ROOF FRAME

B5H-K8392-00-00

$181.99

14

BOLT,HEX. SOCKET B

90111-10802-00

$5.60

15

ROOF SUPPORT ASSY

B5H-K830A-00-00

$182.99

16

BOLT,HEX. SOCKET B

90111-10802-00

$5.60

17

ROOF SUPPORT ASSY

B5H-K830B-00-00

Unavailable

18

BOLT, BUTTON HEAD

92012-10060-00

$3.13

19

NUT, SELF-LOCKING

90185-10011-00

$5.60

20

BOLT,HEX. SOCKET B

90111-10802-00

$5.60

21

ROOF SUPPORT ASSY

B5H-K830C-00-00

Unavailable

22

BOLT,HEX. SOCKET B

90111-10802-00

$5.60

23

BOLT, FLANGE (8V9)

95812-10045-00

$4.19

24

NUT, SELF-LOCKING

90185-10011-00

$5.60

25

MIRROR KIT ASSY

2HC-F62A0-01-00

Unavailable

26

CLAMP 1

2HC-F53N5-01-00

Unavailable

27

BUSH

2HC-F7121-00-00

Unavailable

28

BOLT, HEXAGON SOCKET HEAD

90110-06854-00

Unavailable

29

BOLT,SOCKET

91317-06012-00

Unavailable
