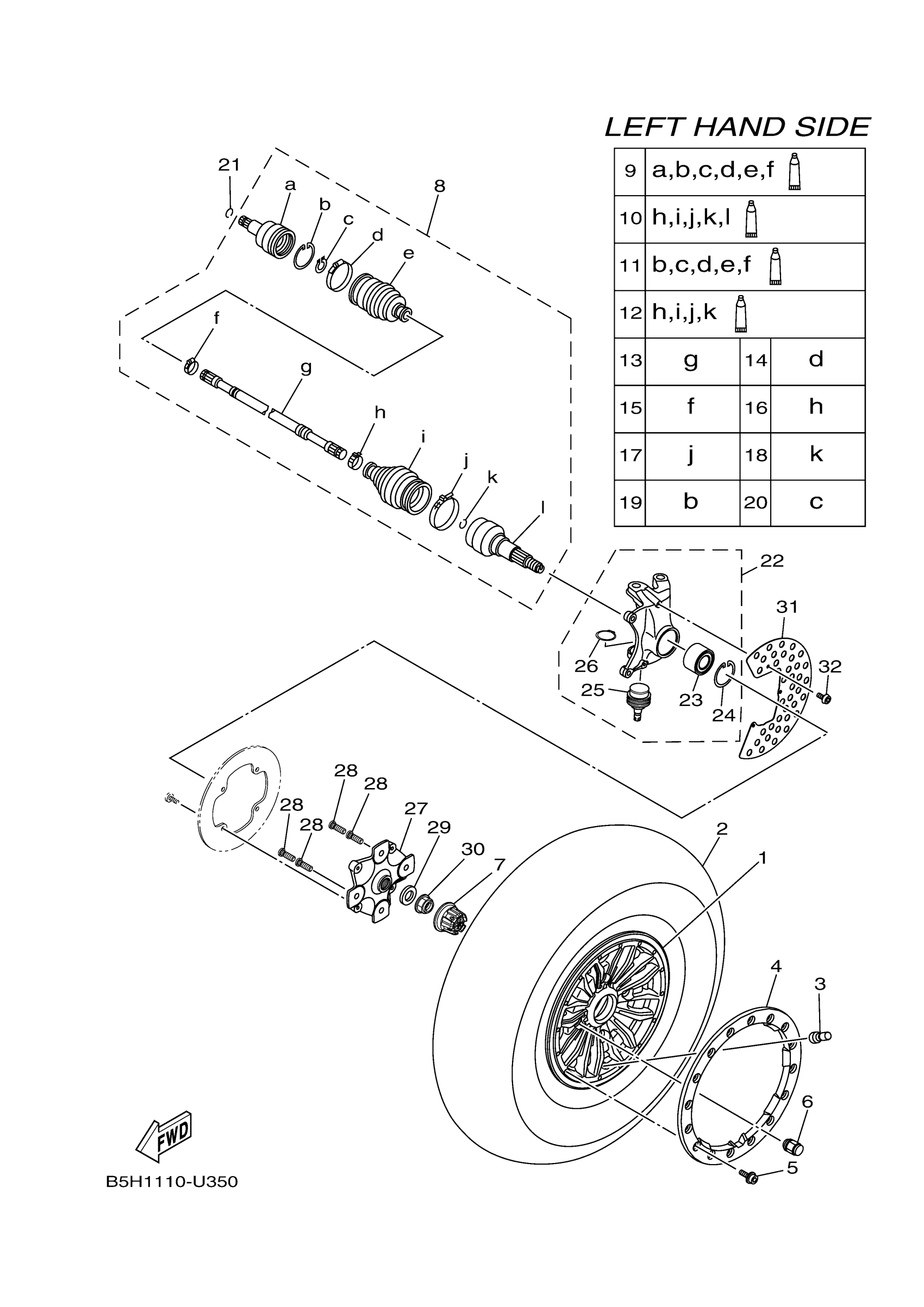

Yamaha YXZ10YMSKL (YXZ1000R EPS SE) B5J1 2019 FRONT WHEEL Diagram
#
1
CAST, WHEEL FRONT MATT BLACK
BKP-F5168-30-00
$390.99
2
29X9R14 ML19A 8PR TL
94109-14819-00
$364.99
3
VALVE, RIM
93900-00812-00
Unavailable
4
RING 1-BLACK
B5H-F5185-01-00
$181.99
5
BOLT, FLANGE
90105-088H6-00
$10.49
6
NUT, CROWN
90176-12800-00
$7.49
7
CAP, WHEEL
2HC-F512A-00-00
$3.02
8
DRIVE SHAFT ASSY
2HC-2518F-01-00
$233.99
9
DOUBLE OFF SET JOINT
2HC-2510J-01-00
$297.99
10
BALL JOINT SET
2HC-2510F-01-00
$504.99
11
BOOT SET(DOUBLE OF
2HC-2510H-01-00
$55.99
12
BOOT SET (BALL JOINT)
2HC-2510G-01-00
$48.99
13
SHAFT
2HC-2518E-00-00
Unavailable
14
BOOT BAND(DOUBLE OFFSET JOINT)
2HC-2511H-00-00
$9.99
15
BOOT BAND(DOUBLE OFFSET JOINT)
2HC-2511G-00-00
$6.99
16
BOOT BAND (BALL JOINT)
2HC-2510U-00-00
Unavailable
17
BOOT BAND (SMALL)
2HC-2512G-10-00
Unavailable
18
CIRCLIP
2HC-2512H-00-00
Unavailable
19
CIRCLIP
3B4-25182-00-00
Unavailable
20
SNAP RING
3B4-2512J-00-00
Unavailable
21
CIRCLIP(2HR)
93450-22119-00
Unavailable
22
STEERING KNUCKLE A
B5H-F3501-00-00
Unavailable
23
BEARING
93305-00604-00
Unavailable
24
CIRCLIP(MF1)
99009-62500-00
Unavailable
25
BALL JOINT 2
2HC-23579-00-00
Unavailable
26
CIRCLIP
93410-42096-00
Unavailable
27
HUB, FRONT
B5H-F5111-02-00
Unavailable
28
BOLT, SERRATION
90114-12005-00
Unavailable
29
WASHER, PLATE
90201-25023-00
Unavailable
30
NUT
90179-24006-00
Unavailable
31
RING, WHEEL 1
2HC-F514A-00-00
Unavailable
32
BOLT,HEX. SOCKET BUTTON
90111-06096-00
Unavailable
