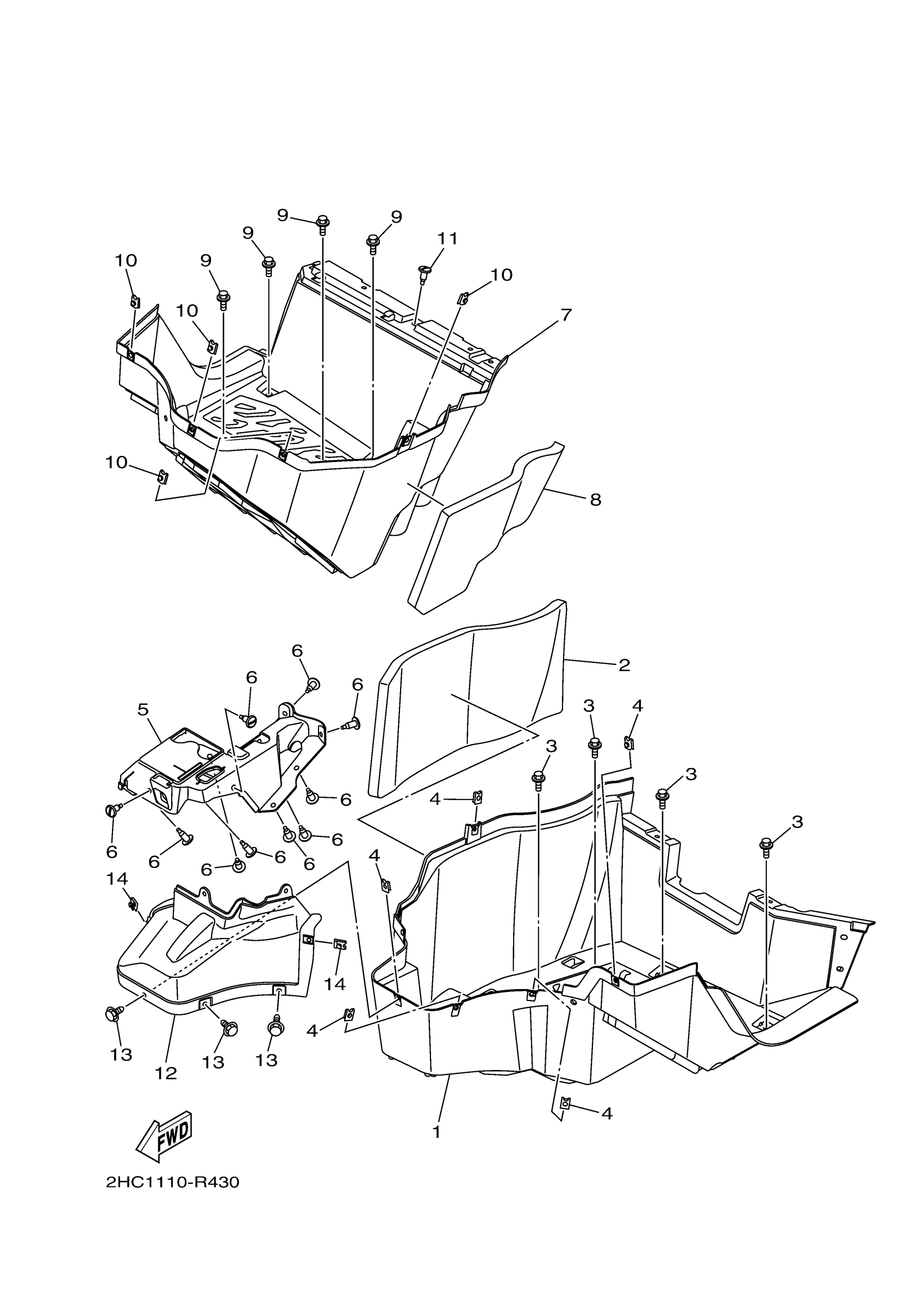

Yamaha YXZ10YMSJL (YXZ1000R EPS SE) 2HCJ 2018 STAND FOOTREST Diagram

#

Description

Price

1

FOOTREST 1

2HC-F7411-00-00

$81.97

2

INSULATOR, SIDE CO

2HC-F174A-10-00

$63.65

3

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

4

NUT, SPRING

90183-060A6-00

$3.90

5

COVER, DUST

2HC-F7286-00-00

Unavailable

6

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

7

FOOTREST 2

2HC-F7421-00-00

$88.85

8

INSULATOR 5

2HC-F174S-10-00

$40.26

9

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

10

NUT, SPRING

90183-060A6-00

$3.90

11

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

12

COVER, PEDAL

2HC-F7854-00-00

$12.76

13

BOLT, WITH WASHER

90119-06226-00

$2.12

14

NUT, SPRING

90183-060A6-00

$3.90
