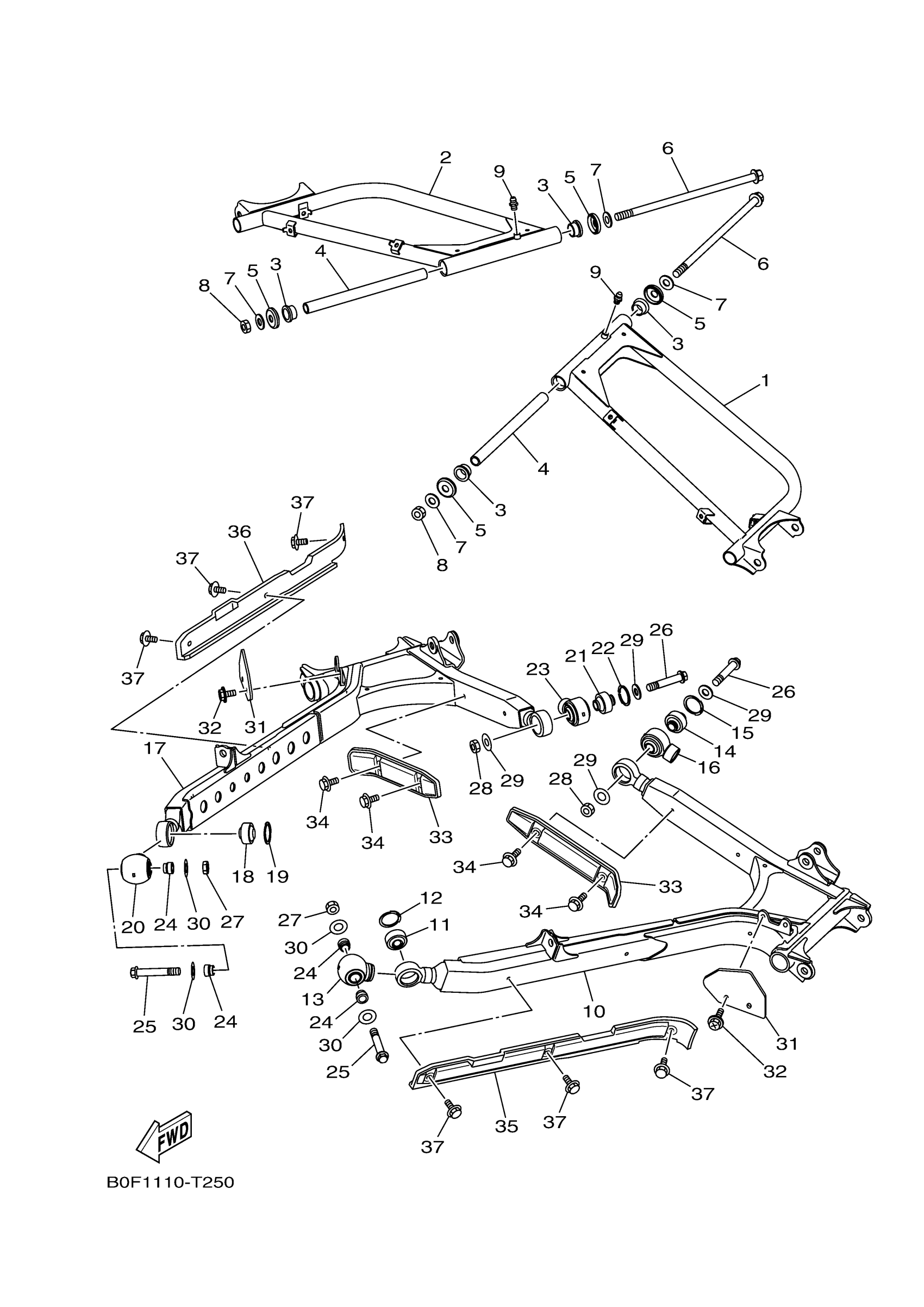

Yamaha YXZ10YMSJL (YXZ1000R EPS SE) 2HCJ 2018 REAR ARM Diagram
#
1
RR. UPR. ARM COMP.
2HC-F2104-20-00
$88.99
2
RR. UPR. ARM COMP.
2HC-F2105-20-00
$88.99
3
BUSH, SOLID
90381-18003-00
$7.49
4
COLLAR
90387-12062-00
$34.99
5
COVER, THRUST 1
1XD-23517-01-00
$9.99
6
BOLT, FLANGE
90105-12098-00
$21.99
7
WASHER, PLATE
90201-12045-00
$5.60
8
NUT, SELF-LOCKING
90185-12007-00
$10.49
9
NIPPLE, GREASE
93700-06M03-00
Unavailable
10
RR. LWR. ARM COMP., 1
2HC-F2106-41-00
Unavailable
11
BALL JOINT 1
2HC-23549-00-00
$139.99
12
CIRCLIP(47Y)
99009-35500-00
$8.49
13
SEAL, DUST 1
2HC-23527-01-00
$29.99
14
JOINT, UNIVERSAL 2
2HC-23845-00-00
$99.99
15
CIRCLIP(47Y)
99009-35500-00
$8.49
16
SEAL, DUST 2
2HC-23528-00-00
Unavailable
17
RR. LWR. ARM COMP., 2
2HC-F2107-41-00
Unavailable
18
BALL JOINT 1
2HC-23549-00-00
$139.99
19
CIRCLIP(47Y)
99009-35500-00
$8.49
20
SEAL, DUST 1
2HC-23527-01-00
$29.99
21
JOINT, UNIVERSAL 2
2HC-23845-00-00
$99.99
22
CIRCLIP(47Y)
99009-35500-00
$8.49
23
SEAL, DUST 2
2HC-23528-00-00
Unavailable
24
COLLAR 1
2HC-23754-00-00
Unavailable
25
BOLT, FLANGE
90105-12095-00
Unavailable
26
BOLT, FLANGE
90105-12100-00
Unavailable
27
NUT, SELF-LOCKING
90185-12007-00
$10.49
28
NUT, SELF-LOCKING
90185-12007-00
$10.49
29
WASHER, PLATE
90201-12045-00
$5.60
30
WASHER, PLATE
90201-12045-00
$5.60
31
COVER, THRUST 1
2HC-F2128-10-00
Unavailable
32
BOLT, WITH WASHER
90119-06226-00
Unavailable
33
COVER
2HC-F219X-00-00
Unavailable
34
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
35
COVER
2HC-F2211-00-00
Unavailable
36
COVER
2HC-F2221-00-00
Unavailable
37
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
