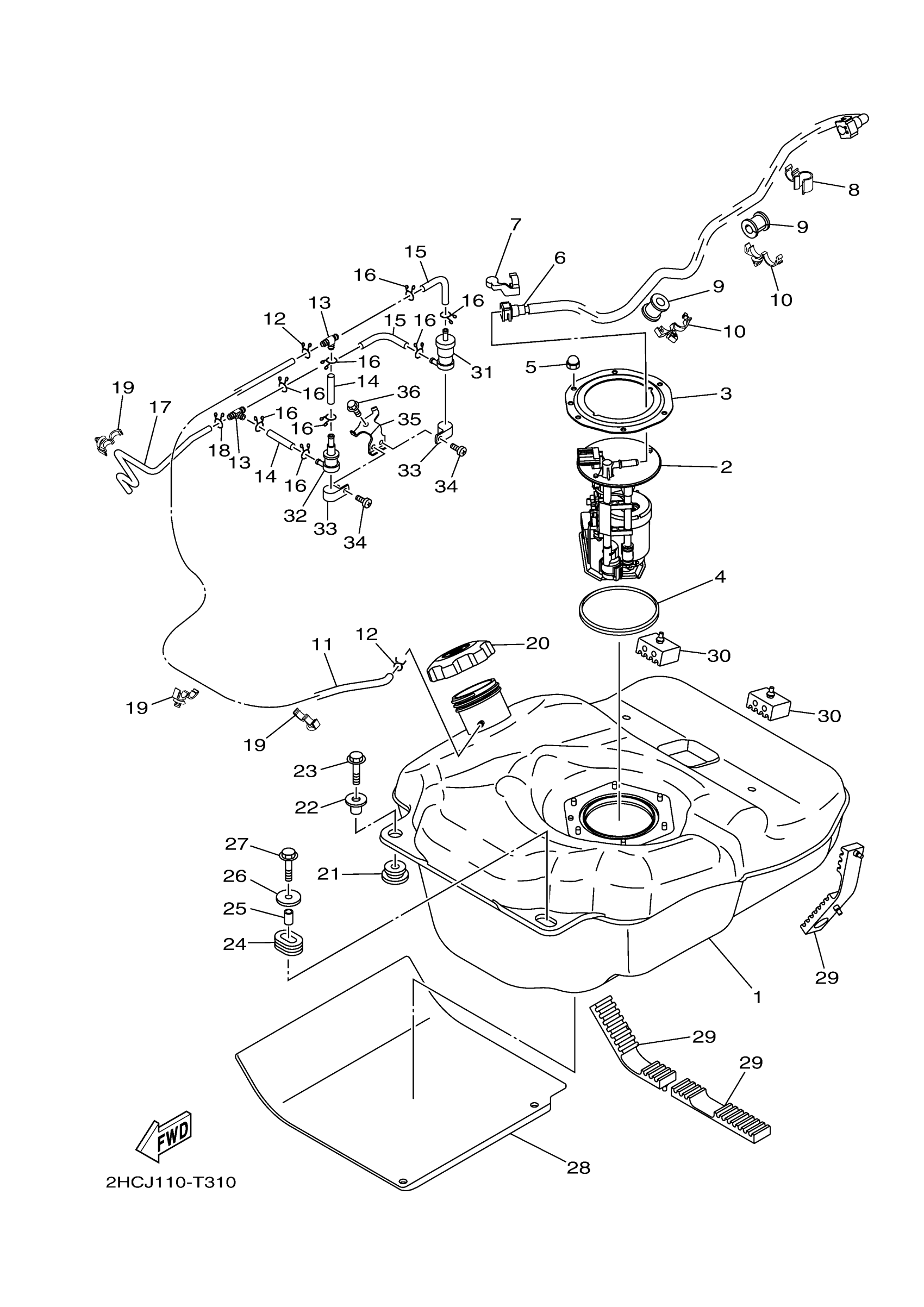

Yamaha YXZ10YMSJL (YXZ1000R EPS SE) 2HCJ 2018 FUEL TANK Diagram
#
Description
Price
3
BRACKET, FUEL PUMP
3B4-24491-00-00
Unavailable
6
PIPE, FUEL 1
2HC-13971-02-00
Unavailable
8
CLAMP
90464-15007-00
Unavailable
11
HOSE
90445-09833-00
Unavailable
17
TUBE
2HC-F510T-00-00
Unavailable
19
CLAMP
90464-12830-00
Unavailable
20
CAP ASSY
BVG-24610-00-00
Unavailable
21
GROMMET
90480-18016-00
Unavailable
22
COLLAR
90387-07021-00
Unavailable
23
BOLT, FLANGE
95817-06030-00
Unavailable
24
GROMMET(38W)
90480-01400-00
Unavailable
25
COLLAR(2UJ)
90387-061V1-00
Unavailable
26
WASHER (23T)
90201-065G8-00
Unavailable
27
BOLT, FLANGE
95817-06030-00
Unavailable
28
DAMPER, PLATE 1
2HC-F414H-00-00
Unavailable
29
DAMPER, LOCATING 1
2HC-F4181-00-00
Unavailable
30
DAMPER, LOCATING 2
2MB-F4182-00-00
Unavailable
31
ROLL OVER VALVE ASSY
5RB-24180-00-00
Unavailable
32
ROLL OVER VALVE ASSY
3UH-24180-00-00
Unavailable
33
CLAMP
90464-15014-00
Unavailable
34
SCREW, BINDING
98907-05012-00
Unavailable
35
BRACKET, CANISTOR
2HC-F419F-00-00
Unavailable
36
BOLT, FLANGE
95817-06012-00
Unavailable
