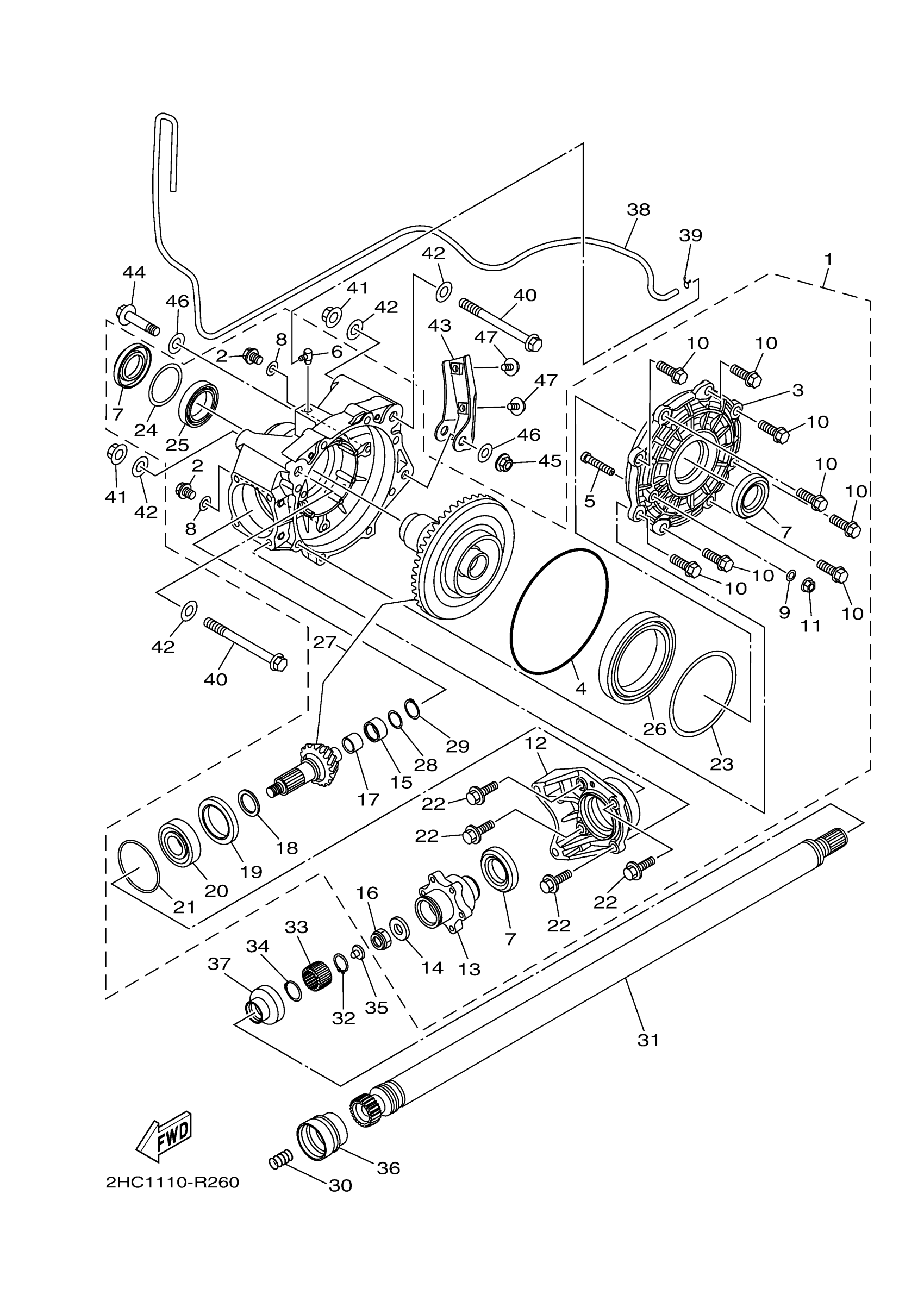

Yamaha YXZ10YMSJL (YXZ1000R EPS SE) 2HCJ 2018 DRIVE SHAFT Diagram
#
1
REAR AXLE GEAR CAS
B5H-G6101-00-00
Unavailable
2
BOLT
1XD-E2228-00-00
$4.94
3
. HOUSING, BEARING
2HC-G6152-00-00
Unavailable
4
O-RING
2HC-G613A-00-00
$14.49
5
STOPPER, RING GEAR
2HC-G6156-00-00
$20.99
6
. BREATHER
1CT-E5371-00-00
Unavailable
7
OIL SEAL
1XD-E511B-00-00
$8.49
8
GASKET
1CT-E1195-00-00
$6.99
9
GASKET
1CT-G6819-00-00
$3.59
10
. BOLT
2HC-E2157-00-00
Unavailable
11
. NUT, ADJUSTING
1CT-E3275-00-00
Unavailable
12
COVER
2HC-G2134-00-00
$178.99
13
COUPLING
2HC-G6126-00-00
$195.99
14
WASHER
2HC-G5677-00-00
$18.99
15
BEARING 1
1XD-E1428-00-00
$20.99
16
NUT
2HC-G7579-00-00
Unavailable
17
CLIP
1XD-G5319-00-00
Unavailable
18
WHEEL, SPROCKET 1
1XD-G7531-00-00
Unavailable
19
NUT
2HC-G4583-00-00
Unavailable
20
BEARING
93306-30574-00
Unavailable
21
OIL RING, PISTON
1XD-E1614-00-00
Unavailable
22
. BOLT, LOCK PLATE
1XD-G2478-00-00
Unavailable
23
. SHIM
2HC-G5567-00-00
Unavailable
24
SHIM
1XD-G5577-00-00
Unavailable
25
BEARING
1XD-E7051-00-00
Unavailable
26
BEARING 2
2HC-E1429-00-00
Unavailable
27
. RING GEAR SET
2HC-G61A0-00-00
Unavailable
28
WASHER,LOCK
2HC-F2149-00-00
Unavailable
29
RING,RETAINER
2HC-F5841-00-00
Unavailable
30
SPRING, COMPRESSION (400)
90501-20361-00
Unavailable
31
SHAFT, DRIVE
2HC-46172-10-00
Unavailable
32
CIRCLIP(1EY)
99009-22400-00
Unavailable
33
COUPLING
2HC-46126-00-00
Unavailable
34
CIRCLIP (30X)
93410-26067-00
Unavailable
35
DAMPER
5KM-46559-00-00
Unavailable
36
SEAL 2
2HC-46137-01-00
Unavailable
37
SEAL 1
2HC-46136-00-00
Unavailable
38
HOSE (L1700)
90445-070G6-00
Unavailable
39
CLIP (1J7)
90467-07029-00
Unavailable
40
BOLT, FLANGE
95812-12130-00
Unavailable
41
NUT, SELF-LOCKING
90185-12002-00
Unavailable
42
YBS66-12 WASHER,PLAIN
92990-12200-00
Unavailable
43
BRKT., RR. AXLE
2HC-F1981-03-00
Unavailable
44
BOLT, FLANGE
90105-12082-00
Unavailable
45
NUT, SELF-LOCKING
90185-12002-00
Unavailable
46
YBS66-12 WASHER,PLAIN
92990-12200-00
Unavailable
47
BOLT, FLANGE
95812-10016-00
Unavailable
