- YXZ10YMSHB (YXZ1000R EPS SPECIAL EDITION) 2HCE 2017
TRANSFER

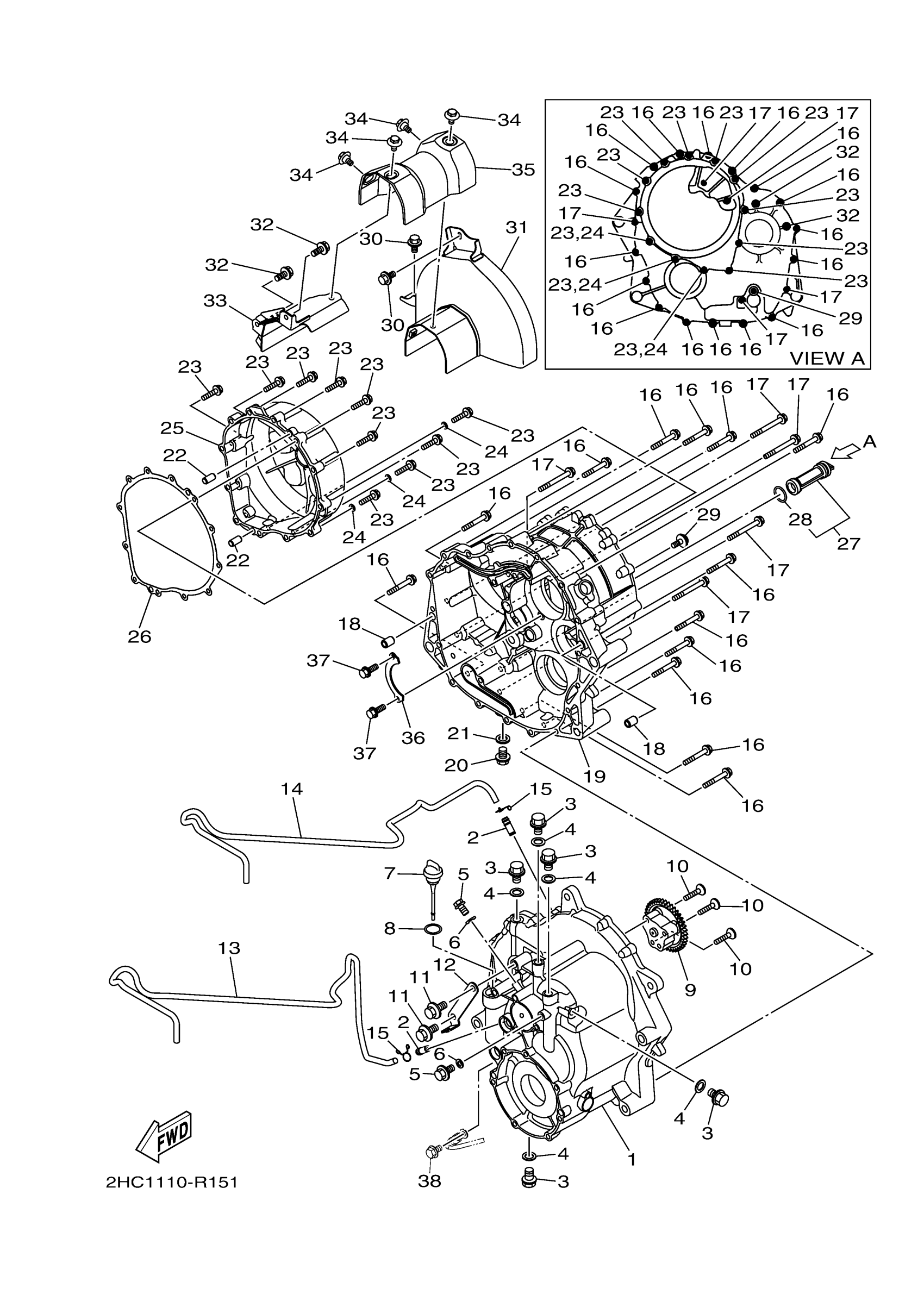

Yamaha YXZ10YMSHB (YXZ1000R EPS SPECIAL EDITION) 2HCE 2017 TRANSFER Diagram
#
1
CASE, TRANSFER 1
2HC-17541-00-00
Unavailable
2
. CONNECTOR, SUCTION PIPE
137-13115-01-00
Unavailable
3
PLUG STRAIGTSCREW 367185880000
90340-10003-00
$8.49
4
GASKET (1KH,1.0T)
90430-10148-00
$5.60
5
BOLT, FLANGE
95022-06010-00
$5.60
6
GASKET 256113960000
90430-06014-00
Unavailable
7
PLUG, OIL LEVEL
18G-15362-00-00
$25.99
8
O-RING
93210-21190-00
$7.49
9
OIL PUMP ASSY
2HC-17880-00-00
$70.99
10
SCREW, FLAT HEAD
98702-06030-00
$3.98
11
BOLT, FLANGE
95814-08016-00
$9.49
12
PLATE 1
2HC-17665-00-00
Unavailable
13
HOSE (L1140)
90445-08040-00
Unavailable
14
HOSE (L1040)
90445-08041-00
Unavailable
15
CLIP (16G)
90467-08021-00
$8.49
16
BOLT, FLANGE
95022-06045-00
Unavailable
17
BOLT, FLANGE
95022-06060-00
Unavailable
18
PIN, DOWEL(3VD)
99530-10114-00
Unavailable
19
CASE, TRANSFER 2
2HC-17542-00-00
Unavailable
20
PLUG, STRAIGHT SCREW
90340-12006-00
Unavailable
21
GASKET(3FD)
90430-12213-00
Unavailable
22
PIN, DOWEL(3XW)
91808-16023-00
Unavailable
23
BOLT, FLANGE
95022-06030-00
Unavailable
24
GASKET 256113960000
90430-06014-00
Unavailable
25
COVER, 1
2HC-15415-00-00
Unavailable
26
GASKET
2HC-15453-00-00
Unavailable
27
STRAINER, OIL
2HC-13411-00-00
Unavailable
28
O-RING
93210-20802-00
Unavailable
29
SCREW, WITH WASHER
90159-06021-00
Unavailable
30
BOLT, WITH WASHER
90119-06242-00
Unavailable
31
COVER, SHAFT 1
2HC-2147J-00-00
Unavailable
32
BOLT, WITH WASHER
90119-06242-00
Unavailable
33
COVER, SHAFT 2
2HC-2147K-00-00
Unavailable
34
BOLT
90109-06202-00
Unavailable
35
COVER PLATE COMP.
2HC-2131P-00-00
Unavailable
36
PLATE, BEARING
2HC-17558-00-00
Unavailable
37
BOLT, FLANGE
95022-06016-00
Unavailable
38
BOLT, FLANGE
95880-06012-00
Unavailable
