Description

Price

1

STOPPER, SCREW

5VK-18127-00-00

Unavailable

2

SHIFT SHAFT ASSY

2HC-18101-00-00

$63.99

3

SPRING, TORSION

90508-32021-00

$5.49

4

CIRCLIP

99002-10600-00

$8.49

5

WASHER, PLATE (5N6)

90201-127E1-00

$4.29

6

WASHER, PLATE (5N6)

90201-127E1-00

$4.29

7

OIL SEAL (4G0)

93102-12224-00

$10.49

8

WASHER, PLATE (353)

90201-12575-00

$8.49

9

CIRCLIP

99002-10600-00

$8.49

10

LEVER COMP. 1

2HC-18190-01-00

$88.99

11

COLLAR

90387-08107-00

$13.99

12

BUSH, SOLID

90381-15001-00

$5.60

13

BOLT, FLANGE

95817-08050-00

$2.44

14

NUT, SELF-LOCKING

95602-08200-00

$3.20

15

KNOB, SHIFT LEVER

2HC-E8174-00-00

Unavailable

16

RIVET(81E)

90269-05055-00

Unavailable

17

ROD, SHIFT

2HC-18115-01-00

Unavailable

18

NUT(1KT)

90170-08358-00

Unavailable

19

. NUT

95380-08700-00

Unavailable

20

ARM, SHIFT 2

2HC-18169-00-00

Unavailable

21

BOLT, FLANGE

90105-06142-00

Unavailable

22

GUIDE, SHIFT

2HC-E8172-00-00

Unavailable

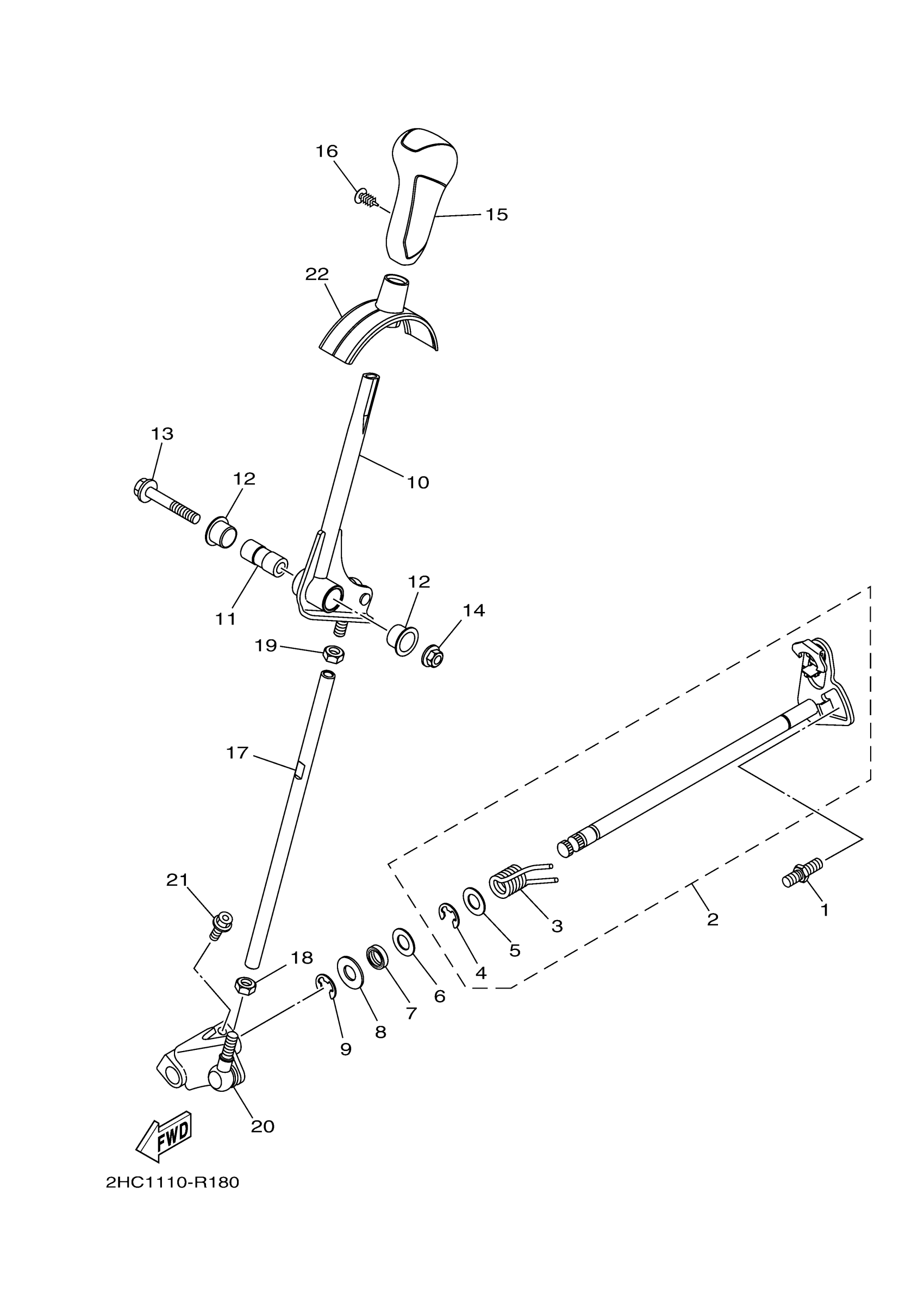

Yamaha YXZ10YMSHB (YXZ1000R EPS SPECIAL EDITION) 2HCE 2017 SHIFT SHAFT Diagram

STOPPER, SCREW

SHIFT SHAFT ASSY

SPRING, TORSION

CIRCLIP

WASHER, PLATE (5N6)

WASHER, PLATE (5N6)

OIL SEAL (4G0)

WASHER, PLATE (353)

CIRCLIP

LEVER COMP. 1

COLLAR

BUSH, SOLID

BOLT, FLANGE

NUT, SELF-LOCKING

KNOB, SHIFT LEVER

RIVET(81E)

ROD, SHIFT

NUT(1KT)

. NUT

ARM, SHIFT 2

BOLT, FLANGE

GUIDE, SHIFT
