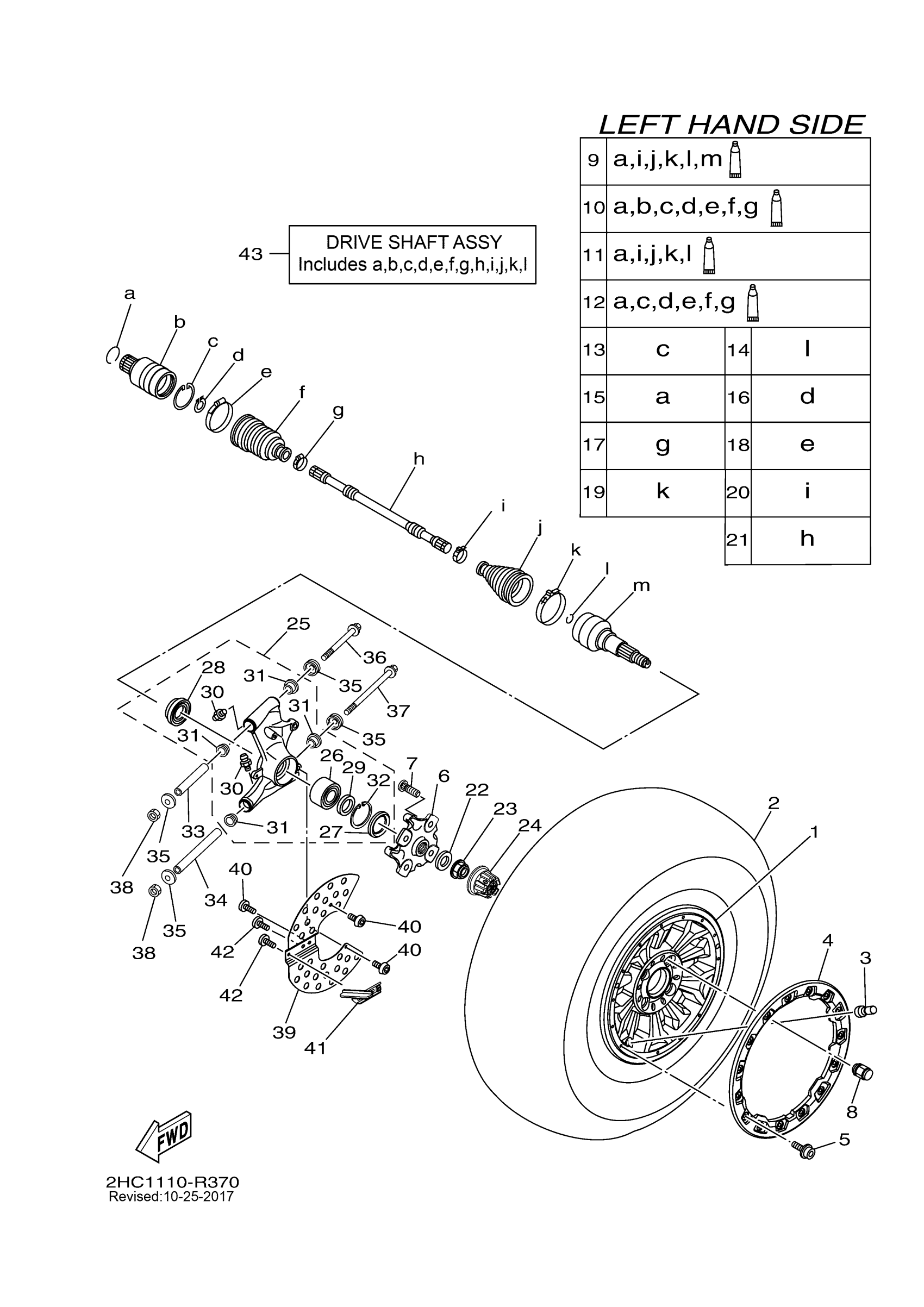

Yamaha YXZ10YMSHB (YXZ1000R EPS SPECIAL EDITION) 2HCE 2017 REAR WHEEL Diagram

#

Description
Price

1

CAST WHEEL, REAR

2HC-F5307-51-00

$446.99

2

TIRE (27X11.00R14 MU10 6PR TL)

94111-14802-00

Unavailable

3

VALVE, RIM

93900-00812-00

Unavailable

4

PLATE,LOCK

2HC-F4658-10-00

$191.99

5

BOLT, FLANGE

90105-068C3-00

$2.92

6

HUB, FRONT

2HC-F5111-02-00

Unavailable

7

BOLT, SERRATION

90114-12005-00

$2.97

8

NUT, CROWN

90176-12800-00

$7.49

9

BALL JOINT SET

2HC-2530T-12-00

Unavailable

10

DOUBLE OFF SET JOINT

2HC-2530V-00-00

$426.99

11

BOOT SET (BALL JOINT)

2HC-2530X-13-00

$49.99

12

BOOT SET(DOUBLE OFFSET JOINT)

2HC-2530Y-01-00

$53.99

13

CLIP, SPRING

2HC-2536E-00-00

$4.99

14

RING 1

16B-25185-00-00

$4.94

15

CLIP, SPRING

16B-2536E-00-00

$4.63

16

SNAP RING

2HC-2512J-00-00

Unavailable

17

BAND

2HC-25719-00-00

Unavailable

18

BAND

2HC-26293-00-00

Unavailable

19

BOOT BAND (SMALL)

2HC-2512G-10-00

Unavailable

20

BAND

2HC-26397-00-00

Unavailable

21

SHAFT

2HC-259A2-00-00

Unavailable

22

WASHER, PLATE

90201-25023-00

Unavailable

23

NUT

90179-24006-00

Unavailable

24

CAP, WHEEL

2HC-F512A-00-00

Unavailable

25

REAR KNUCKLE ASSY

2HC-F530F-02-00

Unavailable

26

BEARING

93305-00603-00

Unavailable

27

OIL SEAL

93106-42801-00

Unavailable

28

OIL SEAL

93106-38800-00

Unavailable

29

COLLAR

90387-30013-00

Unavailable

30

NIPPLE, GREASE

93700-06M03-00

Unavailable

31

BUSH, SOLID(2NL)

90381-17067-00

Unavailable

32

CIRCLIP (70R)

93420-72065-00

Unavailable

33

COLLAR

90387-12060-00

Unavailable

34

COLLAR

90387-12061-00

Unavailable

35

COVER, THRUST 1

1XD-23517-01-00

Unavailable

36

BOLT, FLANGE

90105-12066-00

Unavailable

37

BOLT, FLANGE

90105-12097-00

Unavailable

38

NUT, SELF-LOCKING

90185-12007-00

Unavailable

39

RING, WHEEL RR. 1

2HC-F534C-00-00

Unavailable

40

BOLT,HEX. SOCKET BUTTON

90111-06096-00

Unavailable

41

PLATE, GUIDE 1

2HC-F2341-00-00

Unavailable

42

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

43

REAR DRIVE SHAFT A

2HC-2531H-13-00

Unavailable
