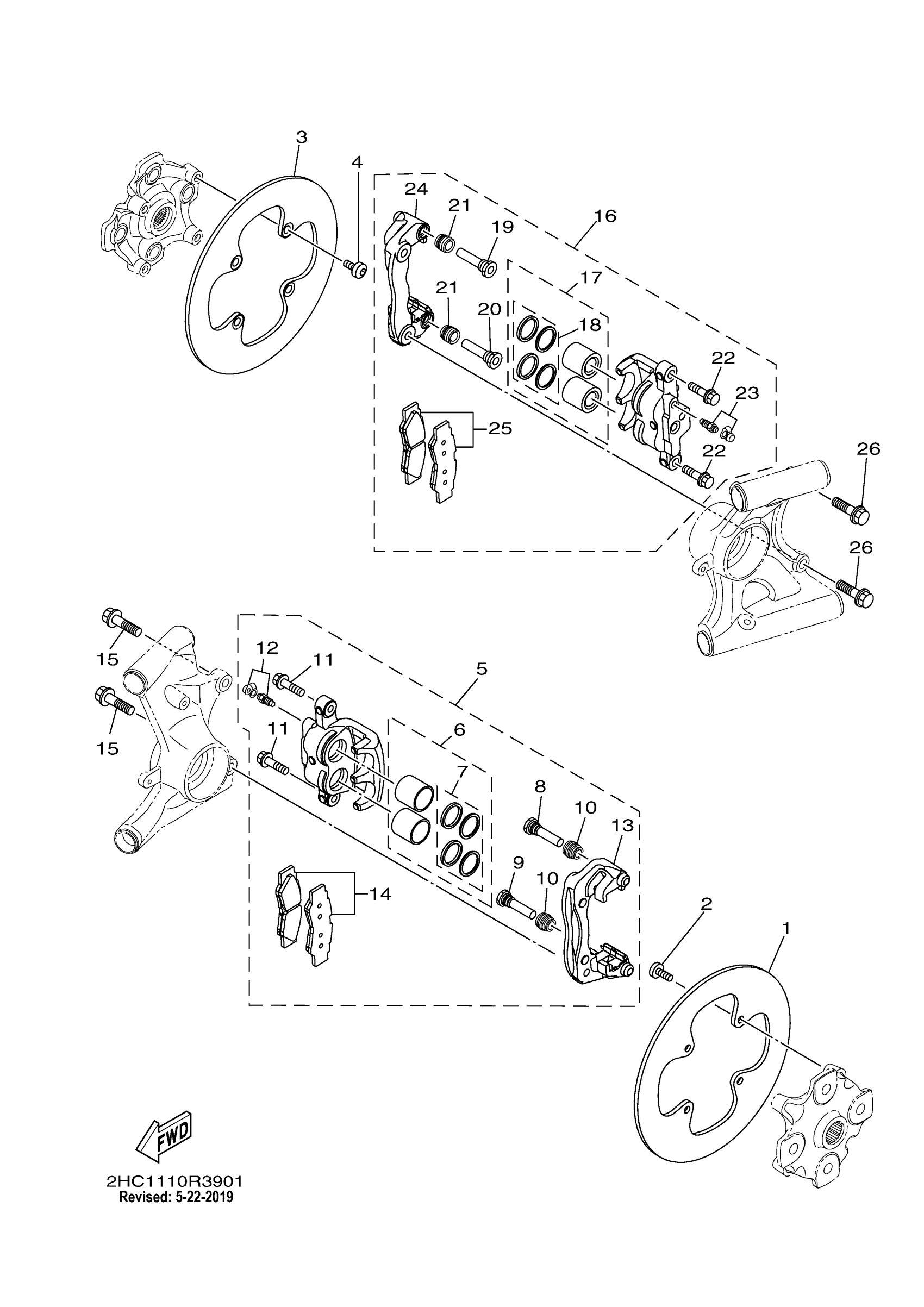

Yamaha YXZ10YMSHB (YXZ1000R EPS SPECIAL EDITION) 2HCE 2017 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (LEFT)

2HC-F582T-00-00

$52.60

2

BOLT

90109-08077-00

$2.69

3

DISC, BRAKE (LEFT)

2HC-F582T-00-00

$52.60

4

BOLT

90109-08077-00

$2.69

5

CALIPER ASSY, REAR 1

2HC-2580V-00-00

$346.78

6

PISTON ASSY, CALIPER

3LD-25802-00-00

$45.39

7

CALIPER SEAL KIT

3JD-25803-00-00

$17.39

8

BOLT

2HC-25926-00-00

Unavailable

9

BOLT

2HC-25926-10-00

Unavailable

10

BOOT, CALIPER

2HC-25917-00-00

$3.63

11

BOLT, FITTING

2HC-25833-00-00

$1.78

12

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

13

BRACKET, SUPPORT

2HC-25921-00-00

$77.80

14

BRAKE PAD KIT 2

2HC-25806-00-00

$54.99

15

BOLT, FLANGE

90105-10405-00

$4.40

16

CALIPER ASSY, REAR 2

2HC-2580W-00-00

Unavailable

17

PISTON ASSY, CALIPER

3LD-25802-00-00

$45.39

18

CALIPER SEAL KIT

3JD-25803-00-00

$17.39

19

BOLT

2HC-25926-00-00

Unavailable

20

BOLT

2HC-25926-10-00

Unavailable

21

BOOT, CALIPER

2HC-25917-00-00

$3.63

22

BOLT, FITTING

2HC-25833-00-00

$1.78

23

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

24

BRACKET, SUPPORT

2HC-25921-00-00

$77.80

25

BRAKE PAD KIT 2

2HC-25806-00-00

$54.99

26

BOLT, FLANGE

90105-10405-00

$4.40
