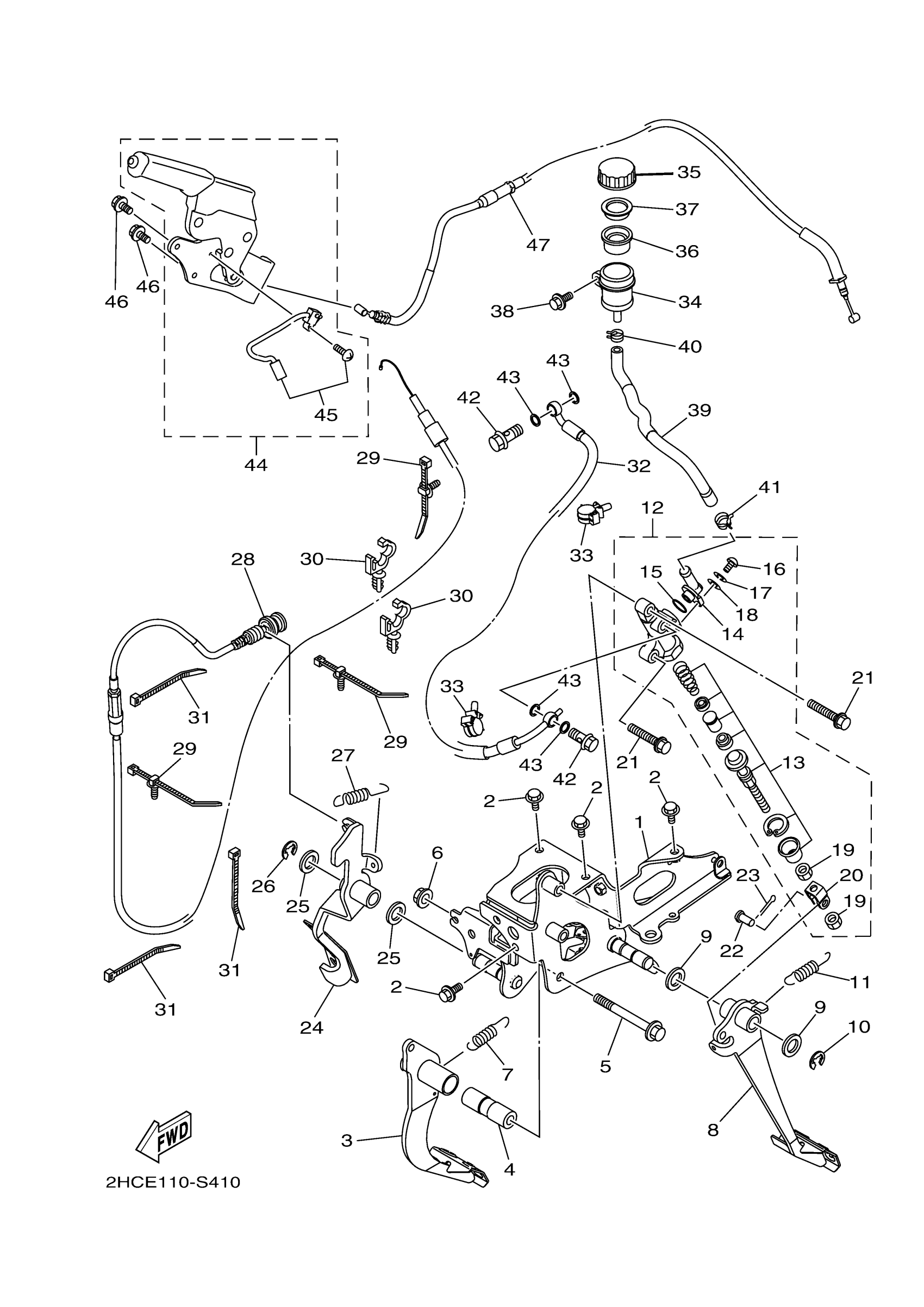

Yamaha YXZ10YMSHB (YXZ1000R EPS SPECIAL EDITION) 2HCE 2017 PEDAL WIRE Diagram

#

Description
Price

1

BRACKET,PEDL SUPRT

2HC-F2548-11-00

$100.99

2

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

3

PEDAL, BRAKE

2HC-F7200-00-00

Unavailable

4

COLLAR

90387-10843-00

Unavailable

5

95812-10090

95812-10090-00

$2.70

6

NUT, S/L FLANGE

95602-10200-00

$4.82

7

SPRING, TENSION (2X4)

90506-20192-00

$7.49

8

SHIFT PEDAL ASSY

2HC-E8110-00-00

$28.99

9

WASHER, PLATE

90201-15018-00

$7.49

10

CIRCLIP (122)

93430-12008-00

$8.49

11

SPRING, TENSION (2X4)

90506-20192-00

$7.49

12

MASTER CYLINDER ASSY (CLUTCH)

2HC-26450-00-00

$135.99

13

CYLINDER KIT, MASTER

2HC-25808-00-00

Unavailable

14

JOINT

1AE-2582A-00-00

Unavailable

15

O-RING (22U)

93210-15566-00

$7.49

16

SCREW, PAN HEAD

98511-04012-00

Unavailable

17

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

18

WASHER, PLAIN (646)

92990-04600-00

Unavailable

19

NUT, HEXAGON SMALL

95317-08700-00

Unavailable

20

JOINT

2YK-27222-00-00

Unavailable

21

BOLT, FLANGE

95817-08050-00

Unavailable

22

PIN, CLEVIS

90240-08005-00

Unavailable

23

PIN, COTTER

91490-20025-00

Unavailable

24

ACCEL PEDAL ASSY

2HC-F7801-01-00

Unavailable

25

WASHER, PLATE

90201-15018-00

$7.49

26

CIRCLIP (122)

93430-12008-00

$8.49

27

SPRING, TENSION (2X4)

90506-20192-00

$7.49

28

WIRE, THROTTLE 1

2HC-26311-13-00

Unavailable

29

CLAMP

5B4-F1338-00-00

Unavailable

30

CLAMP

90464-12830-00

Unavailable

31

CLAMP

90464-48800-00

Unavailable

32

HOSE, CLUTCH 1

2HC-F6472-00-00

Unavailable

33

CLAMP

90464-16012-00

Unavailable

34

TANK, RESERVOIR

5JJ-25894-01-00

Unavailable

35

CAP, RESERVOIR

3XP-25852-50-00

Unavailable

36

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

Unavailable

37

BUSH,DIAPHRAGM

2VN-25855-00-00

Unavailable

38

BOLT, WITH WASHER

90119-06137-00

Unavailable

39

HOSE, RESERVOIR

2HC-F5895-00-00

Unavailable

40

CLIP (7K7)

90467-11044-00

Unavailable

41

CLIP (5K4)

90467-14057-00

Unavailable

42

BOLT, UNION

90401-10015-00

Unavailable

43

WASHER, PLATE(481)

90201-10118-00

Unavailable

44

PARKING LEVER ASSY

BDW-F5690-00-00

Unavailable

45

. SWITCH COMP

5UG-H251S-00-00

Unavailable

46

BOLT, FLANGE

95817-06012-00

Unavailable

47

WIRE, BRAKE 1

2HC-26341-01-00

Unavailable
