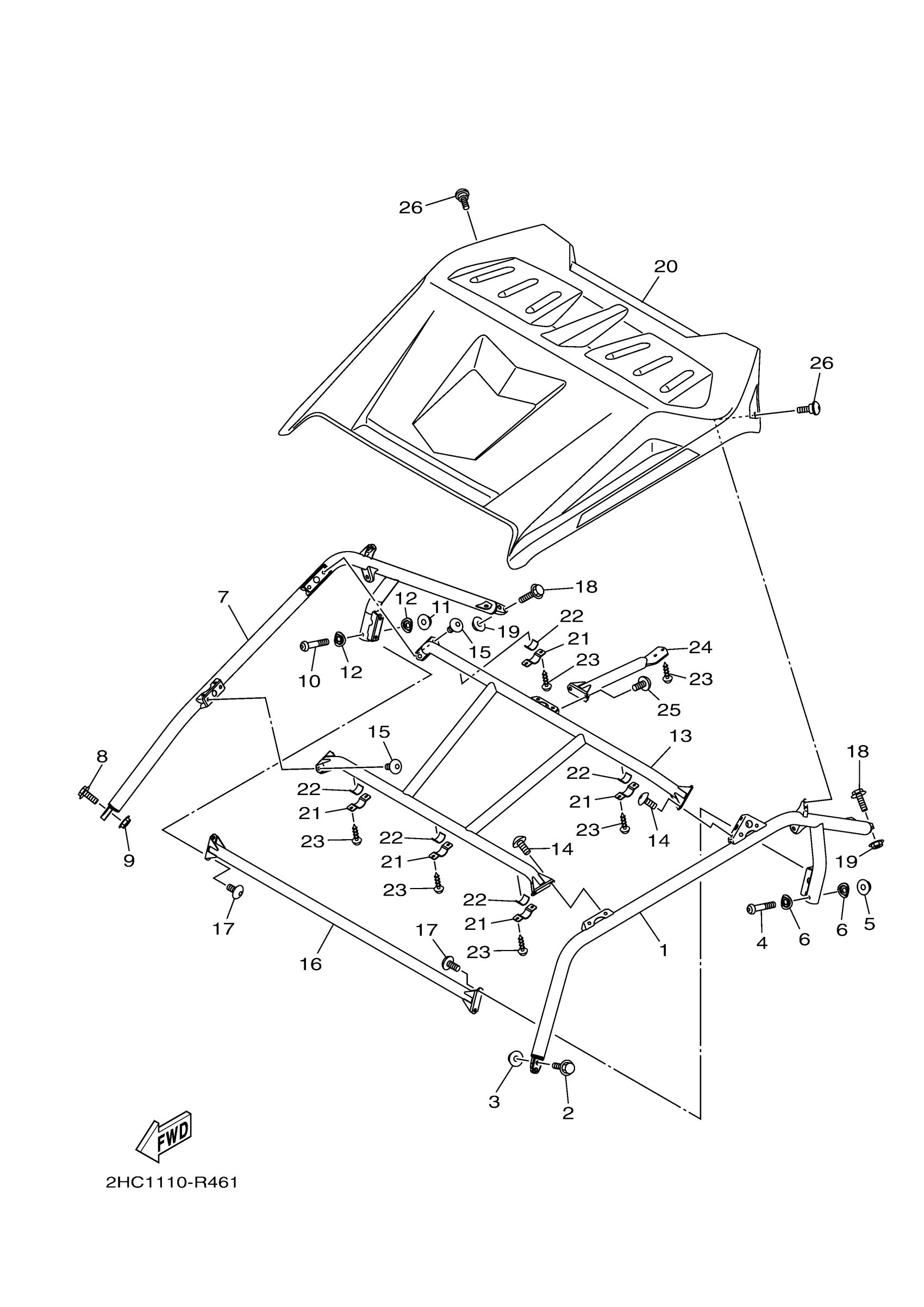

Yamaha YXZ10YMSHB (YXZ1000R EPS SPECIAL EDITION) 2HCE 2017 GUARD 2 Diagram

#

Description
Price

1

SUPPORT, ROOF 3

2HC-K831A-30-00

Unavailable

2

BOLT, FLANGE (8V9)

95812-10045-00

$4.19

3

NUT, SELF-LOCKING

90185-10011-00

$5.60

4

BOLT, BUTTON HEAD

92012-10060-00

$3.13

5

NUT, SELF-LOCKING

90185-10011-00

$5.60

6

WASHER 2

5UG-K7526-00-00

$5.49

7

SUPPORT, ROOF 4

2HC-K831E-30-00

$211.99

8

BOLT, FLANGE (8V9)

95812-10045-00

$4.19

9

NUT, SELF-LOCKING

90185-10011-00

$5.60

10

BOLT, BUTTON HEAD

92012-10060-00

$3.13

11

NUT, SELF-LOCKING

90185-10011-00

$5.60

12

WASHER 2

5UG-K7526-00-00

$5.49

13

MEMBER, ROOF FRAME

2HC-K8392-30-00

Unavailable

14

BOLT,HEX. SOCKET B

90111-10802-00

$5.60

15

BOLT,HEX. SOCKET B

90111-10802-00

$5.60

16

ROOF SUPPORT ASSY

2HC-K830A-30-00

Unavailable

17

BOLT,HEX. SOCKET B

90111-10802-00

$5.60

18

BOLT, FLANGE (8V9)

95812-10045-00

$4.19

19

NUT, SELF-LOCKING

90185-10011-00

$5.60

20

COVER, SUN ROOF

2HC-K8314-00-00

Unavailable

21

CLAMP,SUPPORT

2HC-K8366-01-00

Unavailable

22

DAMPER

5UG-K7588-01-00

Unavailable

23

SCREW, TAPPING

90167-06800-00

Unavailable

24

ROOF SUPPORT ASSY

2HC-K830B-30-00

Unavailable

25

BOLT,HEX. SOCKET B

90111-10802-00

$5.60

26

BOLT

90109-06253-00

Unavailable
