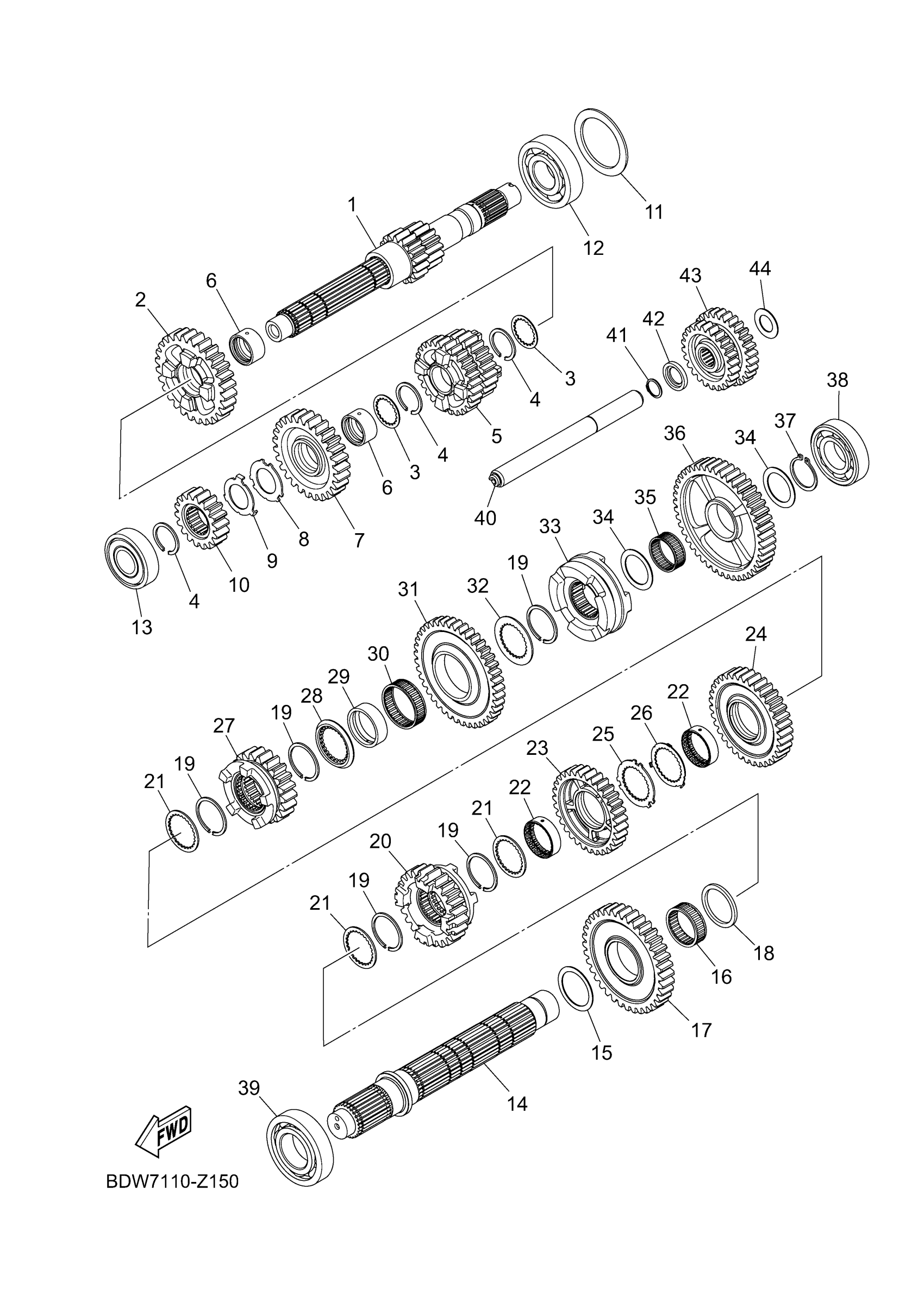

Yamaha YXZ10YEZSB (YXZ1000R SS XT R) BDWD 2025 TRANSMISSION Diagram

#

Description
Price

1

MAIN AXLE ASSY

BDW-17401-00-00

$663.99

2

GEAR, 6TH PINION (28T)

BDW-17161-00-00

$140.19

3

WASHER

90209-25011-00

$6.74

4

CIRCLIP

93440-28184-00

$3.46

5

GEAR, 3RD PINION (24T/28T)

BDW-17131-00-00

$190.45

6

COLLAR

90387-25023-00

$33.63

7

GEAR, 5TH PINION (27T)

BDW-17151-00-00

$117.40

8

WASHER, CLAW

90214-25004-00

$6.75

9

WASHER, CLAW

90214-25003-00

$6.76

10

GEAR, 2ND PINION (18T)

BDW-17121-00-00

$76.27

11

WASHER, PLATE

90201-51013-00

$11.31

12

BEARING

93306-37817-00

$60.03

13

BEARING

93306-37215-00

$39.51

14

AXLE, DRIVE

BDW-17421-00-00

$205.58

15

WASHER, PLATE

90201-35018-00

$5.28

16

BEARING

93310-33599-00

Unavailable

17

GEAR, 2ND WHEEL (36T)

BDW-17221-00-00

Unavailable

18

WASHER, PLATE

90201-35015-00

$3.50

19

CIRCLIP (371)

93440-34025-00

Unavailable

20

GEAR, 5TH WHEEL (24T)

BDW-17251-00-00

Unavailable

21

WASHER

90209-33008-00

Unavailable

22

COLLAR

90387-32008-00

Unavailable

23

GEAR, 4TH WHEEL (31T)

BDW-17241-00-00

Unavailable

24

GEAR, 3RD WHEEL (35T)

BDW-17231-00-00

Unavailable

25

WASHER, CLAW

90214-33002-00

$8.27

26

WASHER, CLAW

90214-33003-00

$9.85

27

GEAR, 6TH WHEEL (21T)

BDW-17261-00-00

Unavailable

28

RETAINER

BDW-18658-00-00

Unavailable

29

RACE, INNER

BDW-46122-00-00

Unavailable

30

BEARING

93310-340C1-00

Unavailable

31

GEAR, REVERSE WHEEL 2 (41T)

BDW-17253-00-00

Unavailable

32

WASHER, CLAW

90214-33004-00

$5.72

33

CLUTCH, DOG

BDW-17285-00-00

Unavailable

34

WASHER, PLATE

90201-30018-00

$3.55

35

BEARING

93310-330S2-00

Unavailable

36

GEAR, 1ST WHEEL (45T)

BDW-17211-00-00

Unavailable

37

CIRCLIP(4A6)

99009-30400-00

Unavailable

38

BEARING

93306-20664-00

Unavailable

39

BEARING

93306-20726-00

Unavailable

40

AXLE, IDLE

BDW-17432-00-00

Unavailable

41

CIRCLIP (525)

93410-17037-00

Unavailable

42

RETAINER, SPRING

2HC-18473-00-00

Unavailable

43

REVERSE WHEEL ASSY (24T/28T)

BDW-1724A-00-00

Unavailable

44

WASHER PLATE 306155610000

90201-17257-00

Unavailable
