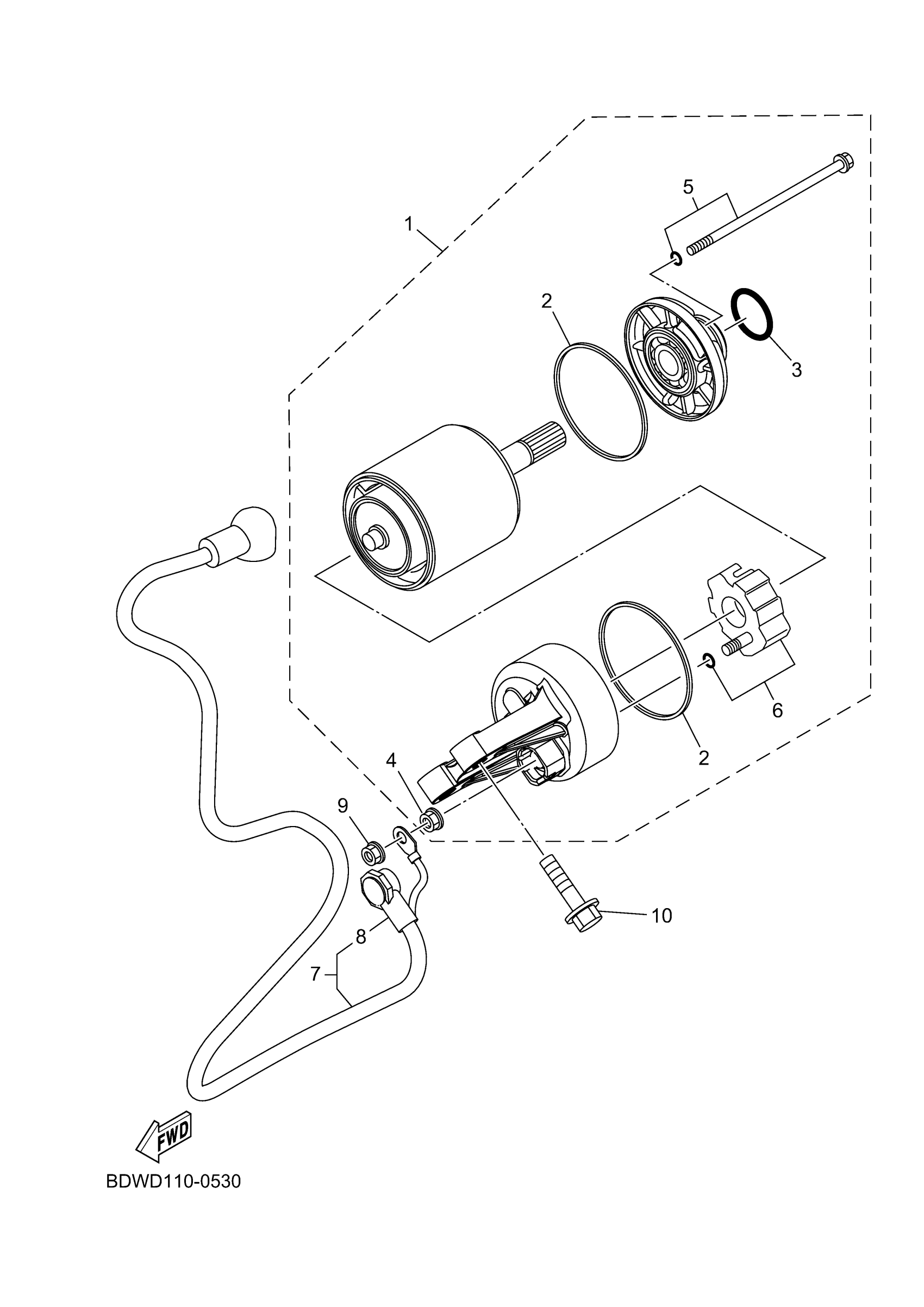

Yamaha YXZ10YEZSB (YXZ1000R SS XT R) BDWD 2025 STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY

2HC-81890-01-00

$285.93

2

GASKET

35C-81844-00-00

Unavailable

3

O-RING (437)

93210-24235-00

$5.34

4

NUT

4XV-8182A-00-00

$5.86

5

BOLT

28P-81826-00-00

Unavailable

6

BRUSH HOLDER ASSY

4B5-81840-00-00

$94.12

7

CORD, STARTER MOTOR

2HC-81815-01-00

Unavailable

8

CAP

4B5-81871-00-00

Unavailable

9

NUT

4XV-8182A-00-00

$5.86

10

BOLT, FLANGE

95812-08030-00

$3.01
