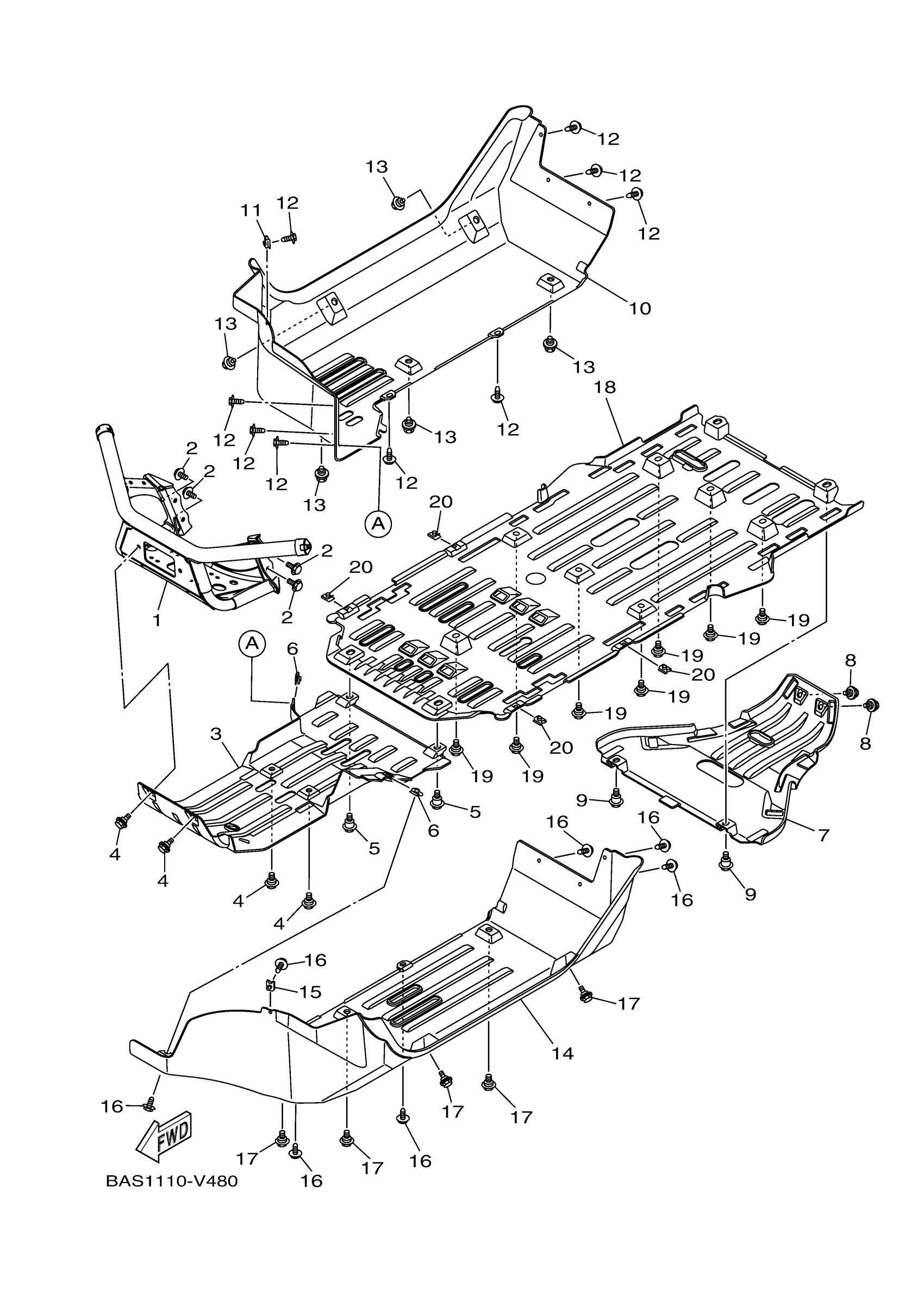

Yamaha YXZ10YEZSB (YXZ1000R SS XT R) BDWD 2025 GUARD Diagram

#

Description
Price

1

BAR, CARRY FRONT

BAS-F845N-00-00

$156.20

2

BOLT, FLANGE

95812-10016-00

$7.70

3

COVER, LOWER

2HC-F8385-01-00

$76.03

4

BOLT

90109-06202-00

$2.46

5

BOLT

90109-068A7-00

Unavailable

6

NUT, SPRING

90183-060A6-00

$3.90

7

COVER, UNDER

2HC-F2863-00-00

$102.25

8

BOLT

90109-06202-00

$2.46

9

BOLT

90109-068A7-00

Unavailable

10

GUARD 1

2HC-F2361-00-00

$103.71

11

NUT, SPRING

90183-062A1-00

$1.75

12

BOLT, WITH WASHER

90119-06226-00

$2.12

13

BOLT

90109-06202-00

$2.46

14

GUARD 2

2HC-F2362-00-00

$105.18

15

NUT, SPRING

90183-062A1-00

$1.75

16

BOLT, WITH WASHER

90119-06226-00

$2.12

17

BOLT

90109-06202-00

$2.46

18

GUARD, ENGINE 1

2HC-F8418-03-00

Unavailable

19

BOLT

90109-06202-00

$2.46

20

NUT, SPRING

90183-060A6-00

$3.90
