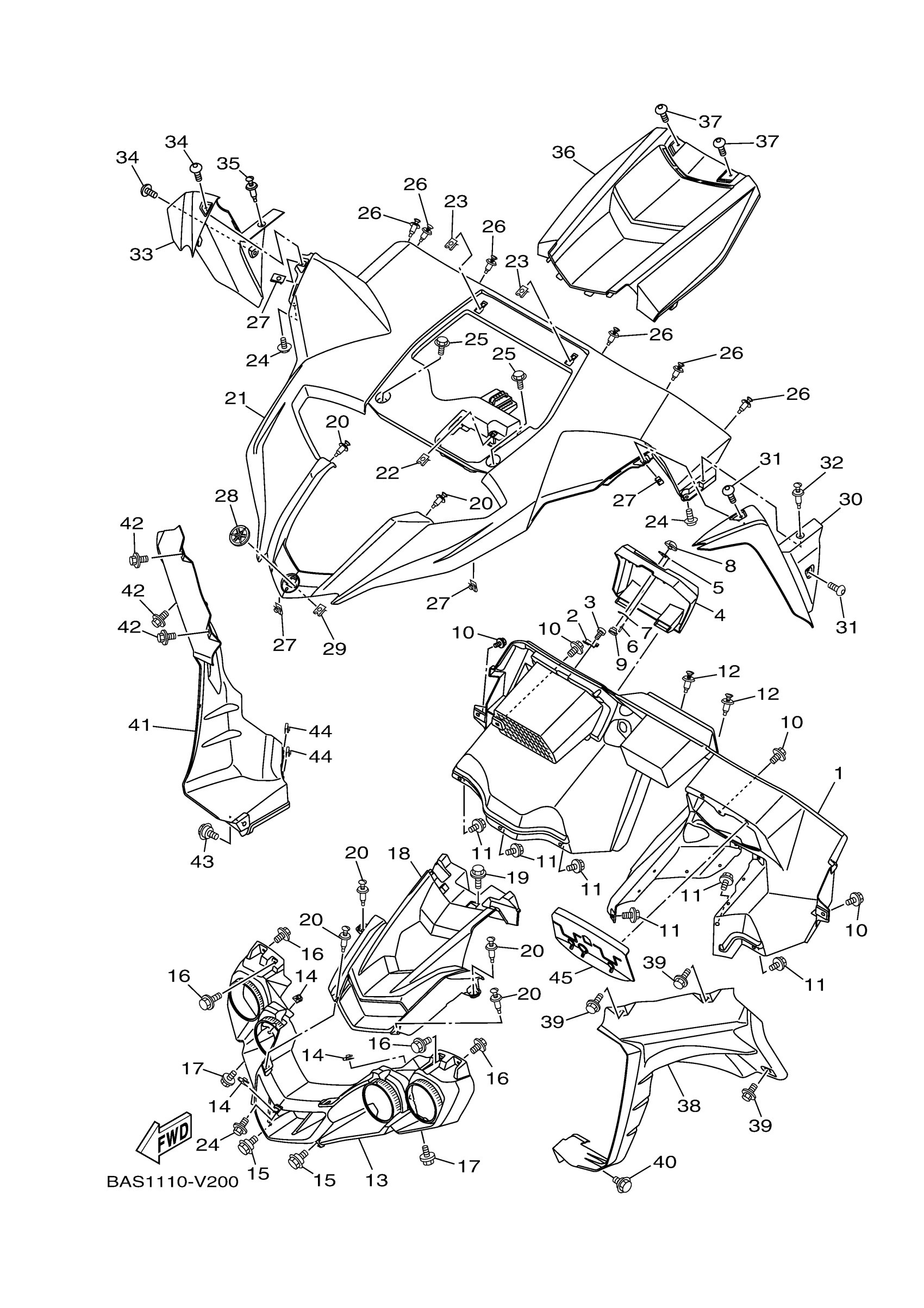

Yamaha YXZ10YEZSB (YXZ1000R SS XT R) BDWD 2025 FRONT FENDER Diagram
#
1
PANEL, INSTRUMENT
2HC-K7711-31-00
$198.99
2
BRACKET, COVER
B5H-F139T-00-00
$3.98
3
SCREW, TAPPING
90164-04800-00
Unavailable
4
LID
2HC-F160F-00-00
$49.99
5
WASHER, SPECIAL
1XD-F1515-00-00
Unavailable
6
RIVET, BLIND
90267-24143-00
$8.49
7
WASHER, SPECIAL 2
1XD-F1516-00-00
$1.92
8
LOCK 1
B5H-F837G-00-00
$2.22
9
LOCK 2
B5H-F837H-00-00
$1.81
10
BOLT,HEX SKT HEAD
90111-06814-00
$3.76
11
BOLT, WITH WASHER
90119-06226-00
$8.49
12
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
13
GRILLE, FRONT
2HC-F8309-00-00
Unavailable
14
NUT, SPRING
90183-060A6-00
$5.49
15
BOLT
90109-06202-00
$7.49
16
BOLT, WITH WASHER
90119-06226-00
$8.49
17
BOLT, WITH WASHER
90119-06226-00
$8.49
18
COVER 1
BAS-F5715-40-00
Unavailable
19
BOLT, WITH WASHER
90119-06226-00
$8.49
20
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
21
FRONT FENDER COMP
2HC-F1510-A0-00
Unavailable
22
NUT, SPRING
90183-060A6-00
$5.49
23
NUT, SPRING
90183-060A6-00
$5.49
24
BOLT, WITH WASHER
90119-06226-00
$8.49
25
BOLT, WITH WASHER
90119-06226-00
$8.49
26
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
27
NUT, SPRING
90183-060A6-00
$5.49
28
TUNING FORK MARK
1XD-F175B-01-00
Unavailable
29
NUT, SPRING
90183-06071-00
Unavailable
30
FLAP, FRONT FENDER
2HC-K8187-A0-00
Unavailable
31
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
32
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
33
FLAP, FRONT FENDER
2HC-K818K-A0-00
Unavailable
34
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
35
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
36
HOOD 2
BAS-F835F-40-00
Unavailable
37
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
38
COVER 1
2HC-E246A-00-00
Unavailable
39
BOLT, WITH WASHER
90119-06226-00
$8.49
40
BOLT
90109-06202-00
$7.49
41
COVER 2
2HC-E246E-00-00
Unavailable
42
BOLT, WITH WASHER
90119-06226-00
$8.49
43
BOLT
90109-06202-00
$7.49
44
NUT, SPRING
90183-060A6-00
$5.49
45
COVER, SEAL 3
2HC-F338G-00-00
Unavailable
