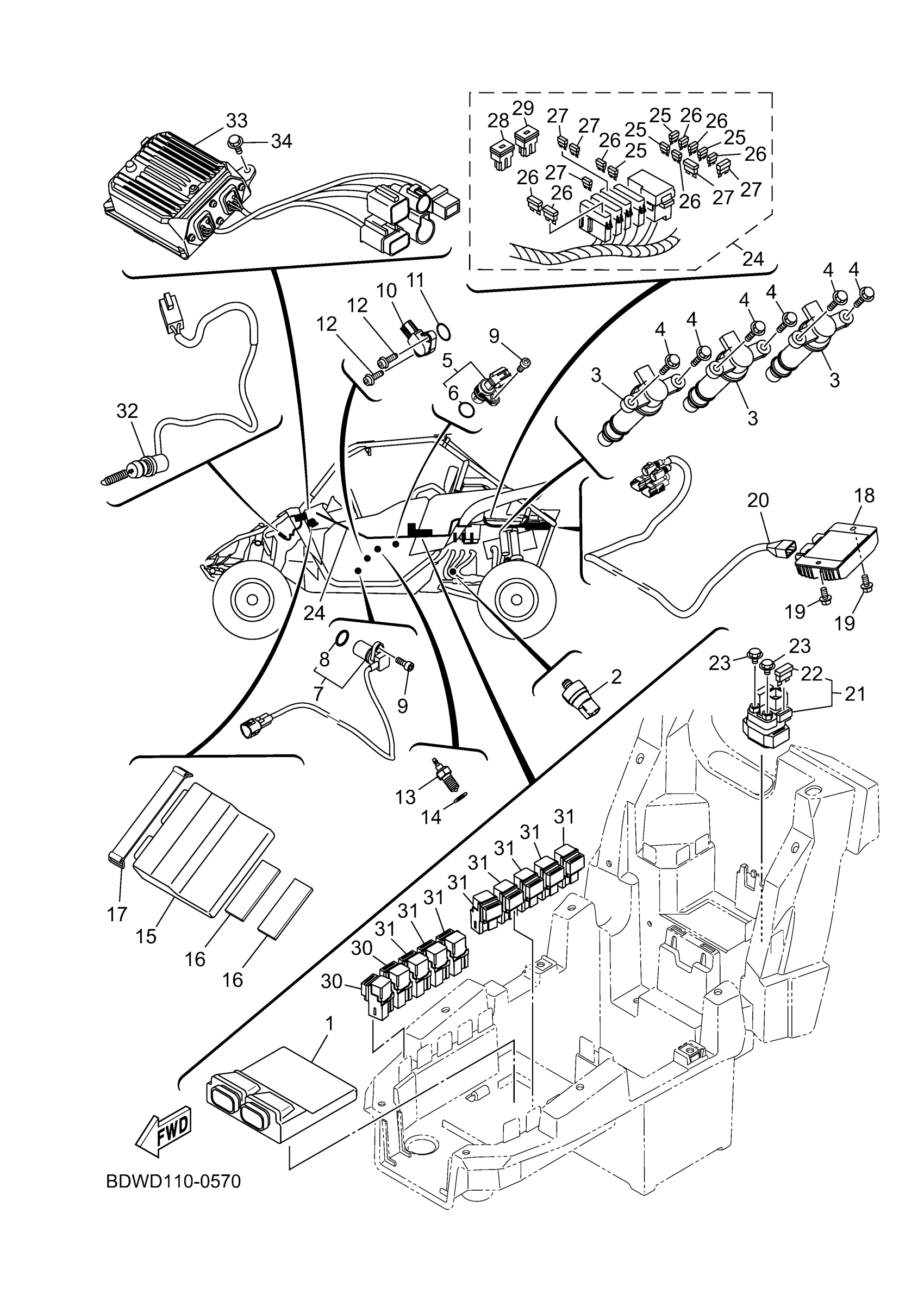

Yamaha YXZ10YEZSB (YXZ1000R SS XT R) BDWD 2025 ELECTRICAL 1 Diagram
#
1
ENGINE CONTROL UNIT ASSY
BDW-8591A-00-00
$242.99
2
OIL PRESSURE SWITCH
8FP-82504-01-00
$71.99
3
IGNITION COIL ASSY
2HC-82310-00-00
$117.99
4
BLOT, FLANGE DEEP RECESS
95D32-06025-00
$1.07
5
SENSOR, SPEED
1TP-83755-00-00
$77.99
6
O-RING
4D9-81168-00-00
$6.99
7
Sensor Speed
3D8-83755-01-00
Unavailable
8
O-RING
4D9-81168-00-00
$6.99
9
BOLT,SOCKET
91317-06016-00
$1.25
10
SENSOR, GEAR POSITION
BDW-85899-00-00
Unavailable
11
O-RING
93210-17008-00
Unavailable
12
BOLT, HEXAGON SOCKET HEAD
90110-05038-00
$7.49
13
NEUTRAL SWITCH ASSY
3GB-82540-01-00
$58.99
14
GASKET (1KH,1.0T)
90430-10148-00
$5.60
15
MOTOR CONTROL UNIT ASSY
BDW-86510-10-00
Unavailable
16
DAMPER
1HP-H2176-01-00
Unavailable
17
BAND, BATTERY
2T4-82131-00-00
Unavailable
18
GENERATOR CONTROL UNIT
BDW-81963-00-00
Unavailable
19
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
20
WIRE, SUB LEAD
BDW-82583-00-00
Unavailable
21
STARTER RELAY ASSY (RC19-077A)
4D3-81940-00-00
Unavailable
22
FUSE (12V 15A)
36Y-82151-00-00
Unavailable
23
BOLT, FLANGE
95022-06008-00
Unavailable
24
WIRE HARNESS ASSY
BDW-H2590-11-00
Unavailable
25
FUSE (15A)
67F-82151-50-00
Unavailable
26
. FUSE (10A)
67F-82151-40-00
Unavailable
27
FUSE
5JJ-82151-60-00
Unavailable
28
FUSE
BDW-82151-D0-00
Unavailable
29
FUSE
BDW-82151-A0-00
Unavailable
30
RELAY ASSY
5DM-81950-01-00
Unavailable
31
RELAY ASSY (8DM-11)
8DM-81950-11-00
Unavailable
32
STOP SWITCH ASSY
B90-82530-01-00
Unavailable
33
POWER STRG. CONT.
B5H-859A0-01-00
Unavailable
34
BOLT, FLANGE
95817-06016-00
Unavailable
