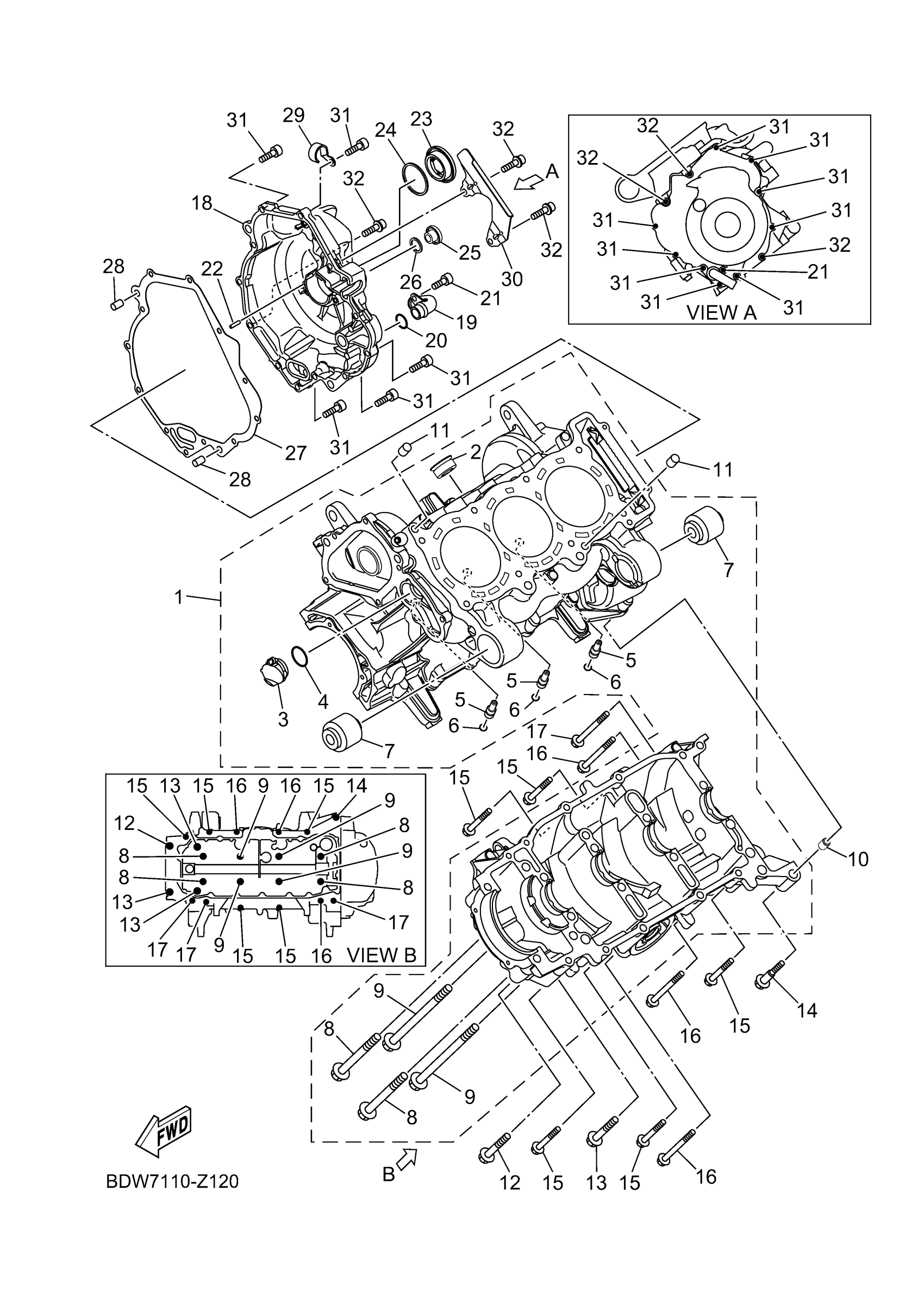

Yamaha YXZ10YEZSB (YXZ1000R SS XT R) BDWD 2025 CRANKCASE Diagram
#
1
CRANKCASE ASSY
BDW-15109-09-00
$2,517.99
2
PLUG, STRAIGHT SCREW
90340-27129-00
$5.60
3
PLUG, BLIND 1
8ES-15167-00-00
$11.99
4
O-RING(1HX)
93210-24709-00
$9.49
5
. NOZZLE 3
4XV-15155-00-00
Unavailable
6
O-RING (210)
93210-04092-00
$3.76
7
COLLAR
2HC-15541-00-00
$29.99
8
BOLT, WITH WASHER
90119-09004-00
$11.49
9
BOLT, WITH WASHER
90119-09011-00
$42.99
10
PIN, DOWEL(3VD)
99530-10114-00
$2.55
11
PIN, DOWEL(3VD)
99530-10114-00
$2.55
12
BOLT, FLANGE
95817-08055-00
$4.21
13
BOLT, FLANGE(JN5)
95817-08070-00
$3.76
14
BOLT
90109-06185-00
$8.49
15
BOLT, FLANGE
95812-06055-00
$1.75
16
BOLT, FLANGE
95812-06080-00
Unavailable
17
BOLT, FLANGE
95817-06080-00
Unavailable
18
COVER, CRANKCASE 2
BDW-15421-00-00
Unavailable
19
CONNECTOR, SUCTION PIPE
2HC-13115-00-00
Unavailable
20
O-RING
93210-14003-00
Unavailable
21
BOLT (33M)
91312-06014-00
Unavailable
22
PIN
99480-03012-00
Unavailable
23
PLUG, STRAIGHT SCREW
90340-36004-00
Unavailable
24
O-RING
93210-35804-00
Unavailable
25
PLUG, STRAIGHT SCREW
90340-14016-00
Unavailable
26
O-RING (2H9)
93210-14369-00
Unavailable
27
GASKET, CRANKCASE
2HC-15461-00-00
Unavailable
28
PIN, DOWEL
99530-08012-00
Unavailable
29
CLAMP(4AJ)
90462-08225-00
Unavailable
30
PLATE
B5H-15191-00-00
Unavailable
31
BOLT,SOCKET
91317-06025-00
Unavailable
32
BOLT, HEXAGON SOCKET HEAD
90110-06387-00
Unavailable
