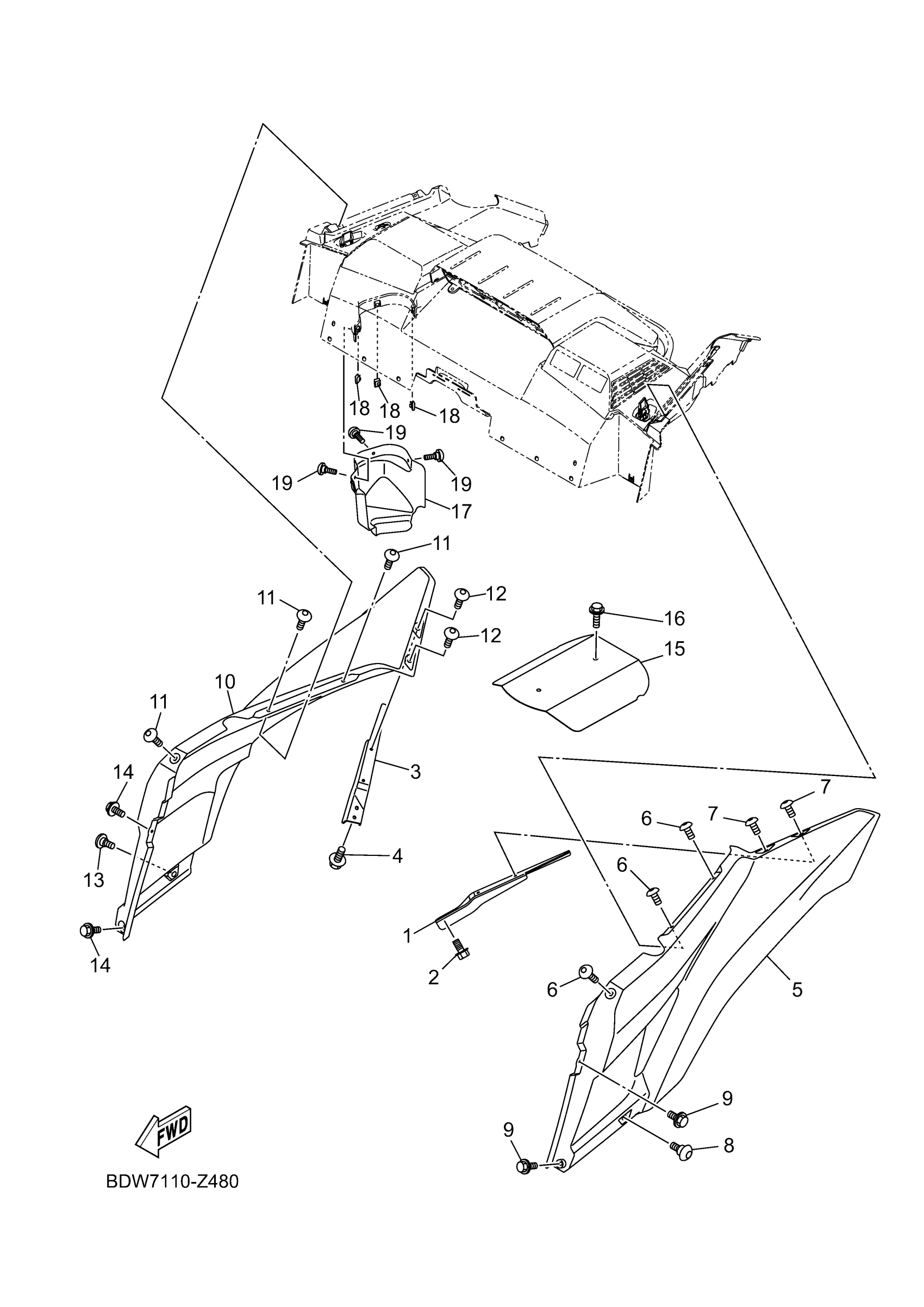

Yamaha YXZ10YEZSB (YXZ1000R SS XT R) BDWD 2025 CARRIER 3 Diagram

#

Description
Price

1

STAY, FENDER 3

BDW-F1643-10-00

Unavailable

2

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

3

STAY, FENDER 4

BDW-F1644-10-00

Unavailable

4

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

5

PANEL, REAR FENDER 3

2HC-K8193-30-00

Unavailable

6

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

7

BOLT,HEX. SOCKET BUTTON

90111-06180-00

$2.02

8

BOLT

90109-06061-00

$11.49

9

BOLT, WITH WASHER

90119-06226-00

$8.49

10

PANEL, REAR FENDER

2HC-K8194-30-00

$619.99

11

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

12

BOLT,HEX. SOCKET BUTTON

90111-06180-00

$2.02

13

BOLT

90109-06061-00

$11.49

14

BOLT, WITH WASHER

90119-06226-00

$8.49

15

INSULATOR, HEAT

B5H-F2898-00-00

$13.99

16

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

17

COVER 1

2HC-F842M-01-00

Unavailable

18

NUT, SPRING

90183-060A6-00

Unavailable

19

BOLT, WITH WASHER

90119-06226-00

$8.49
