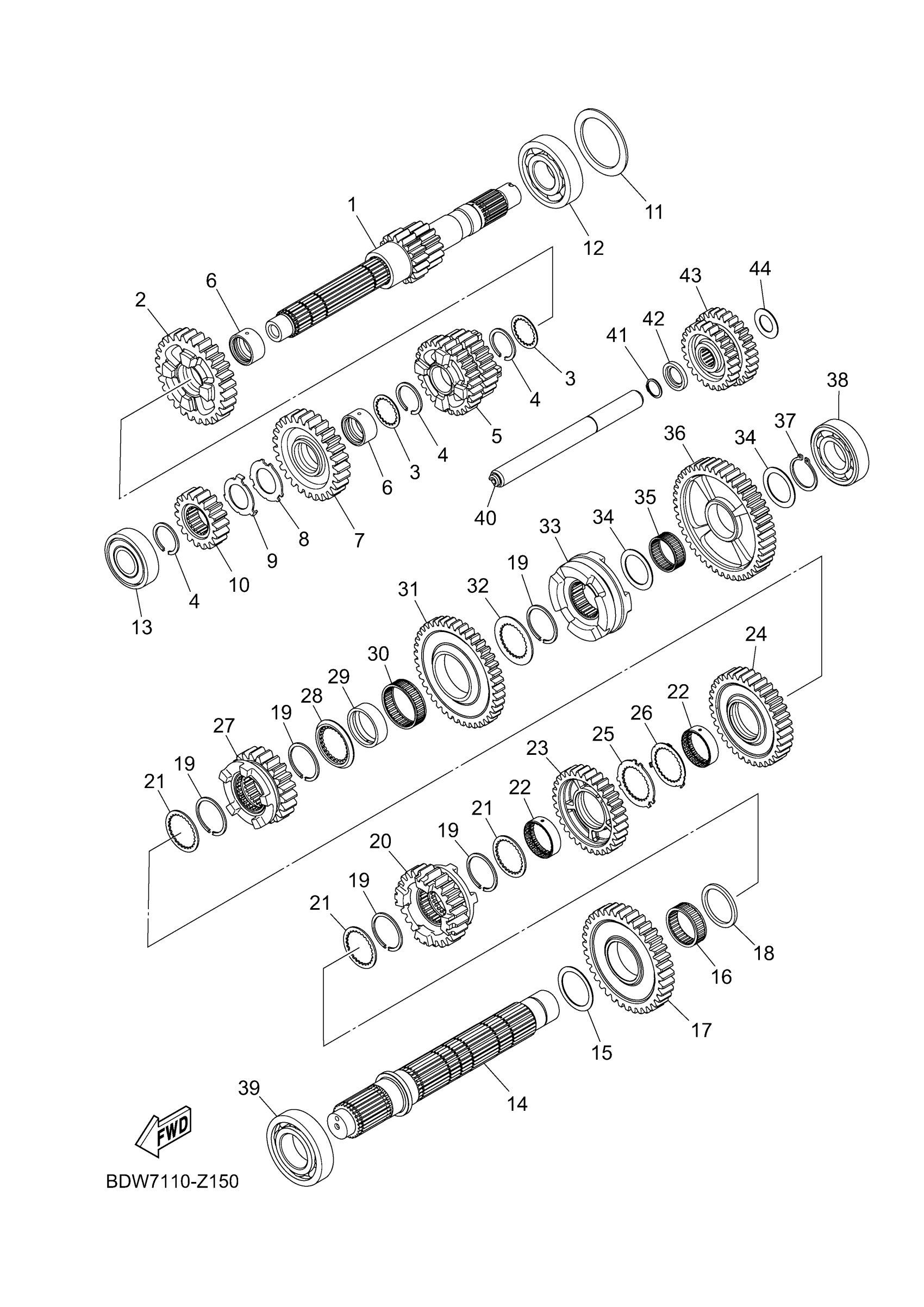

Yamaha YXZ10YEZRD (YXZ1000R SS XT R) BDW7 2024 TRANSMISSION Diagram
#
15
WASHER, PLATE
90201-35018-00
Unavailable
16
BEARING
93310-33599-00
Unavailable
17
GEAR, 2ND WHEEL (36T)
BDW-17221-00-00
Unavailable
18
WASHER, PLATE
90201-35015-00
Unavailable
19
CIRCLIP (371)
93440-34025-00
Unavailable
20
GEAR, 5TH WHEEL (24T)
BDW-17251-00-00
Unavailable
21
WASHER
90209-33008-00
Unavailable
22
COLLAR
90387-32008-00
Unavailable
23
GEAR, 4TH WHEEL (31T)
BDW-17241-00-00
Unavailable
24
GEAR, 3RD WHEEL (35T)
BDW-17231-00-00
Unavailable
25
WASHER, CLAW
90214-33002-00
Unavailable
26
WASHER, CLAW
90214-33003-00
Unavailable
27
GEAR, 6TH WHEEL (21T)
BDW-17261-00-00
Unavailable
28
RETAINER
BDW-18658-00-00
Unavailable
29
RACE, INNER
BDW-46122-00-00
Unavailable
30
BEARING
93310-340C1-00
Unavailable
31
GEAR, REVERSE WHEEL 2 (41T)
BDW-17253-00-00
Unavailable
32
WASHER, CLAW
90214-33004-00
Unavailable
33
CLUTCH, DOG
BDW-17285-00-00
Unavailable
34
WASHER, PLATE
90201-30018-00
Unavailable
35
BEARING
93310-330S2-00
Unavailable
36
GEAR, 1ST WHEEL (45T)
BDW-17211-00-00
Unavailable
37
CIRCLIP(4A6)
99009-30400-00
Unavailable
38
BEARING
93306-20664-00
Unavailable
39
BEARING
93306-20726-00
Unavailable
40
AXLE, IDLE
BDW-17432-00-00
Unavailable
41
CIRCLIP (525)
93410-17037-00
Unavailable
42
RETAINER, SPRING
2HC-18473-00-00
Unavailable
43
REVERSE WHEEL ASSY (24T/28T)
BDW-1724A-00-00
Unavailable
44
WASHER PLATE 306155610000
90201-17257-00
Unavailable
