- YXZ10YEZRD (YXZ1000R SS XT R) BDW7 2024
THROTTLE BODY ASSY 1

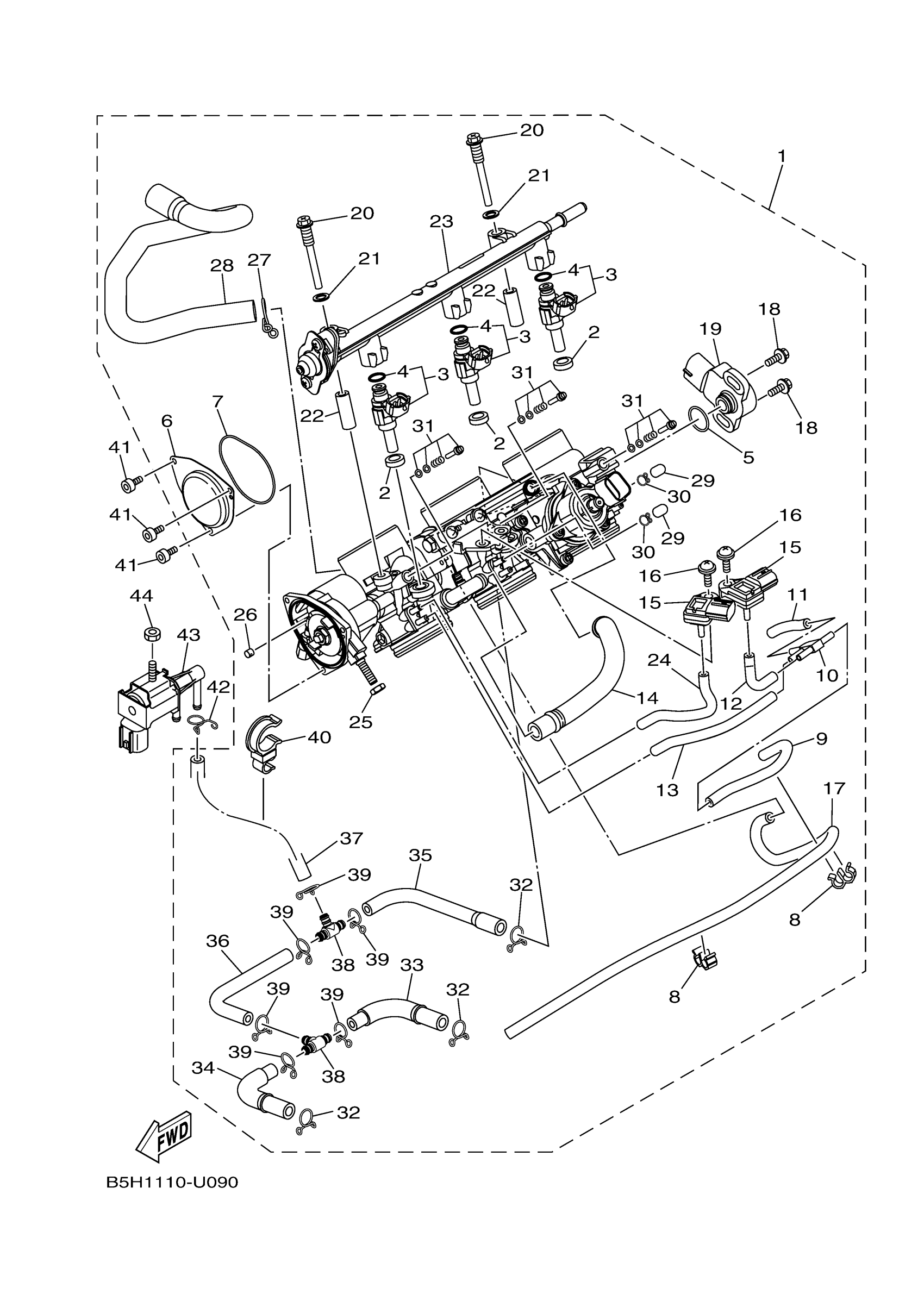

Yamaha YXZ10YEZRD (YXZ1000R SS XT R) BDW7 2024 THROTTLE BODY ASSY 1 Diagram
#
1
THROTTLE BODY ASSY
B5H-13750-02-00
Unavailable
2
. GASKET, MANIFOLD
8FP-13556-10-00
Unavailable
3
INJECTOR
2HC-13761-00-00
$117.99
4
. O-RING
68V-1416A-00-00
Unavailable
5
O-RING
5YP-14562-00-00
$7.99
6
COVER 1
5UG-14293-00-00
$12.99
7
O-RING
5LP-14147-00-00
$11.99
8
. CLAMP 1
69J-2417H-00-00
Unavailable
9
HOSE, AIR 4
2HC-13894-00-00
Unavailable
10
CONNECTOR
5PW-1410F-00-00
Unavailable
11
PIPE
8FP-14349-30-00
Unavailable
12
HOSE, AIR 2
8HF-13892-00-00
Unavailable
13
HOSE, AIR 3
8GL-13893-00-00
$7.49
14
HOSE, AIR
8GL-13895-00-00
Unavailable
15
SENSOR, PRESSURE
1WS-82380-00-00
$193.99
16
SCREW
2C0-14216-00-00
Unavailable
17
HOSE, AIR
18P-13543-00-00
Unavailable
18
SCREW
8CC-14216-10-00
Unavailable
19
THROTTLE SENSOR AS
3B4-85885-01-00
Unavailable
20
BOLT 1
8GL-13573-00-00
Unavailable
21
WASHER
8GL-13571-00-00
Unavailable
22
COLLAR
8GL-14534-00-00
Unavailable
23
PIPE INLET ASSEMBLY
2HC-13930-00-00
Unavailable
24
PIPE
5PW-14349-00-00
Unavailable
25
NUT, CABLE ADJUSTING
1S3-14161-00-00
Unavailable
26
GUIDE, CABLE
1UY-14155-00-00
Unavailable
27
CLIP
90467-150A2-00
Unavailable
28
HOSE 1
2HC-13545-00-00
Unavailable
29
CAP
895-14169-00-00
Unavailable
30
CLIP, PIPE
8A7-14139-00-00
Unavailable
31
ADJUST SCREW SET
8GL-14503-00-00
Unavailable
32
CLIP(1JH)
90467-11106-00
Unavailable
33
PIPE
B5H-14419-00-00
Unavailable
34
PIPE
B5H-14465-00-00
Unavailable
35
PIPE
B5H-14466-00-00
Unavailable
36
PIPE
B5H-1443J-00-00
Unavailable
37
PIPE
B5H-1444J-00-00
Unavailable
38
WAY 3
90413-06031-00
Unavailable
39
CLIP
90467-100A1-00
Unavailable
40
CLAMP
90464-20025-00
Unavailable
41
BOLT
91312-04006-00
Unavailable
42
CLIP
90467-100A1-00
Unavailable
43
SOLENOID VALVE ASSY
BG4-86120-00-00
Unavailable
44
NUT, FLANGE
95702-06500-00
Unavailable
