Description

Price

1

PANEL, CONSOLE 1

2HC-F837L-00-00

$42.99

2

BOLT, WITH WASHER

90119-06226-00

$8.49

3

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

4

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

5

BOLT, WITH WASHER

90119-06226-00

$8.49

6

PANEL, CONSOLE 2

2HC-F837M-00-00

$41.99

7

BOLT, WITH WASHER

90119-06226-00

$8.49

8

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

9

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

10

BOLT, WITH WASHER

90119-06226-00

$8.49

11

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

12

TOP COVER COMP.

2HC-F171C-70-00

$183.99

13

LID, COVER

BDW-F177B-01-00

$9.49

14

SCREW, TRUSS HEAD TAPPING

90169-03800-00

$0.64

15

PLUG, HOLE

BG4-F312G-00-00

$1.64

16

BOLT, WITH WASHER

90119-06226-00

$8.49

17

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

18

NUT, SPRING

90183-060A6-00

Unavailable

19

COVER, HANDLE LEVE

2HC-F6372-00-00

Unavailable

20

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

21

COVER ASSY.

2HC-F1608-70-00

Unavailable

22

LID, COVER

2HC-F177B-A0-00

Unavailable

23

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

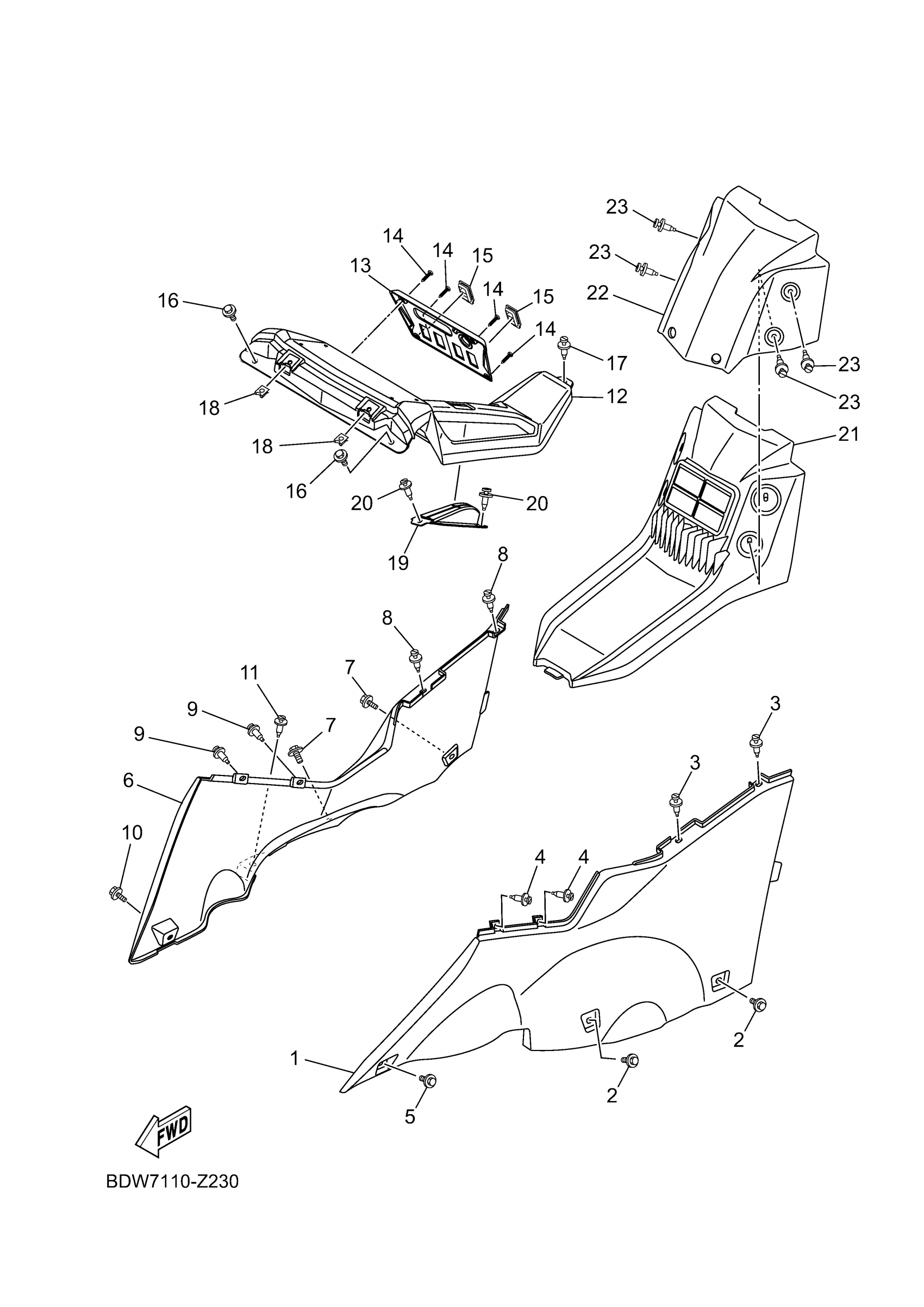

Yamaha YXZ10YEZRD (YXZ1000R SS XT R) BDW7 2024 SIDE COVER 2 Diagram

PANEL, CONSOLE 1

BOLT, WITH WASHER

RIVET,SPEC'L SHAPE

RIVET,SPEC'L SHAPE

BOLT, WITH WASHER

PANEL, CONSOLE 2

BOLT, WITH WASHER

RIVET,SPEC'L SHAPE

RIVET,SPEC'L SHAPE

BOLT, WITH WASHER

RIVET,SPEC'L SHAPE

TOP COVER COMP.

LID, COVER

SCREW, TRUSS HEAD TAPPING

PLUG, HOLE

BOLT, WITH WASHER

RIVET,SPEC'L SHAPE

NUT, SPRING

COVER, HANDLE LEVE

RIVET,SPEC'L SHAPE

COVER ASSY.

LID, COVER

RIVET,SPEC'L SHAPE
