Description

Price

1

STOPPER, SCREW

BDW-18127-00-00

Unavailable

2

SHIFT SHAFT ASSY

BDW-18101-00-00

Unavailable

3

SPRING, TORSION

90508-32144-00

$4.84

4

CIRCLIP

99002-10600-00

$8.49

5

WASHER, PLATE (5N6)

90201-127E1-00

$4.29

6

WASHER, PLATE (5N6)

90201-127E1-00

$4.29

7

WASHER, PLATE (353)

90201-12575-00

$8.49

8

CIRCLIP

99002-10600-00

$8.49

9

SHIFT ACTUATOR ASSY

B57-82450-02-00

$778.99

10

BOLT, BUTTON HEAD

92012-08025-00

$7.49

11

ARM, SHIFT

BDW-18112-00-00

Unavailable

12

BOLT, FLANGE DEEP RECESS

95E32-06020-00

$0.86

13

ROD, SHIFT

BDW-18115-00-00

Unavailable

14

NUT(650)

95380-06700-00

$8.49

15

JOINT, ROD 1

5LV-18116-00-00

$57.99

16

COVER, DUST

4XV-18154-00-00

Unavailable

17

NUT (2H9)

90170-06228-00

Unavailable

18

JOINT, ROD 2

5LV-18117-00-00

Unavailable

19

COLLAR

90387-06106-00

Unavailable

20

BOLT, BUTTON HEAD

92012-06020-00

Unavailable

21

SHIFTER ASSY

B57-18300-01-00

Unavailable

22

BOLT, FLANGE

90105-08182-00

Unavailable

23

. WASHER

92902-08200-00

Unavailable

24

HOSE (L280)

90445-11003-00

Unavailable

25

CLIP

90467-110A3-00

Unavailable

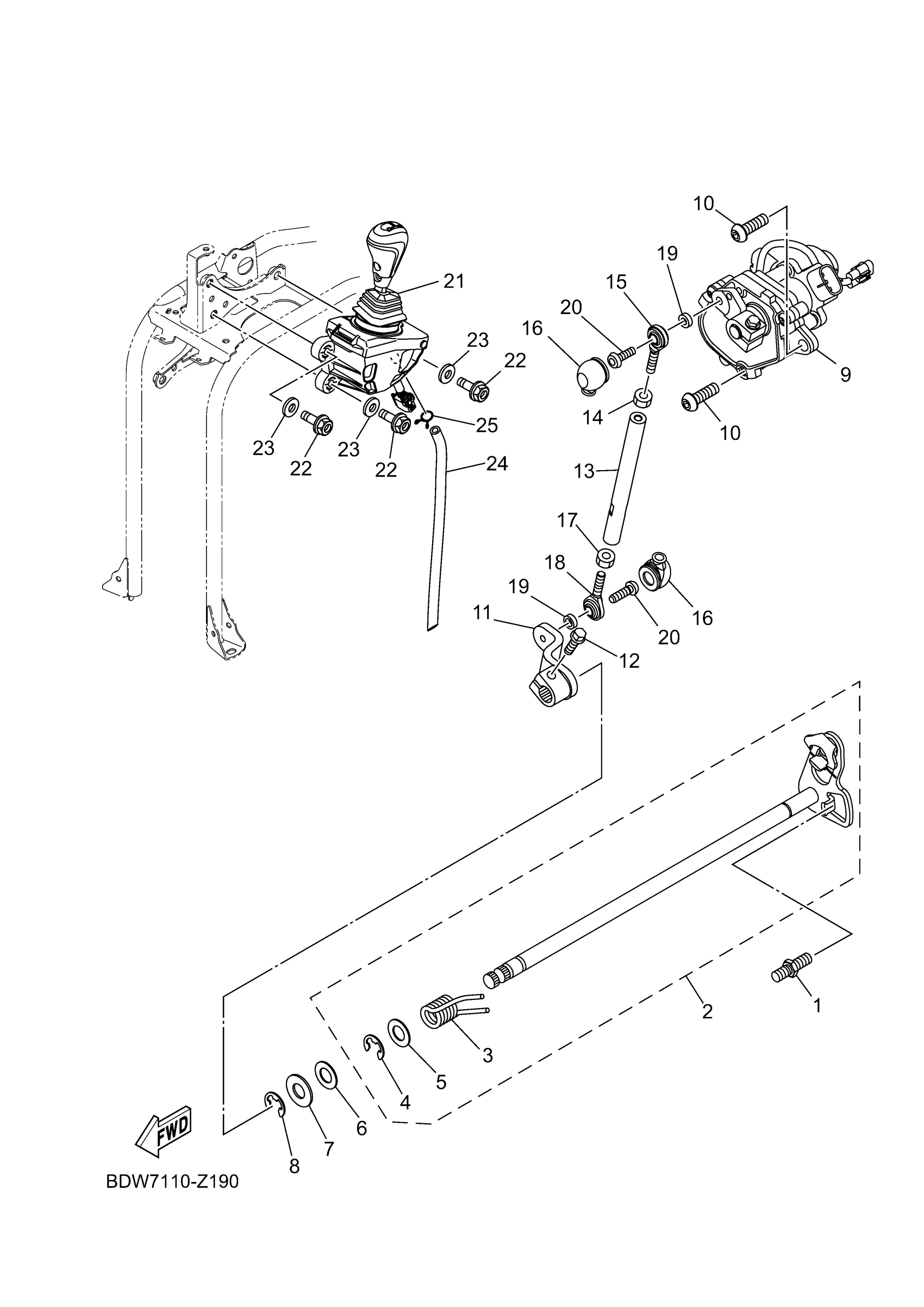

Yamaha YXZ10YEZRD (YXZ1000R SS XT R) BDW7 2024 SHIFT SHAFT Diagram

STOPPER, SCREW

SHIFT SHAFT ASSY

SPRING, TORSION

CIRCLIP

WASHER, PLATE (5N6)

WASHER, PLATE (5N6)

WASHER, PLATE (353)

CIRCLIP

SHIFT ACTUATOR ASSY

BOLT, BUTTON HEAD

ARM, SHIFT

BOLT, FLANGE DEEP RECESS

ROD, SHIFT

NUT(650)

JOINT, ROD 1

COVER, DUST

NUT (2H9)

JOINT, ROD 2

COLLAR

BOLT, BUTTON HEAD

SHIFTER ASSY

BOLT, FLANGE

. WASHER

HOSE (L280)

CLIP
