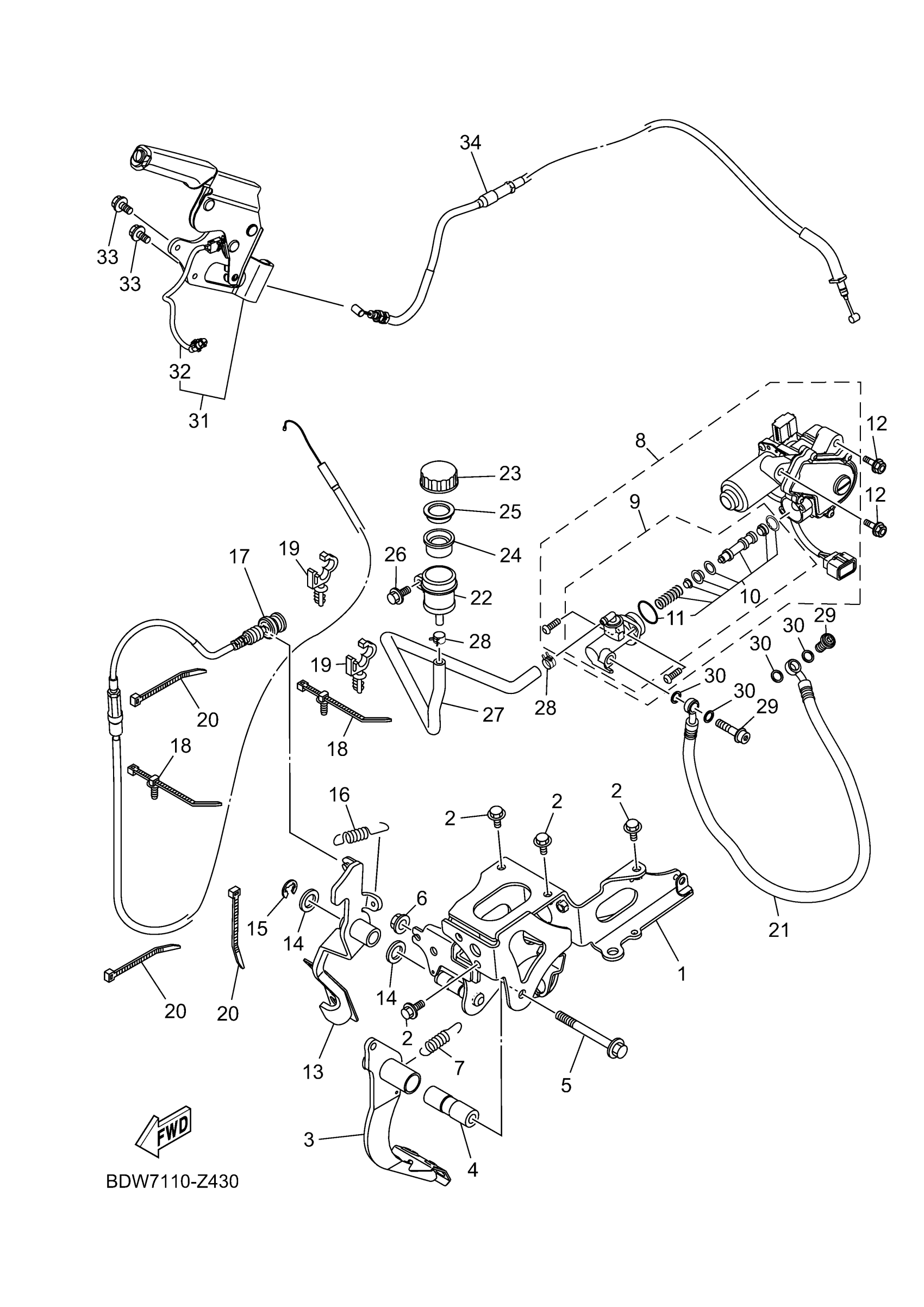

Yamaha YXZ10YEZRD (YXZ1000R SS XT R) BDW7 2024 PEDAL WIRE Diagram

#

Description
Price

1

BRACKET,PEDL SUPRT

B57-F2548-01-00

$81.99

2

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

3

PEDAL, BRAKE

2HC-F7200-00-00

Unavailable

4

COLLAR

90387-10843-00

Unavailable

5

95812-10090

95812-10090-00

$2.70

6

NUT, S/L FLANGE

95602-10200-00

$4.82

7

SPRING, TENSION

90506-23022-00

$5.49

8

CLUTCH ACTUATOR ASSY

B57-82460-03-00

$1,307.99

9

. MASTER CLUTCH SUB ASSY

B57-8V645-09-00

Unavailable

10

.. MASTER CYLINDER KIT

B57-8V099-09-00

Unavailable

11

O-RING (22F)

93210-25552-00

$13.49

12

BOLT, WASHER BASED (11H)

90105-08211-00

$3.23

13

ACCEL PEDAL ASSY

2HC-F7801-01-00

Unavailable

14

WASHER, PLATE

90201-15018-00

$7.49

15

CIRCLIP (122)

93430-12008-00

$8.49

16

SPRING, TENSION

90506-23022-00

$5.49

17

WIRE, THROTTLE 1

2HC-26311-13-00

Unavailable

18

CLAMP

5B4-F1338-00-00

Unavailable

19

CLAMP

90464-12830-00

Unavailable

20

CLAMP

90464-48800-00

Unavailable

21

HOSE, CLUTCH 1

B57-26472-00-00

Unavailable

22

TANK, RESERVOIR

5JJ-25894-01-00

Unavailable

23

CAP, RESERVOIR

3XP-25852-50-00

Unavailable

24

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

Unavailable

25

BUSH,DIAPHRAGM

2VN-25855-00-00

Unavailable

26

BOLT, WITH WASHER

90119-06137-00

Unavailable

27

HOSE, RESERVOIR

BDW-25895-00-00

Unavailable

28

CLIP (7K7)

90467-11044-00

Unavailable

29

BOLT, UNION

90401-10172-00

Unavailable

30

WASHER, PLATE(481)

90201-10118-00

Unavailable

31

PARKING LEVER ASSY

BDW-F5690-00-00

Unavailable

32

SWITCH COMP.

B4J-H251S-00-00

Unavailable

33

BOLT, FLANGE

95817-06012-00

Unavailable

34

WIRE, BRAKE 1

BDW-26341-00-00

Unavailable
