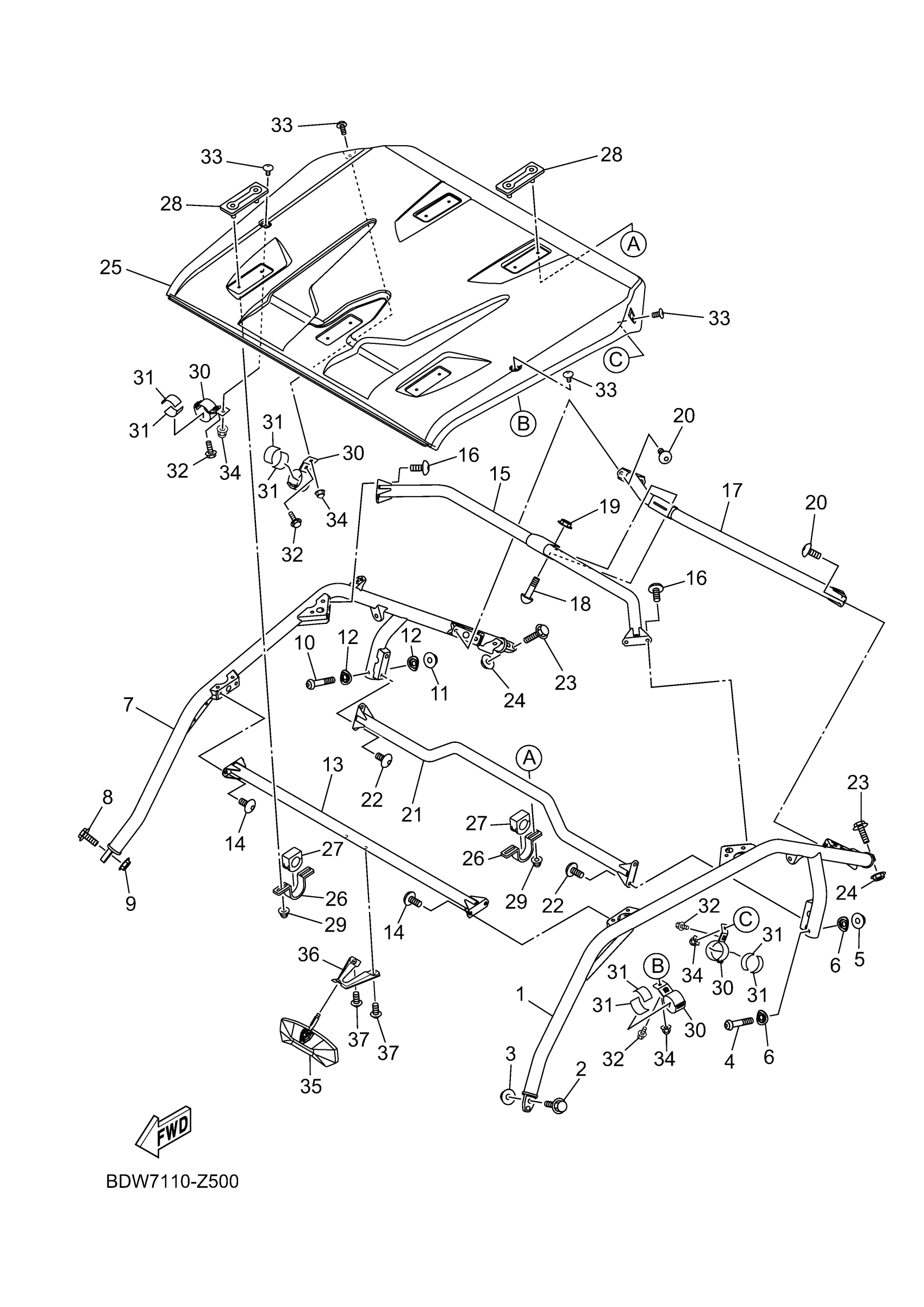

Yamaha YXZ10YEZRD (YXZ1000R SS XT R) BDW7 2024 GUARD 2 Diagram

#

Description
Price

1

SUPPORT, ROOF 3

B5H-K831A-00-00

$290.06

2

BOLT, FLANGE(4GB)

95817-10045-00

$4.23

3

NUT, SELF-LOCKING

90185-10819-00

$0.91

4

BOLT,BUTTON

92017-10060-00

$4.53

5

NUT, SELF-LOCKING

90185-10819-00

$0.91

6

WASHER 2

5UG-K7526-00-00

$3.95

7

SUPPORT, ROOF 4

B5H-K831E-00-00

$290.06

8

BOLT, FLANGE(4GB)

95817-10045-00

$4.23

9

NUT, SELF-LOCKING

90185-10819-00

$0.91

10

BOLT,BUTTON

92017-10060-00

$4.53

11

NUT, SELF-LOCKING

90185-10819-00

$0.91

12

WASHER 2

5UG-K7526-00-00

$3.95

13

MEMBER, ROOF FRAME

BAS-K8392-00-00

$152.05

14

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

15

ROOF SUPPORT ASSY

B5H-K830A-00-00

$162.42

16

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

17

ROOF SUPPORT ASSY

B5H-K830B-00-00

Unavailable

18

BOLT,BUTTON

92017-10060-00

$4.53

19

NUT, SELF-LOCKING

90185-10819-00

$0.91

20

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

21

ROOF SUPPORT ASSY

B5H-K830C-00-00

Unavailable

22

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

23

BOLT, FLANGE(4GB)

95817-10045-00

$4.23

24

NUT, SELF-LOCKING

90185-10819-00

$0.91

25

COVER, SUN ROOF

B5H-K8314-01-00

$653.99

26

CLAMP, SUPPORT

B5H-K8366-00-00

Unavailable

27

DAMPER

1XP-K7588-00-00

Unavailable

28

PLATE, 1

B5H-K7577-01-00

Unavailable

29

NUT, CROWN

90176-06008-00

Unavailable

30

CLAMP

B5H-F481H-00-00

Unavailable

31

DAMPER

5UG-K7588-01-00

Unavailable

32

BOLT, FLANGE

95817-06012-00

Unavailable

33

BOLT,HEX. SOCKET BUTTON

90111-06180-00

Unavailable

34

NUT, CROWN

90176-06008-00

Unavailable

35

MIRROR

BKP-F6291-01-00

Unavailable

36

BRACKET 2

BAS-K7722-00-00

Unavailable

37

SCREW

90149-08805-00

Unavailable
