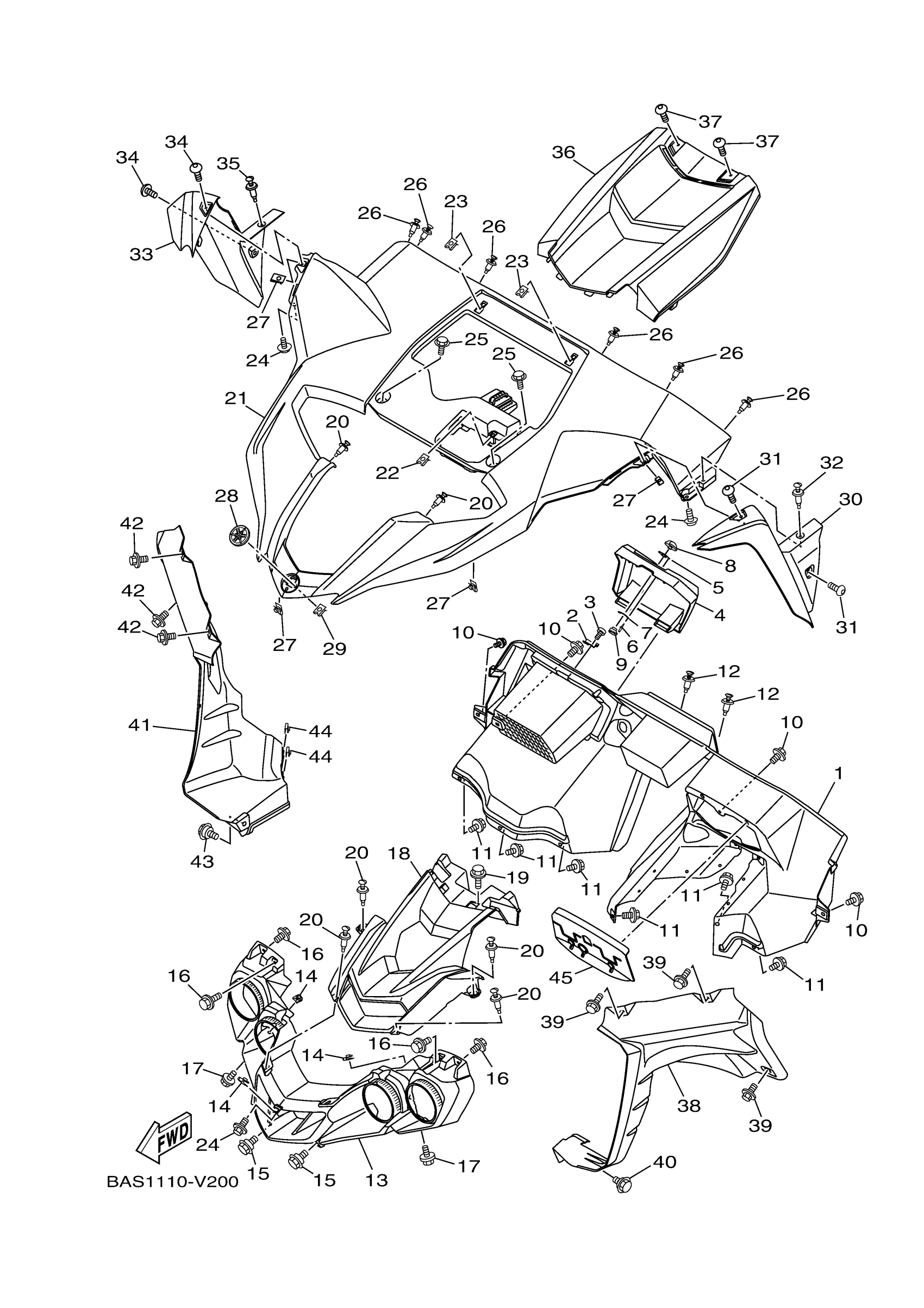

Yamaha YXZ10YEZRD (YXZ1000R SS XT R) BDW7 2024 FRONT FENDER Diagram

#

Description
Price

1

PANEL, INSTRUMENT

2HC-K7711-31-00

$161.42

2

BRACKET, COVER

B5H-F139T-00-00

$3.27

3

SCREW, TAPPING

90164-04800-00

$0.44

4

LID

2HC-F160F-00-00

$53.99

5

WASHER, SPECIAL

1XD-F1515-00-00

Unavailable

6

RIVET, BLIND

90267-24143-00

$6.17

7

WASHER, SPECIAL 2

1XD-F1516-00-00

$1.77

8

LOCK 1

B5H-F837G-00-00

$1.74

9

LOCK 2

B5H-F837H-00-00

$1.67

10

BOLT,HEX SKT HEAD

90111-06814-00

$1.45

11

BOLT, WITH WASHER

90119-06226-00

$2.12

12

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

13

GRILLE, FRONT

2HC-F8309-00-00

Unavailable

14

NUT, SPRING

90183-060A6-00

$3.90

15

BOLT

90109-06202-00

$2.46

16

BOLT, WITH WASHER

90119-06226-00

$2.12

17

BOLT, WITH WASHER

90119-06226-00

$2.12

18

COVER 1

BAS-F5715-30-00

Unavailable

19

BOLT, WITH WASHER

90119-06226-00

$2.12

20

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

21

FRONT FENDER COMP.

2HC-F1510-20-00

$652.82

22

NUT, SPRING

90183-060A6-00

$3.90

23

NUT, SPRING

90183-060A6-00

$3.90

24

BOLT, WITH WASHER

90119-06226-00

$2.12

25

BOLT, WITH WASHER

90119-06226-00

$2.12

26

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

27

NUT, SPRING

90183-060A6-00

$3.90

28

TUNING FORK MARK

1XD-F175B-01-00

Unavailable

29

NUT, SPRING

90183-06071-00

$0.50

30

FLAP, FRONT FENDER

2HC-K8187-20-00

Unavailable

31

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

32

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

33

FLAP, FRONT FENDER

2HC-K818K-20-00

Unavailable

34

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

35

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

36

HOOD 2

BAS-F835F-30-00

Unavailable

37

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

38

COVER 1

2HC-E246A-00-00

Unavailable

39

BOLT, WITH WASHER

90119-06226-00

$2.12

40

BOLT

90109-06202-00

$2.46

41

COVER 2

2HC-E246E-00-00

Unavailable

42

BOLT, WITH WASHER

90119-06226-00

$2.12

43

BOLT

90109-06202-00

$2.46

44

NUT, SPRING

90183-060A6-00

$3.90

45

COVER, SEAL 3

2HC-F338G-00-00

$11.12
