- YXZ10YEZRD (YXZ1000R SS XT R) BDW7 2024
FRONT BRAKE CALIPER

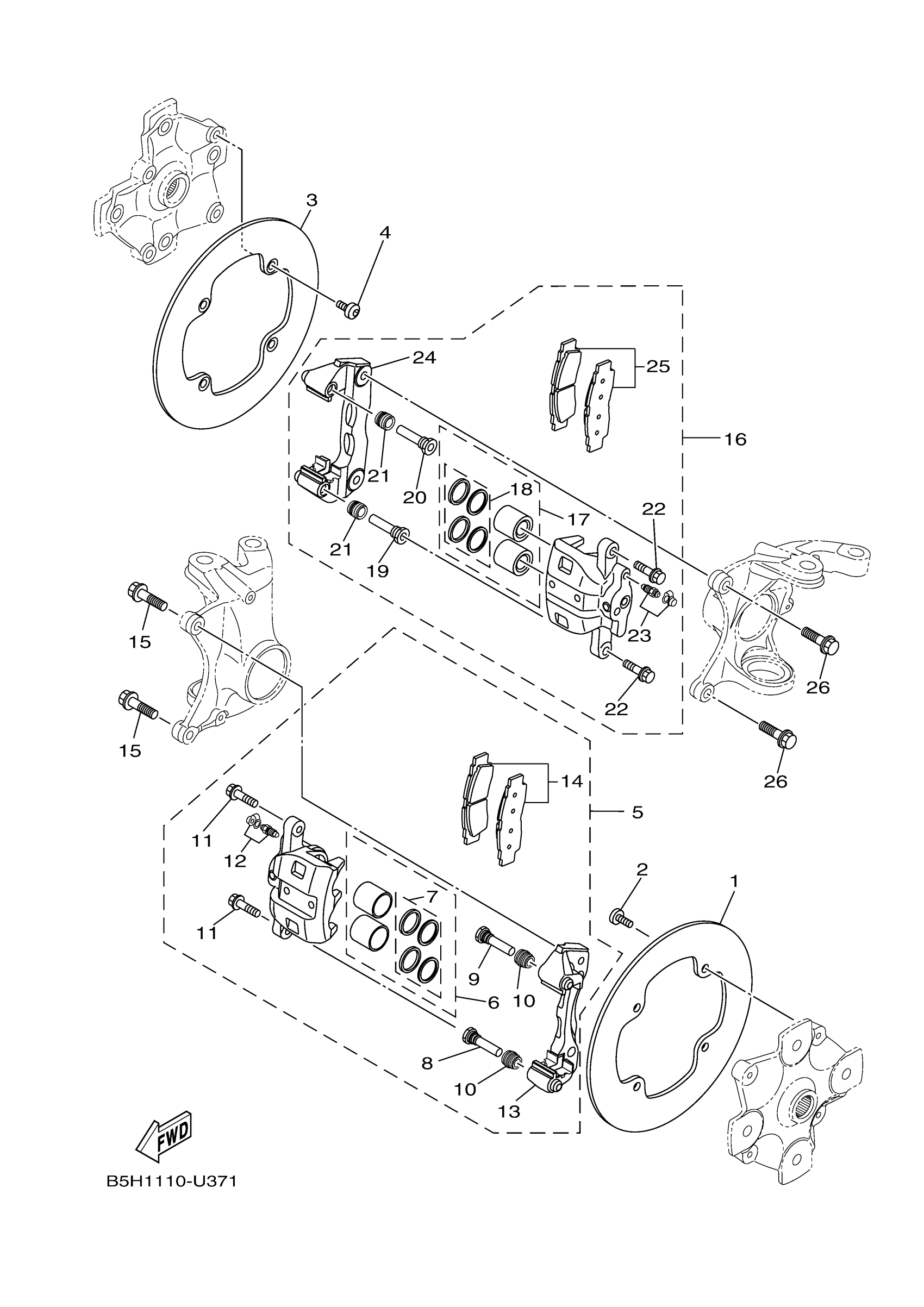

Yamaha YXZ10YEZRD (YXZ1000R SS XT R) BDW7 2024 FRONT BRAKE CALIPER Diagram
#
Description
Price
1
DISC, BRAKE (LEFT)
B5H-F582T-00-00
$62.99
2
BOLT
90109-08077-00
$8.49
3
DISC, BRAKE (LEFT)
B5H-F582T-00-00
$62.99
4
BOLT
90109-08077-00
$8.49
5
CALIPER ASSY (LEFT
B5H-2580T-01-00
$460.99
6
PISTON ASSY, CALIPER
B5H-25802-00-00
Unavailable
7
CALIPER SEAL KIT
B5H-25803-00-00
Unavailable
8
BOLT
2HC-25926-00-00
Unavailable
9
BOLT
2HC-25926-10-00
Unavailable
10
BOOT, CALIPER
2HC-25917-00-00
$4.52
11
BOLT, FITTING
2HC-25833-00-00
$1.98
12
BLEED SCREW KIT
36Y-W0048-00-00
$9.99
13
BRACKET, CALIPER
2HC-25819-00-00
$111.99
14
BRAKE PAD KIT
B5H-25805-01-00
$92.99
15
BOLT, FLANGE
90105-10405-00
$5.60
16
CALIPER ASSY (RIGH
B5H-2580U-01-00
Unavailable
17
PISTON ASSY, CALIPER
B5H-25802-00-00
Unavailable
18
CALIPER SEAL KIT
B5H-25803-00-00
Unavailable
19
BOLT
2HC-25926-00-00
Unavailable
20
BOLT
2HC-25926-10-00
Unavailable
21
BOOT, CALIPER
2HC-25917-00-00
$4.52
22
BOLT, FITTING
2HC-25833-00-00
$1.98
23
BLEED SCREW KIT
36Y-W0048-00-00
$9.99
24
BRACKET, CALIPER
2HC-25819-00-00
$111.99
25
BRAKE PAD KIT
B5H-25805-01-00
$92.99
26
BOLT, FLANGE
90105-10405-00
$5.60
