Description

Price

1

STAY, FENDER 3

BDW-F1643-10-00

Unavailable

2

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

3

STAY, FENDER 4

BDW-F1644-10-00

Unavailable

4

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

5

PANEL, REAR FENDER 3

2HC-K8193-80-00

Unavailable

6

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

7

BOLT,HEX. SOCKET BUTTON

90111-06180-00

$2.02

8

BOLT

90109-06061-00

$11.49

9

BOLT, WITH WASHER

90119-06226-00

$8.49

10

PANEL, REAR FENDER 4

2HC-K8194-80-00

Unavailable

11

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

12

BOLT,HEX. SOCKET BUTTON

90111-06180-00

$2.02

13

BOLT

90109-06061-00

$11.49

14

BOLT, WITH WASHER

90119-06226-00

$8.49

15

INSULATOR, HEAT

B5H-F2898-00-00

$13.99

16

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

17

COVER 1

2HC-F842M-01-00

Unavailable

18

NUT, SPRING

90183-060A6-00

Unavailable

19

BOLT, WITH WASHER

90119-06226-00

$8.49

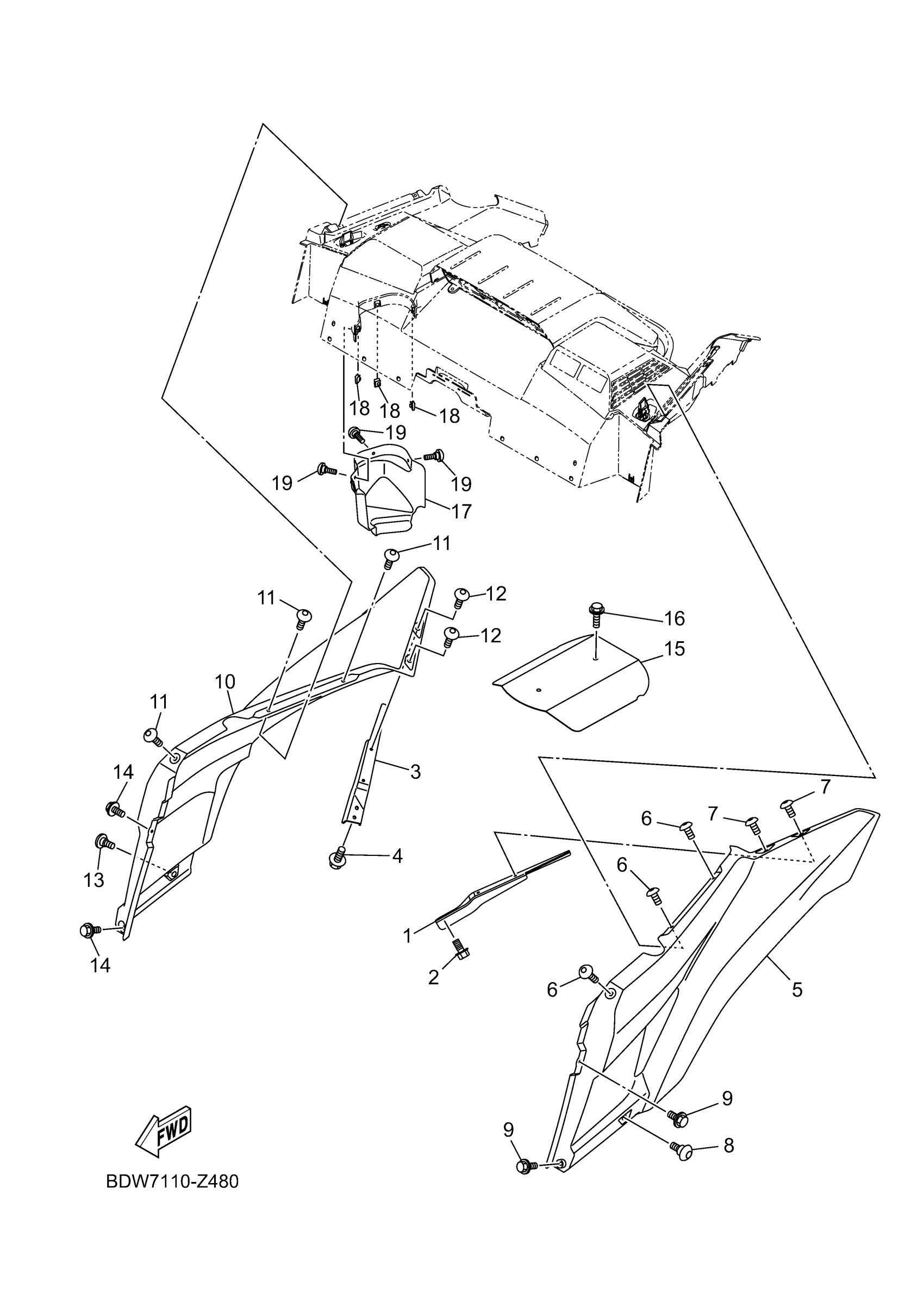

Yamaha YXZ10YEZRD (YXZ1000R SS XT R) BDW7 2024 CARRIER 3 Diagram

STAY, FENDER 3

BOLT, FLANGE(JN5)

STAY, FENDER 4

BOLT, FLANGE(JN5)

PANEL, REAR FENDER 3

BOLT, HEXAGON SOCKET HEAD(51L)

BOLT,HEX. SOCKET BUTTON

BOLT

BOLT, WITH WASHER

PANEL, REAR FENDER 4

BOLT, HEXAGON SOCKET HEAD(51L)

BOLT,HEX. SOCKET BUTTON

BOLT

BOLT, WITH WASHER

INSULATOR, HEAT

BOLT, FLANGE(JN5)

COVER 1

NUT, SPRING

BOLT, WITH WASHER
