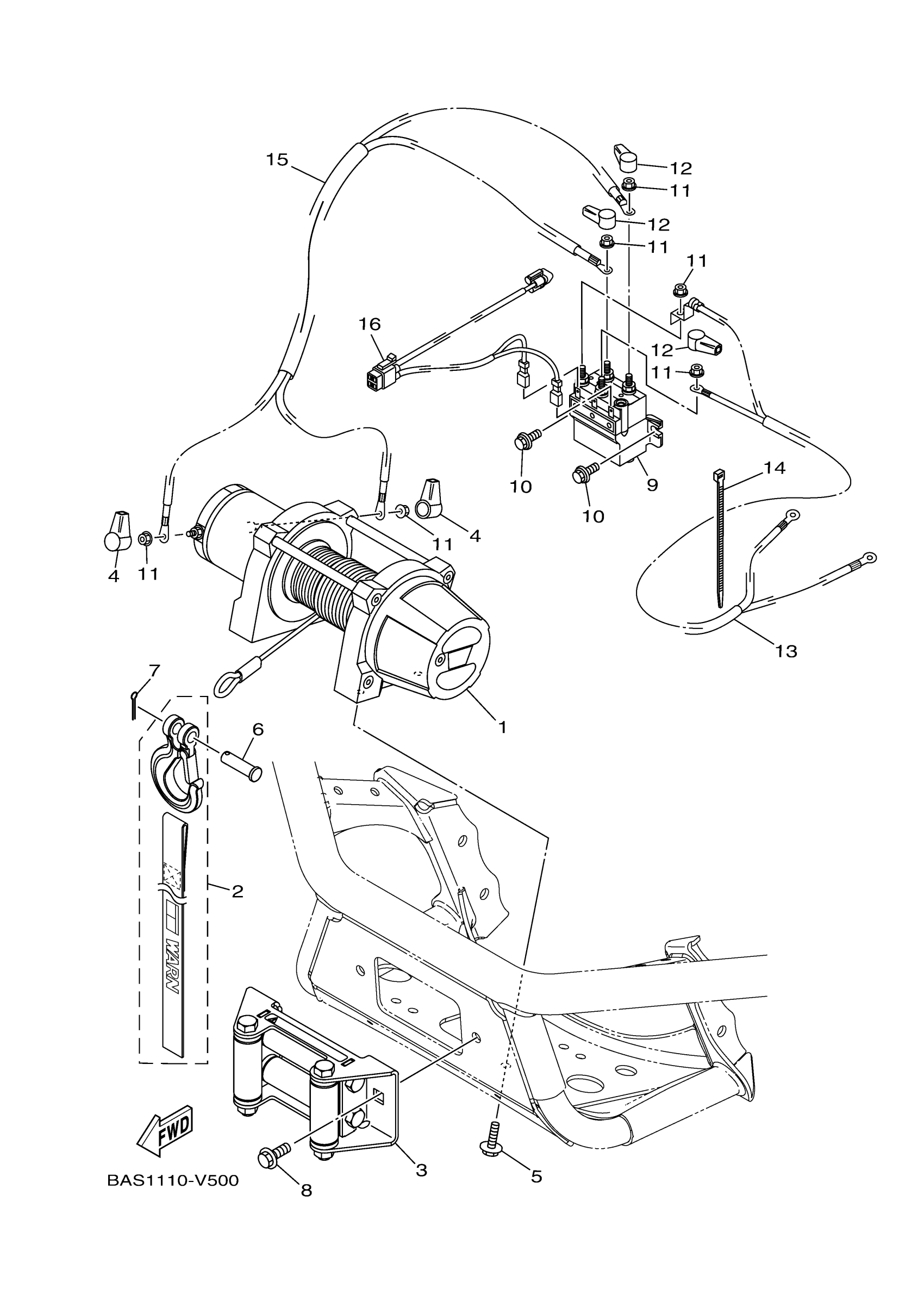

Yamaha YXZ10YEZPT (YXZ1000R SS XTR) BASP 2023 WINCH Diagram

#

Description
Price

1

WINCH

BAS-F845V-00-00

$614.73

2

HOOK

BAS-F8488-02-00

$36.18

3

ROLLER

BAS-F178G-03-00

$76.02

4

PROTECTOR

BAS-F3472-00-00

$4.24

5

BOLT, FLANGE DEEP RECESS

95D32-08016-00

$0.89

6

PIN

BAS-F818A-00-00

$2.55

7

PIN COTTER

91490-30025-00

Unavailable

8

BOLT, FLANGE

95812-10016-00

$7.70

9

CONTACTOR

BAS-H232W-00-00

$145.44

10

BOLT, WITH WASHER

90119-06133-00

$4.40

11

NUT, FLANGE

95702-06500-00

$1.95

12

PROTECTOR

BAS-F3472-00-00

$4.24

13

WIRE, INNER 1

BAS-F633K-01-00

$66.95

14

CLAMP

90464-51800-00

$11.08

15

WIRE, INNER 2

BAS-F633L-02-00

$92.06

16

WIRE HARNESS

BAS-H2105-00-00

Unavailable
