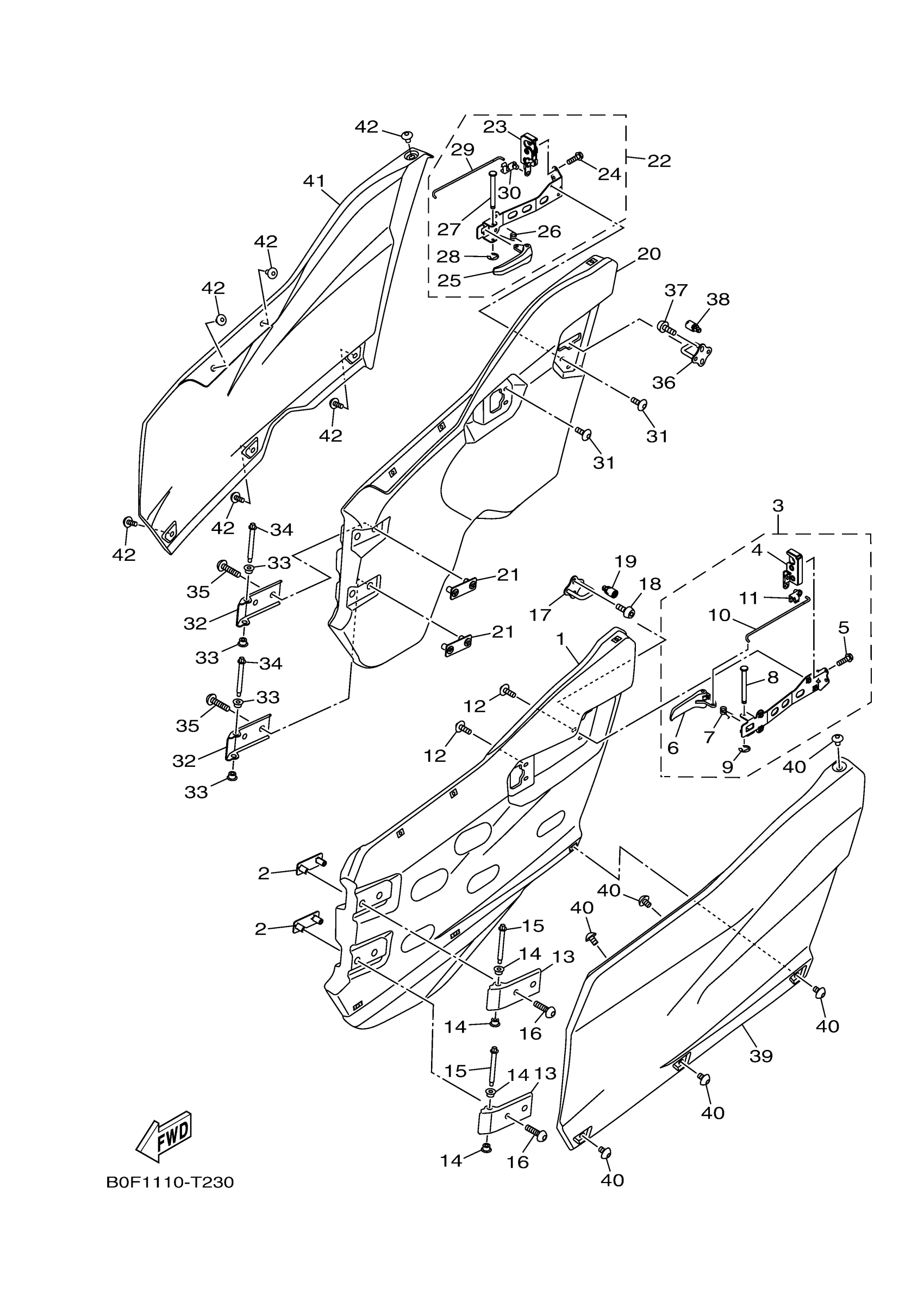

Yamaha YXZ10YEZPT (YXZ1000R SS XTR) BASP 2023 SIDE COVER 3 Diagram
#
1
PNL., DOOR FR. LH
2HC-K8557-01-00
$143.99
2
NUT,PLATE
2HC-F1736-00-00
$9.49
3
BODY, LATCH 1
2HC-K7171-00-00
$51.99
4
LOCK ASSY
2HC-F16A0-00-00
Unavailable
5
BOLT, FLANGE
95817-06020-00
$3.81
6
LEVER, LATCH 1
2HC-F17N1-00-00
$7.49
7
SPRING
2HC-F1742-00-00
$2.96
8
. PIN
90249-05801-00
Unavailable
9
CIRCLIP (EU0)
99080-04600-00
Unavailable
10
. ROD 1
2HC-F7247-00-00
Unavailable
11
. CLIP, CABLE
2HC-F2805-00-00
Unavailable
12
BOLT,HEX. SOCKET BUTTON
90111-06086-00
$5.60
13
STAY, FR. DOOR 1
2HC-K8554-00-00
$6.99
14
COLLAR
2HC-F1748-00-00
$2.50
15
BOLT
90109-068A8-00
$3.08
16
BOLT
90109-08856-00
Unavailable
17
LOCK
2HC-F178J-00-00
Unavailable
18
BOLT, BUTTON HEAD
92012-08012-00
Unavailable
19
PAD
2MB-F8378-00-00
Unavailable
20
PNL., DOOR FR. RH
2HC-K8558-01-00
Unavailable
21
NUT,PLATE
2HC-F1736-00-00
$9.49
22
BODY, LATCH 2
2HC-K7172-00-00
Unavailable
23
LOCK ASSY 2
2HC-F16B0-00-00
Unavailable
24
BOLT, FLANGE
95817-06020-00
$3.81
25
LEVER, LATCH 1
2HC-F17N1-00-00
$7.49
26
SPRING
2HC-F1742-00-00
$2.96
27
. PIN
90249-05801-00
Unavailable
28
CIRCLIP (EU0)
99080-04600-00
Unavailable
29
. ROD 2
2HC-F7248-00-00
Unavailable
30
. CLIP, CABLE
2HC-F2805-00-00
Unavailable
31
BOLT,HEX. SOCKET BUTTON
90111-06086-00
$5.60
32
STAY, FR. DOOR 1
2HC-K8554-00-00
$6.99
33
COLLAR
2HC-F1748-00-00
$2.50
34
BOLT
90109-068A8-00
$3.08
35
BOLT
90109-08856-00
Unavailable
36
LOCK
2HC-F178J-00-00
Unavailable
37
BOLT, BUTTON HEAD
92012-08012-00
Unavailable
38
PAD
2MB-F8378-00-00
Unavailable
39
SIDE COVER COMP. 1
2HC-F17E0-80-00
Unavailable
40
BOLT,HEX. SOCKET BUTTON
90111-06181-00
Unavailable
41
SIDE COVER COMP. 2
2HC-F17F0-80-00
Unavailable
42
BOLT,HEX. SOCKET BUTTON
90111-06181-00
Unavailable
