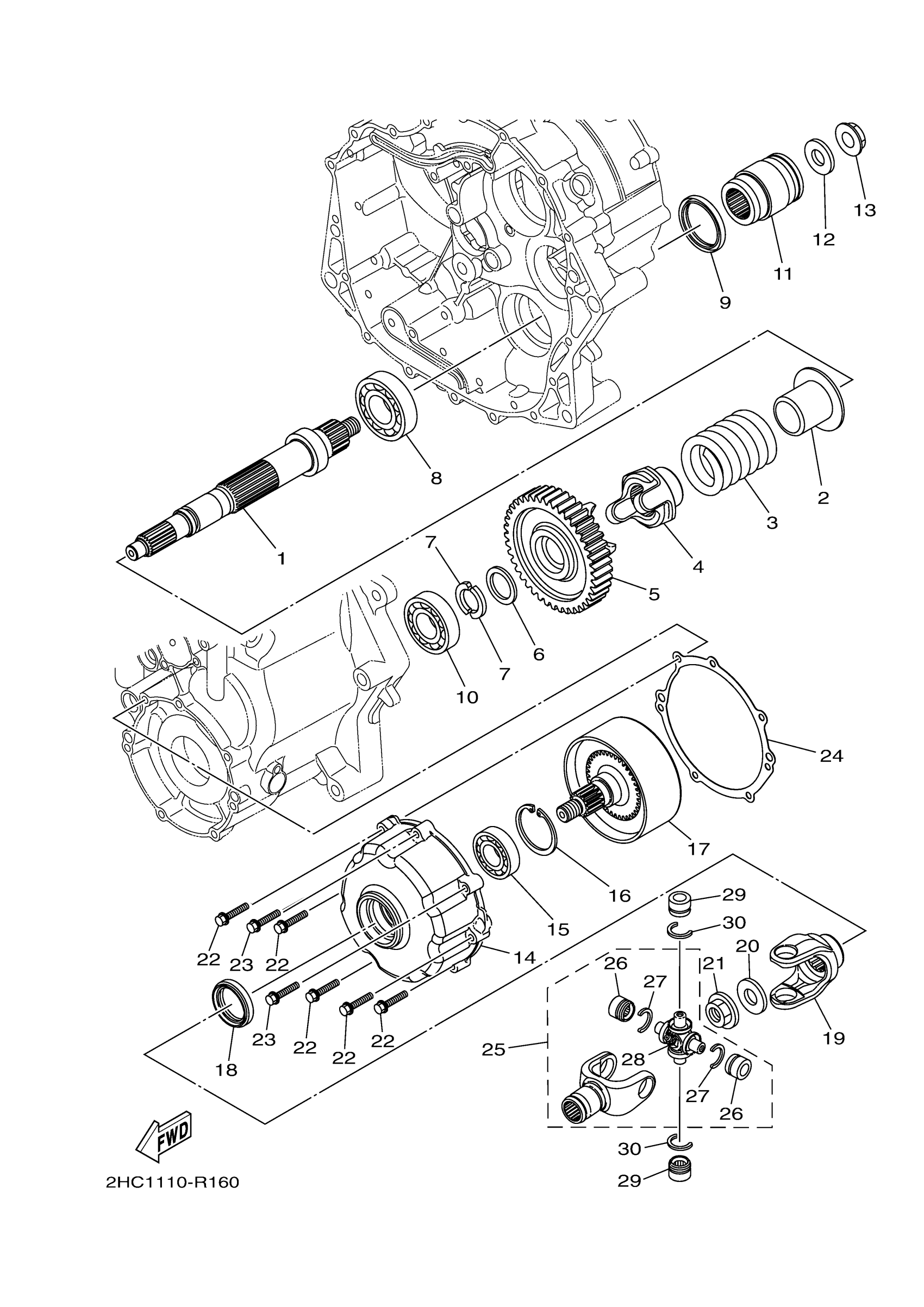

Yamaha YXZ10YEZPT (YXZ1000R SS XTR) BASP 2023 MIDDLE DRIVE GEAR Diagram

#

Description
Price

1

SHAFT

2HC-17523-00-00

Unavailable

2

HOLDER

2HC-17524-00-00

Unavailable

3

SPRING, DAMPER

2HC-17528-00-00

Unavailable

4

CAM, DRIVEN

2S3-17527-00-00

Unavailable

5

GEAR, MIDDLE DRIVEN

B5H-17583-00-00

Unavailable

6

WASHER, PLATE

90201-27014-00

$33.99

7

WASHER, THRUST

23P-17529-00-00

$33.99

8

BEARING (5X5)

93306-20627-00

$75.99

9

OIL SEAL

93105-45018-00

$9.49

10

BEARING

93306-37218-00

$36.99

11

COUPLING

2HC-17832-00-00

$70.99

12

WASHER, PLATE(10L)

90201-165H4-00

$9.49

13

NUT

90179-16004-00

$15.99

14

HOUSING, BEARING

2HC-17521-00-00

Unavailable

15

BEARING(1FF)

93306-00519-00

$36.99

16

CIRCLIP(48Y)

99009-47500-00

Unavailable

17

SHAFT ASSY 1

2HC-46380-00-00

Unavailable

18

OIL SEAL (34X46X10.5-306)

93102-34095-00

Unavailable

19

YOKE,JOINT 2

2HC-17576-00-00

Unavailable

20

WASHER, PLATE(10L)

90201-165H4-00

$9.49

21

NUT

90179-16004-00

$15.99

22

BOLT, FLANGE

95022-06030-00

Unavailable

23

BOLT, WASHER BASED(4EB)

90105-06791-00

Unavailable

24

GASKET

2HC-17818-00-00

Unavailable

25

CROSS JOINT COMP. 2

2HC-46107-00-00

Unavailable

26

BEARING

93399-99948-00

Unavailable

27

CIRCLIP (4X7)

93440-20088-00

Unavailable

28

SPIDER

5GT-46187-00-00

Unavailable

29

BEARING

93399-99948-00

Unavailable

30

CIRCLIP (4X7)

93440-20088-00

Unavailable
