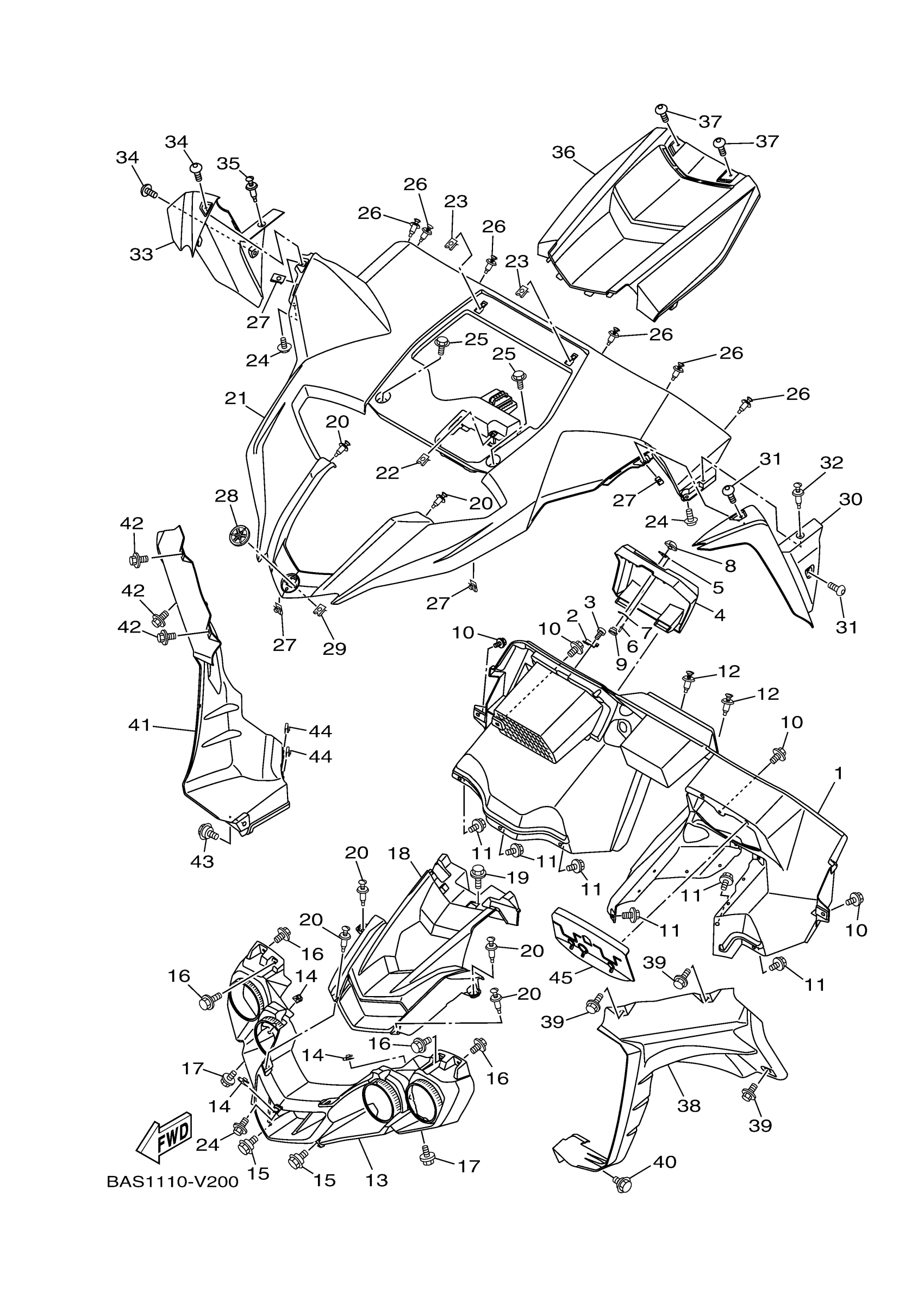

Yamaha YXZ10YEZPT (YXZ1000R SS XTR) BASP 2023 FRONT FENDER Diagram
#
Description
Price
1
PANEL, INSTRUMENT
2HC-K7711-21-00
Unavailable
3
SCREW, TAPPING
90164-04800-00
Unavailable
5
WASHER, SPECIAL
1XD-F1515-00-00
Unavailable
12
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
13
GRILLE, FRONT
2HC-F8309-00-00
Unavailable
18
COVER 1
BAS-F5715-20-00
Unavailable
20
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
21
FRONT FENDER COMP.
2HC-F1510-20-00
Unavailable
26
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
28
TUNING FORK MARK
1XD-F175B-01-00
Unavailable
29
NUT, SPRING
90183-06071-00
Unavailable
30
FLAP, FRONT FENDER
2HC-K8187-20-00
Unavailable
31
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
32
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
33
FLAP, FRONT FENDER
2HC-K818K-20-00
Unavailable
34
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
35
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
36
HOOD 2
BAS-F835F-20-00
Unavailable
37
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
38
COVER 1
2HC-E246A-00-00
Unavailable
41
COVER 2
2HC-E246E-00-00
Unavailable
45
COVER, SEAL 3
2HC-F338G-00-00
Unavailable
