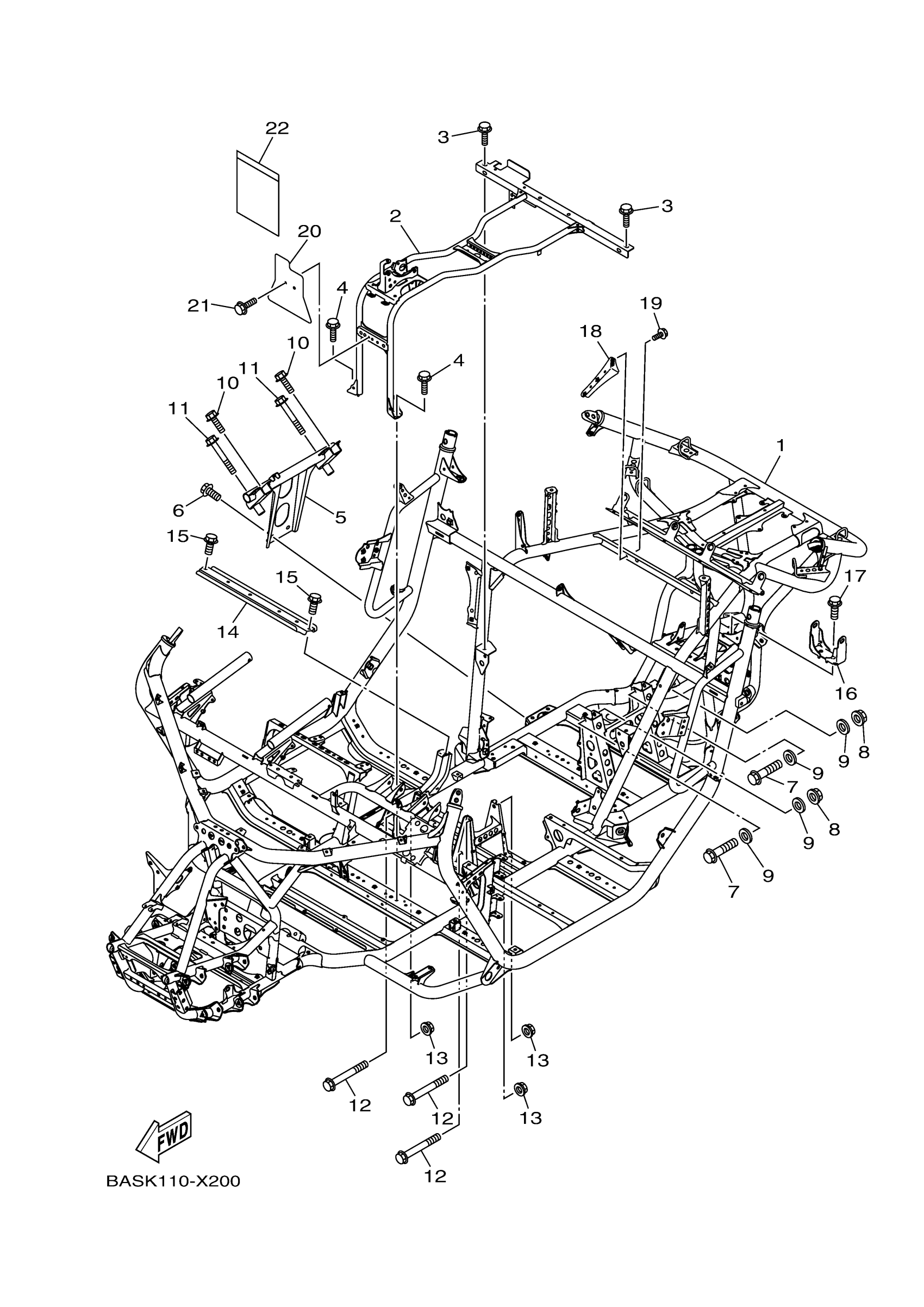

Yamaha YXZ10YEZPT (YXZ1000R SS XTR) BASP 2023 FRAME Diagram
#
Description
Price
1
FRAME COMP.
BAS-F1110-00-00
Unavailable
2
FRAME SUB COMP.
B5H-F111B-00-00
Unavailable
16
STAY, MUFFLER
2HC-F194J-00-00
Unavailable
18
BRACKET
B5H-F115C-00-00
Unavailable
19
BOLT, FLANGE
95817-06016-00
Unavailable
20
COVER, FRONT
B5H-F286H-01-00
Unavailable
21
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
22
POUCH
1P0-F8186-01-00
Unavailable
