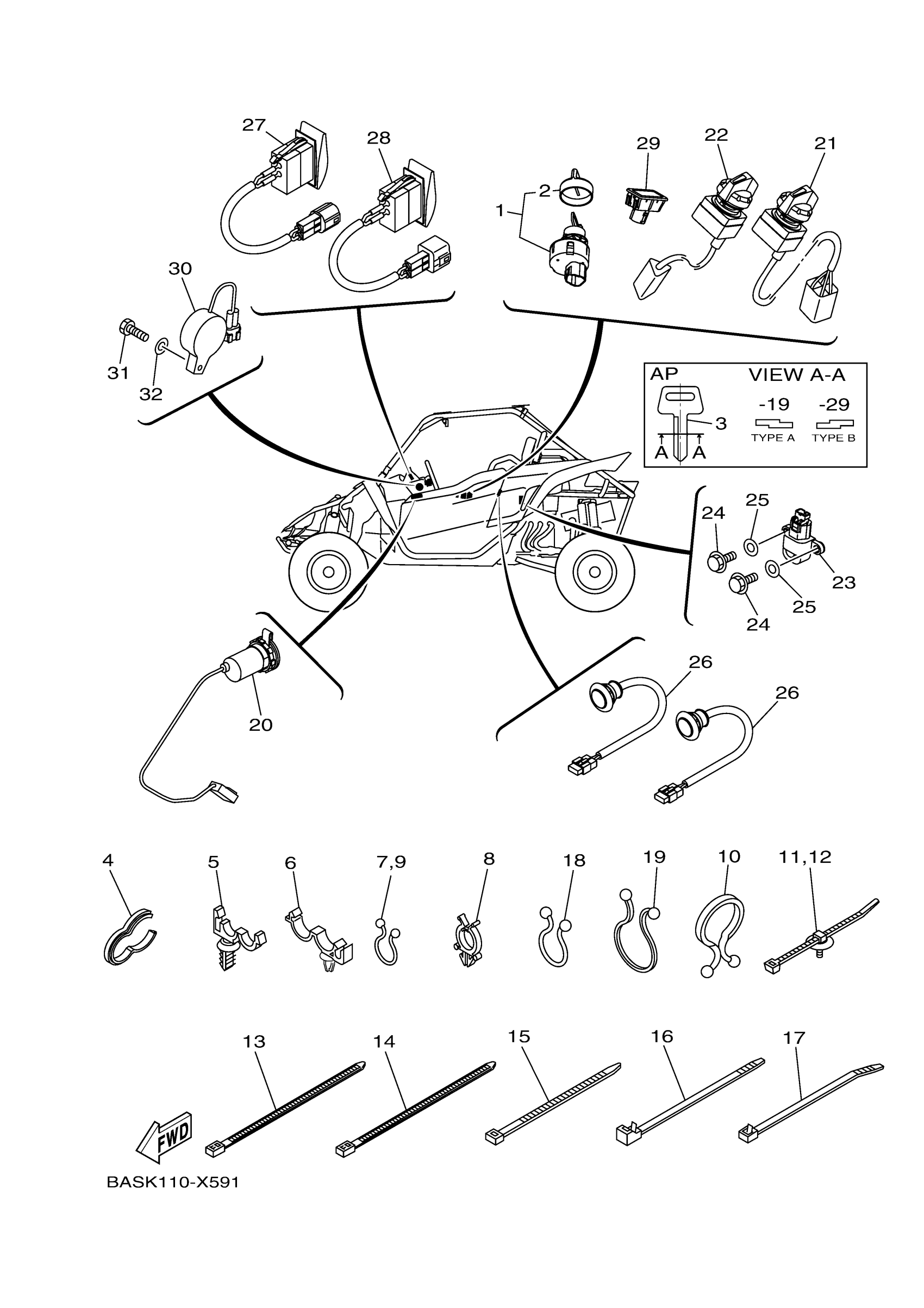

Yamaha YXZ10YEZPT (YXZ1000R SS XTR) BASP 2023 ELECTRICAL 3 Diagram
#
Description
Price
4
CLAMP(53Y)
90464-15065-00
Unavailable
8
CLAMP
90464-25826-00
Unavailable
9
CLAMP
90464-20804-00
Unavailable
10
CLAMP
90464-37257-00
Unavailable
15
CLAMP
90464-48800-00
Unavailable
16
CLAMP
90464-51800-00
Unavailable
17
CLAMP
90464-76800-00
Unavailable
18
CLAMP(2LM)
90464-44109-00
Unavailable
19
CLAMP
90464-25267-00
Unavailable
20
TERMINAL COMP.
1HP-H254B-10-00
Unavailable
21
SWITCH, LAMP
2HC-82526-01-00
Unavailable
22
SWITCH, SELECT
2HC-87280-01-00
Unavailable
23
SENSOR, LEAN ANGLE
3B4-82576-10-00
Unavailable
24
BOLT(6A1)
97095-05016-00
Unavailable
25
WASHER, PLAIN (646)
92990-05600-00
Unavailable
26
ROOM LIGHT ASSY
2HC-H5440-00-00
Unavailable
27
SWITCH
BAS-H2917-01-00
Unavailable
28
SWITCH ASSY
BAS-H259E-02-00
Unavailable
29
PILOT LIGHT ASSY
1XD-H3530-10-00
Unavailable
30
BUZZER
2MB-83383-00-00
Unavailable
31
BOLT(3JK)
97027-05020-00
Unavailable
32
WASHER, PLAIN (646)
92990-05600-00
Unavailable
