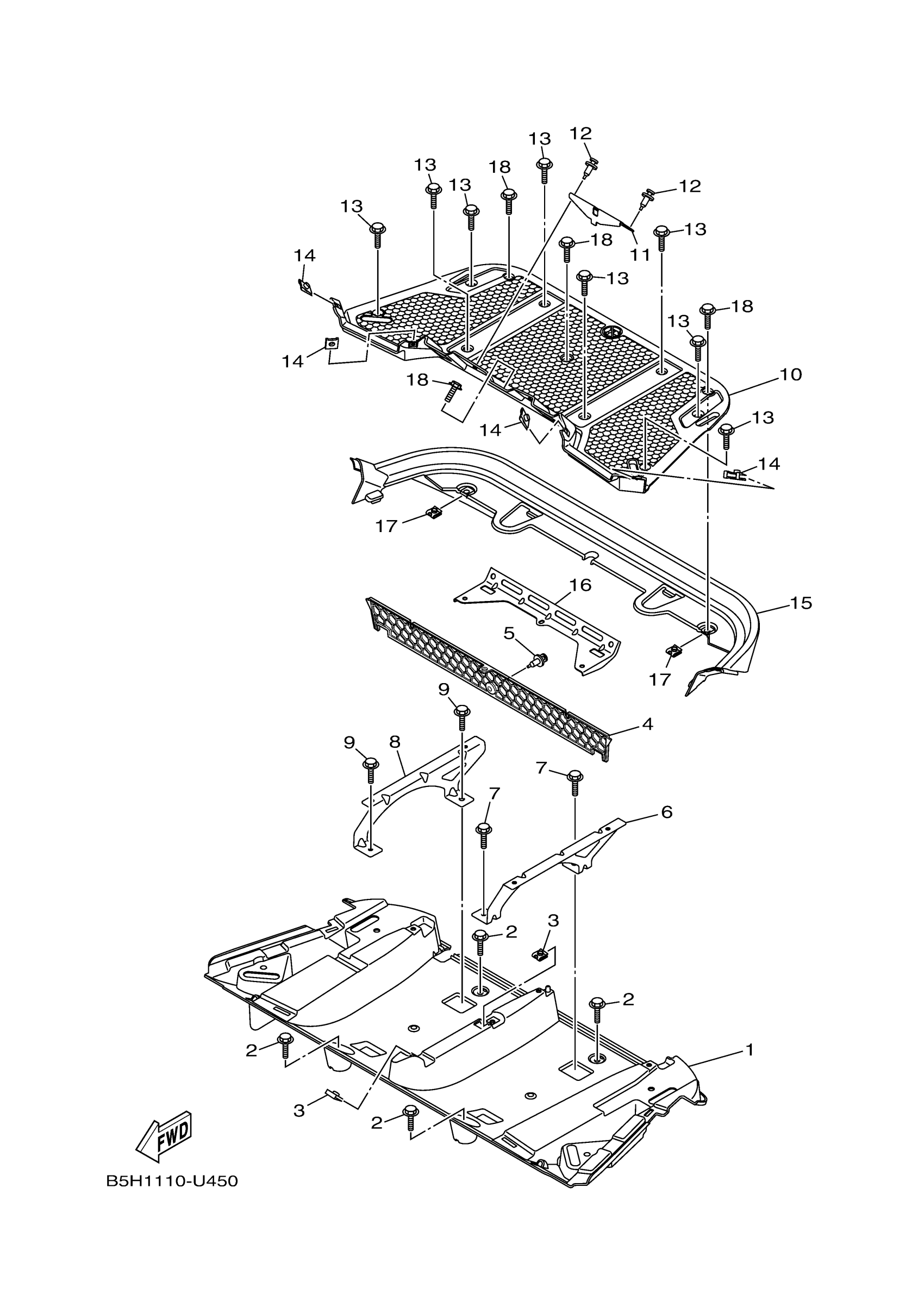

Yamaha YXZ10YEZPT (YXZ1000R SS XTR) BASP 2023 CARRIER Diagram

#

Description
Price

1

BOX, CARRIER UNDER

B5H-F4852-01-00

$45.73

2

BOLT, WITH WASHER (30X)

90119-06096-00

$2.88

3

NUT, SPRING

90183-060A6-00

$3.90

4

GRILL, AIR INTAKE

B5H-F837R-00-00

$5.27

5

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

6

STAY, CARRIER

B5H-F1271-00-00

$10.85

7

BOLT, WITH WASHER (30X)

90119-06096-00

$2.88

8

STAY CARRIER 2

B5H-F137H-00-00

$10.85

9

BOLT, WITH WASHER (30X)

90119-06096-00

$2.88

10

CARRIER, FRONT

B5H-F4841-01-00

$37.18

11

BRACKET 1

B5H-F8426-00-00

$4.38

12

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

13

BOLT, WITH WASHER (30X)

90119-06096-00

$2.88

14

NUT, SPRING

90183-060A6-00

$3.90

15

PANEL, FRAME RR.

B5H-F1235-00-00

$20.79

16

STAY, SUPPORT 2

B5H-F832T-00-00

Unavailable

17

NUT, SPRING

90183-060A6-00

$3.90

18

BOLT, WITH WASHER (30X)

90119-06096-00

$2.88
