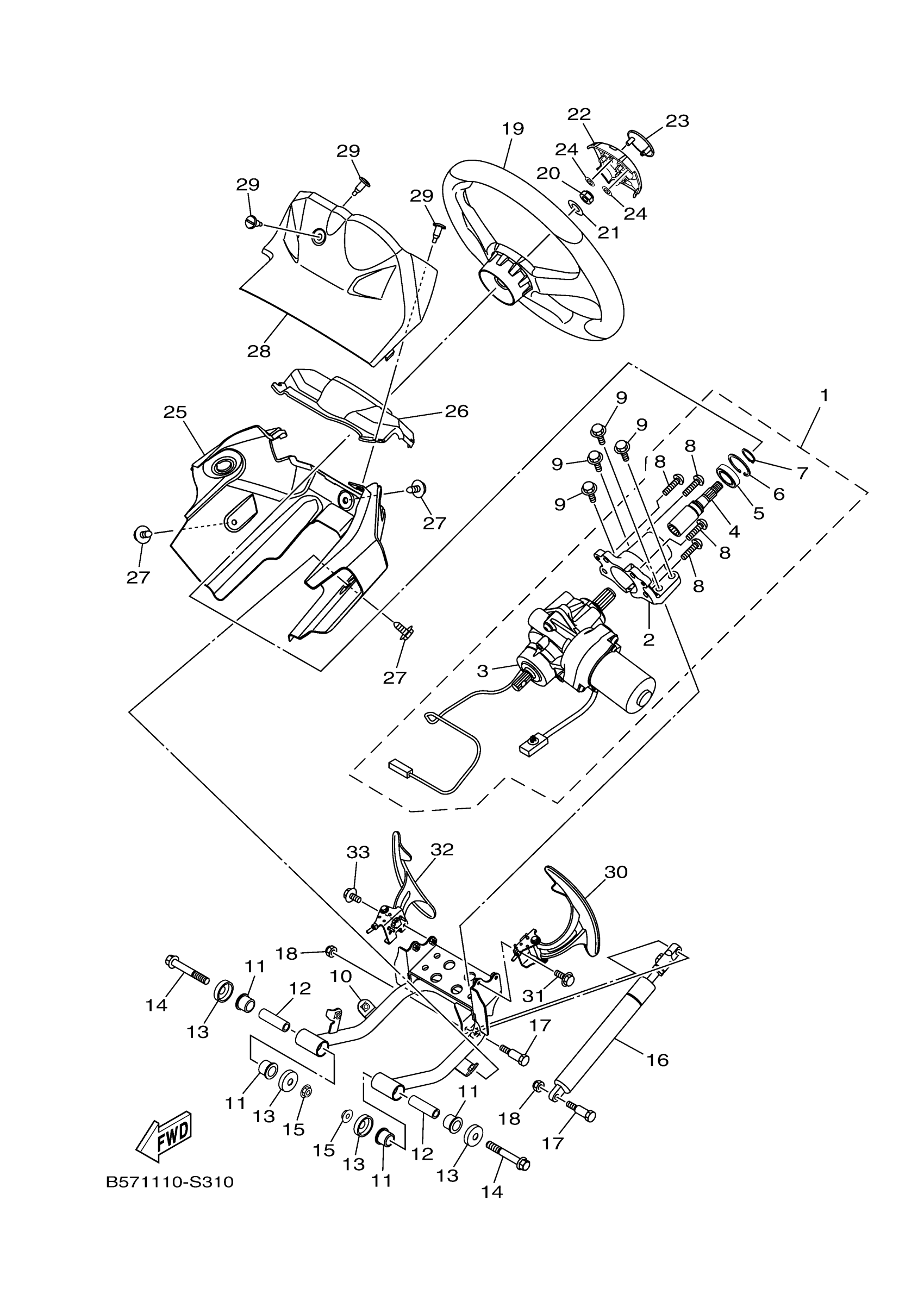

Yamaha YXZ10YEZNB (YXZ1000R SS XTR) BASK 2022 STEERING 2 Diagram

#

Description
Price

1

STEERING COLUMN AS

2HC-23810-06-00

Unavailable

2

SUPT., STRG. HSG.

2HC-2254G-00-00

$96.99

3

POWER STRG. ACTUAT

2HC-238B0-06-00

$2,842.99

4

SHAFT 1

2HC-23849-00-00

$58.99

5

BEARING

93306-97201-00

Unavailable

6

CIR-CLIP (70R)

93420-40064-00

Unavailable

7

CIRCLIP(1EY)

99009-22400-00

$8.49

8

BOLT, BUTTON HEAD

92012-08030-00

$5.60

9

BOLT, FLANGE(4LN)

95817-08025-00

$8.49

10

STEERING GATE COMP.

B57-F3870-01-00

$59.99

11

BUSH, SOLID(3GG)

90381-15088-00

$21.99

12

COLLAR

90387-10111-00

Unavailable

13

COVER, THRUST 1

1UY-23517-01-00

$6.99

14

BOLT, FLANGE

90105-10267-00

$9.49

15

NUT, S/L FLANGE

95602-10200-00

$4.82

16

SPRING, DAMPER

2HC-F3855-00-00

Unavailable

17

BOLT

90109-06255-00

Unavailable

18

NUT, NYLON

95707-06300-00

Unavailable

19

WHEEL,STEERING

2HC-F3838-02-00

Unavailable

20

NUT, SELF-LOCKING

90185-12007-00

Unavailable

21

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

22

COVER, STEERING

2HC-F3818-00-00

Unavailable

23

TUNING FORK MARK

1XD-F175B-01-00

Unavailable

24

NUT, SPRING

90183-06071-00

Unavailable

25

COVER, ADJUST

B57-F387G-00-00

Unavailable

26

COVER, FRONT

B57-F2865-00-00

Unavailable

27

BOLT, WITH WASHER

90119-06226-00

Unavailable

28

COVER,METER

2HC-H3559-01-00

Unavailable

29

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

30

PADDLE SHIFT ASSY. ,1

B57-2380A-10-00

Unavailable

31

BOLT, FLANGE

95812-06010-00

Unavailable

32

PADDLE SHIFT ASSY. ,2

B57-2380B-10-00

Unavailable

33

BOLT, FLANGE

95812-06010-00

Unavailable
