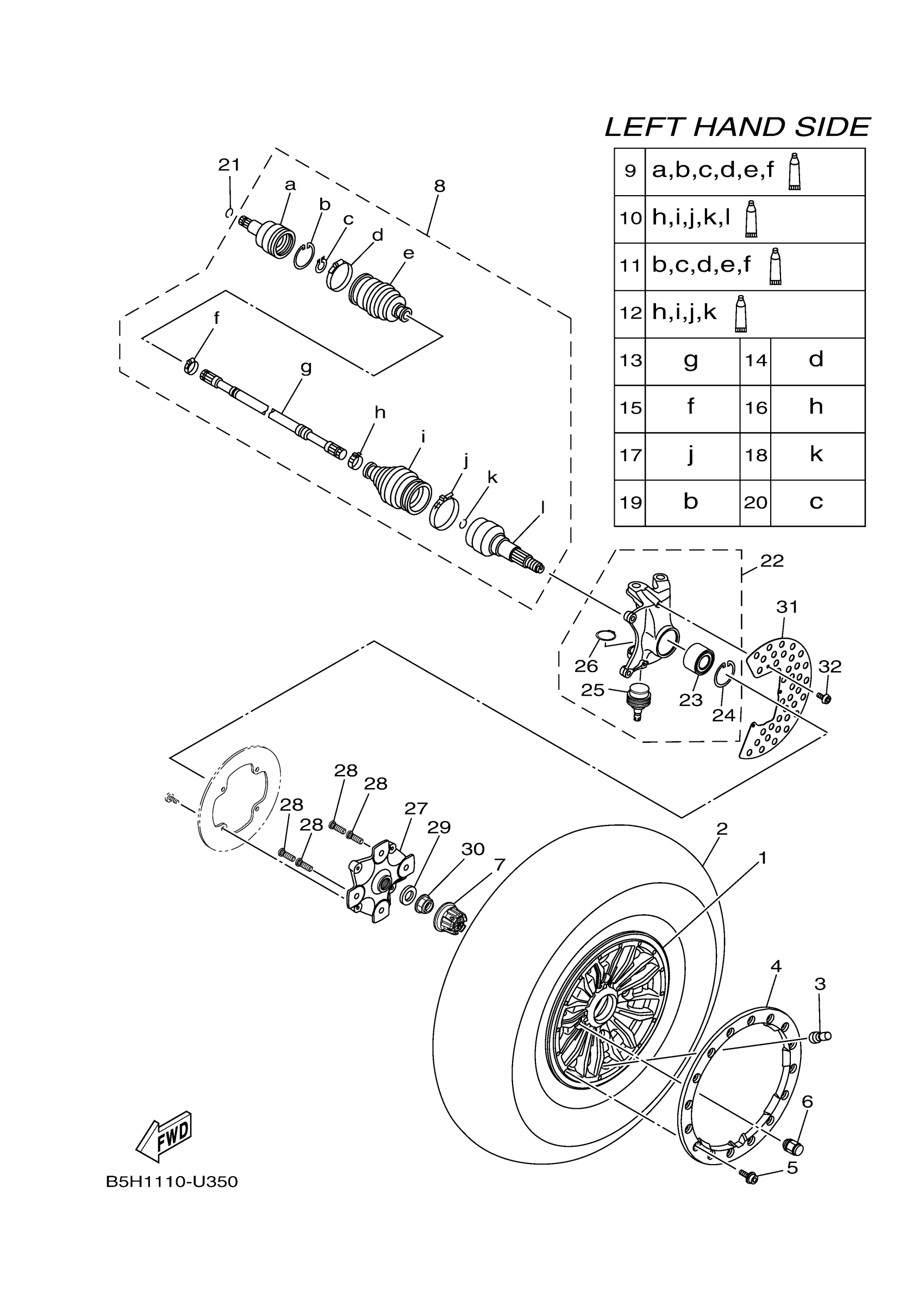

Yamaha YXZ10YEZNB (YXZ1000R SS XTR) BASK 2022 FRONT WHEEL Diagram

#

Description
Price

1

CAST, WHEEL FRONT MATT BLACK

BKP-F5168-30-00

Unavailable

2

29X9R14 ML19A 8PR TL

94109-14819-00

$392.43

3

VALVE, RIM

93900-00812-00

Unavailable

4

RING 1-BLACK

B5H-F5185-01-00

$144.96

5

BOLT, FLANGE

90105-088H6-00

$8.34

6

NUT, CROWN

90176-12800-00

$2.94

7

CAP, WHEEL

2HC-F512A-00-00

$2.69

8

DRIVE SHAFT ASSY

2HC-2518F-01-00

$191.14

9

DOUBLE OFF SET JOINT

2HC-2510J-01-00

$309.21

10

BALL JOINT SET

2HC-2510F-01-00

$485.60

11

BOOT SET(DOUBLE OF

2HC-2510H-01-00

$43.42

12

BOOT SET (BALL JOINT)

2HC-2510G-01-00

$43.45

13

SHAFT

2HC-2518E-00-00

Unavailable

14

BOOT BAND(DOUBLE OFFSET JOINT)

2HC-2511H-00-00

$7.07

15

BOOT BAND(DOUBLE OFFSET JOINT)

2HC-2511G-00-00

$5.12

16

BOOT BAND (BALL JOINT)

2HC-2510U-00-00

Unavailable

17

BOOT BAND (SMALL)

2HC-2512G-10-00

Unavailable

18

CIRCLIP

2HC-2512H-00-00

Unavailable

19

CIRCLIP

3B4-25182-00-00

Unavailable

20

SNAP RING

3B4-2512J-00-00

Unavailable

21

CIRCLIP(2HR)

93450-22119-00

Unavailable

22

STEERING KNUCKLE A

B5H-F3501-00-00

Unavailable

23

BEARING

93305-00604-00

Unavailable

24

CIRCLIP(MF1)

99009-62500-00

Unavailable

25

BALL JOINT 2

2HC-23579-00-00

Unavailable

26

CIRCLIP

93410-42096-00

Unavailable

27

HUB, FRONT

B5H-F5111-02-00

Unavailable

28

BOLT, SERRATION

90114-12005-00

Unavailable

29

WASHER, PLATE

90201-25023-00

Unavailable

30

NUT

90179-24006-00

Unavailable

31

RING, WHEEL 1

2HC-F514A-00-00

Unavailable

32

BOLT,HEX. SOCKET BUTTON

90111-06096-00

Unavailable
