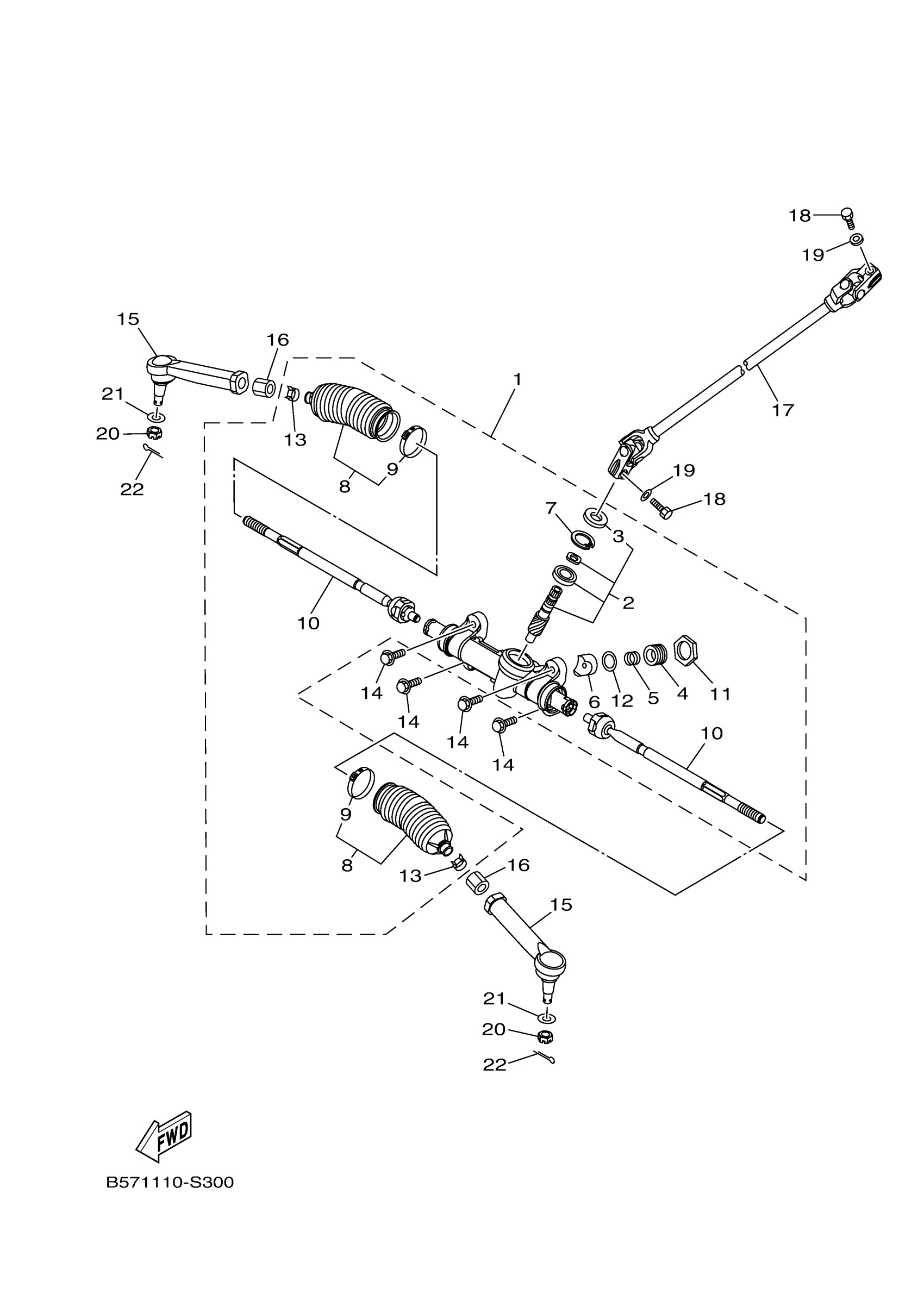

Yamaha YXZ10YEZMG (YXZ1000R SS XTR) BASA 2021 STEERING Diagram
#
Description
Price
4
COVER,ADJUST
1XD-F387G-00-00
Unavailable
5
SPRING,PRESSURE
1XD-F387K-00-00
Unavailable
6
PAD,PRESSURE
1XD-F387F-00-00
Unavailable
7
RING,STOPPER
1XD-F387J-00-00
Unavailable
8
SEAL 1 W/ BAND SET OF 2
1XD-F1208-00-00
Unavailable
10
RACK END SET
2HC-F38H0-00-00
Unavailable
11
LOCK ASSY
1XD-F178K-00-00
Unavailable
14
BOLT, FLANGE
90105-10348-00
Unavailable
16
NUT 1
2HC-F3833-00-00
Unavailable
17
STEERING SHAFT ASS
2HC-F3840-00-00
Unavailable
18
BOLT, SOCKET
91317-08025-00
Unavailable
19
WASHER, PLATE(3XP)
90201-083P5-00
Unavailable
20
NUT, CASTLE
90171-12001-00
Unavailable
21
WASHER, PLATE
90201-12045-00
Unavailable
22
PIN, COTTER
91490-20025-00
Unavailable
