Description

Price

1

SEAT BACK ASSY

BAS-F4790-50-00

$658.99

2

SEAT ASSY

BAS-F4700-50-00

$577.99

3

FRAME, SEAT 1

2HC-F473C-01-00

Unavailable

4

GROMMET

1XD-F4742-00-00

$2.96

5

PLUG

2HC-F2417-00-00

$1.97

6

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

7

ADJUSTER ASSY

BAS-F7270-00-00

$344.14

8

ADJUSTER ASSY

BAS-F7260-00-00

$134.47

9

BOLT, FLANGE

95817-08012-00

$3.71

10

COVER,2

2HC-F475X-01-00

$135.39

11

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

12

SEAT BACK ASSY

BAS-F4790-50-00

$658.99

13

SEAT ASSY

BAS-F4700-50-00

$577.99

14

FRAME, SEAT 2

2HC-F473D-01-00

$249.32

15

GROMMET

1XD-F4742-00-00

$2.96

16

PLUG

2HC-F2417-00-00

$1.97

17

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

18

BOLT, FLANGE

95817-08012-00

$3.71

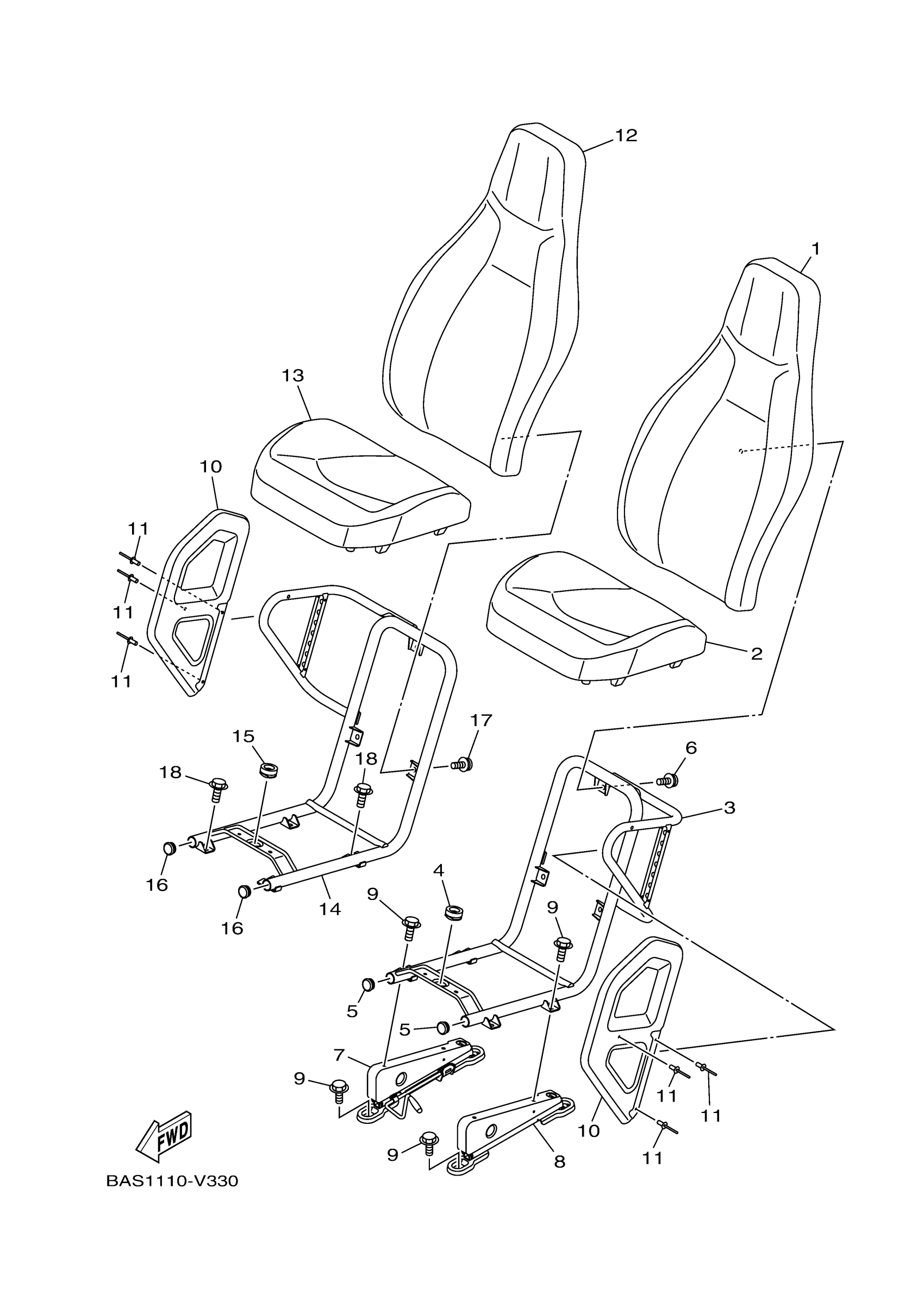

Yamaha YXZ10YEZMG (YXZ1000R SS XTR) BASA 2021 SEAT Diagram

SEAT BACK ASSY

SEAT ASSY

FRAME, SEAT 1

GROMMET

PLUG

BOLT, SEAT FITTING

ADJUSTER ASSY

ADJUSTER ASSY

BOLT, FLANGE

COVER,2

RIVET, BLIND(EU0,USA)

SEAT BACK ASSY

SEAT ASSY

FRAME, SEAT 2

GROMMET

PLUG

BOLT, SEAT FITTING

BOLT, FLANGE
