Description

Price

1

COVER, REAR

B5H-F286N-00-00

$128.99

2

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

3

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

4

NUT, SPRING

90183-060A6-00

$5.49

5

COVER, SIDE 1

B5H-F84AX-00-00

$122.99

6

NUT, SPRING

90183-060A6-00

$5.49

7

GROMMET(4DN)

90480-01558-00

$4.19

8

COVER, SIDE 2

B5H-F84AY-00-00

$42.99

9

NUT, SPRING

90183-060A6-00

$5.49

10

GROMMET(4DN)

90480-01558-00

$4.19

11

GRILL, AIR INTAKE

B5H-F837N-00-00

$9.49

12

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

13

COVER 3

B5H-F843J-00-00

$12.49

14

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

15

COVER 4

B5H-F844J-00-00

$12.49

16

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

17

COVER, 9

B5H-F841W-40-00

Unavailable

18

LEVER, LOCK

1XD-2175K-10-00

Unavailable

19

COVER 1

B5H-F8219-00-00

Unavailable

20

LEVER, LOCK

1XD-2175K-10-00

Unavailable

21

COVER 2

B5H-F8229-00-00

Unavailable

22

LEVER, LOCK

1XD-2175K-10-00

Unavailable

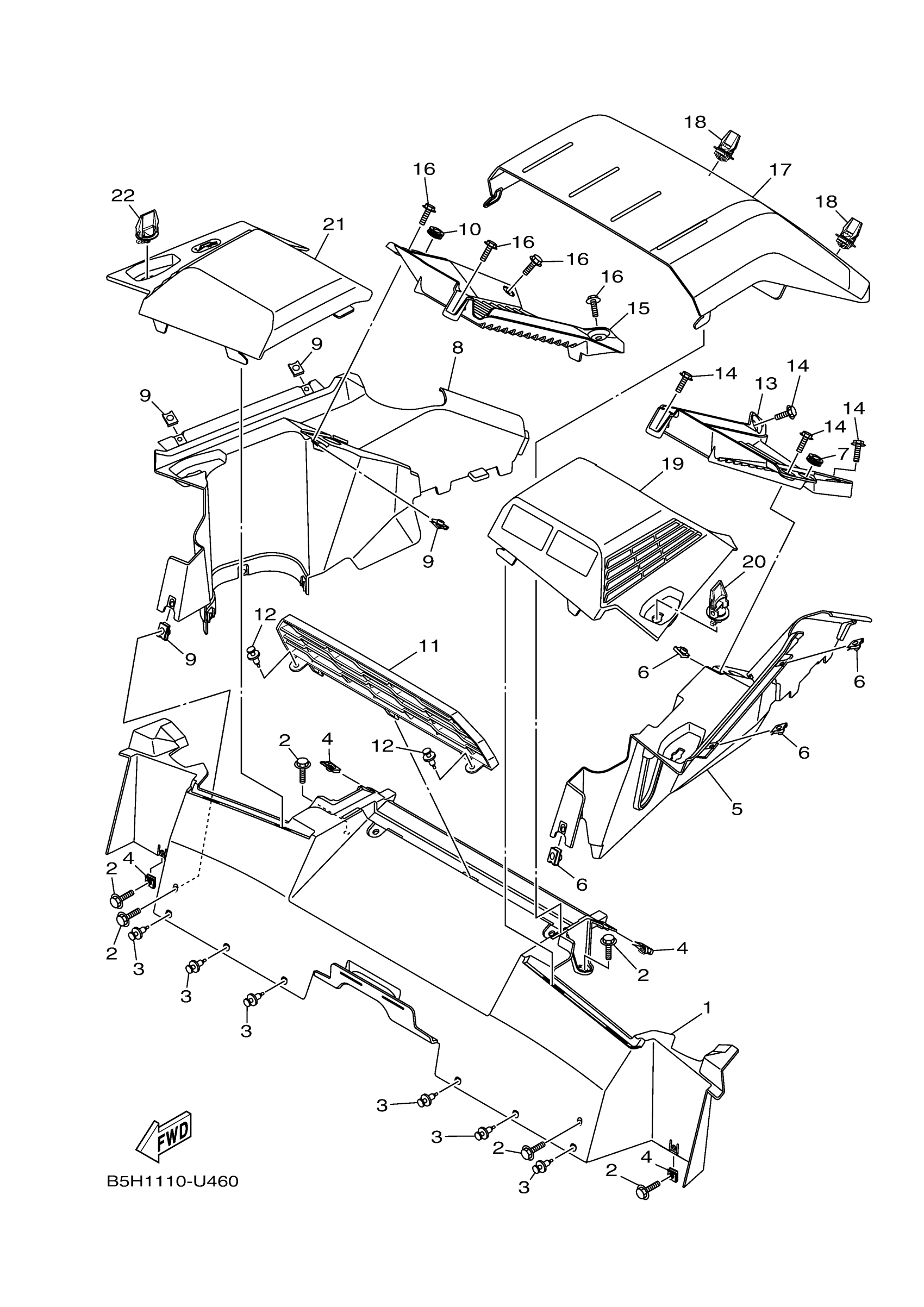

Yamaha YXZ10YEZMG (YXZ1000R SS XTR) BASA 2021 CARRIER 2 Diagram

COVER, REAR

BOLT, WITH WASHER (30X)

RIVET,SPEC'L SHAPE

NUT, SPRING

COVER, SIDE 1

NUT, SPRING

GROMMET(4DN)

COVER, SIDE 2

NUT, SPRING

GROMMET(4DN)

GRILL, AIR INTAKE

RIVET,SPEC'L SHAPE

COVER 3

BOLT, WITH WASHER (30X)

COVER 4

BOLT, WITH WASHER (30X)

COVER, 9

LEVER, LOCK

COVER 1

LEVER, LOCK

COVER 2

LEVER, LOCK
