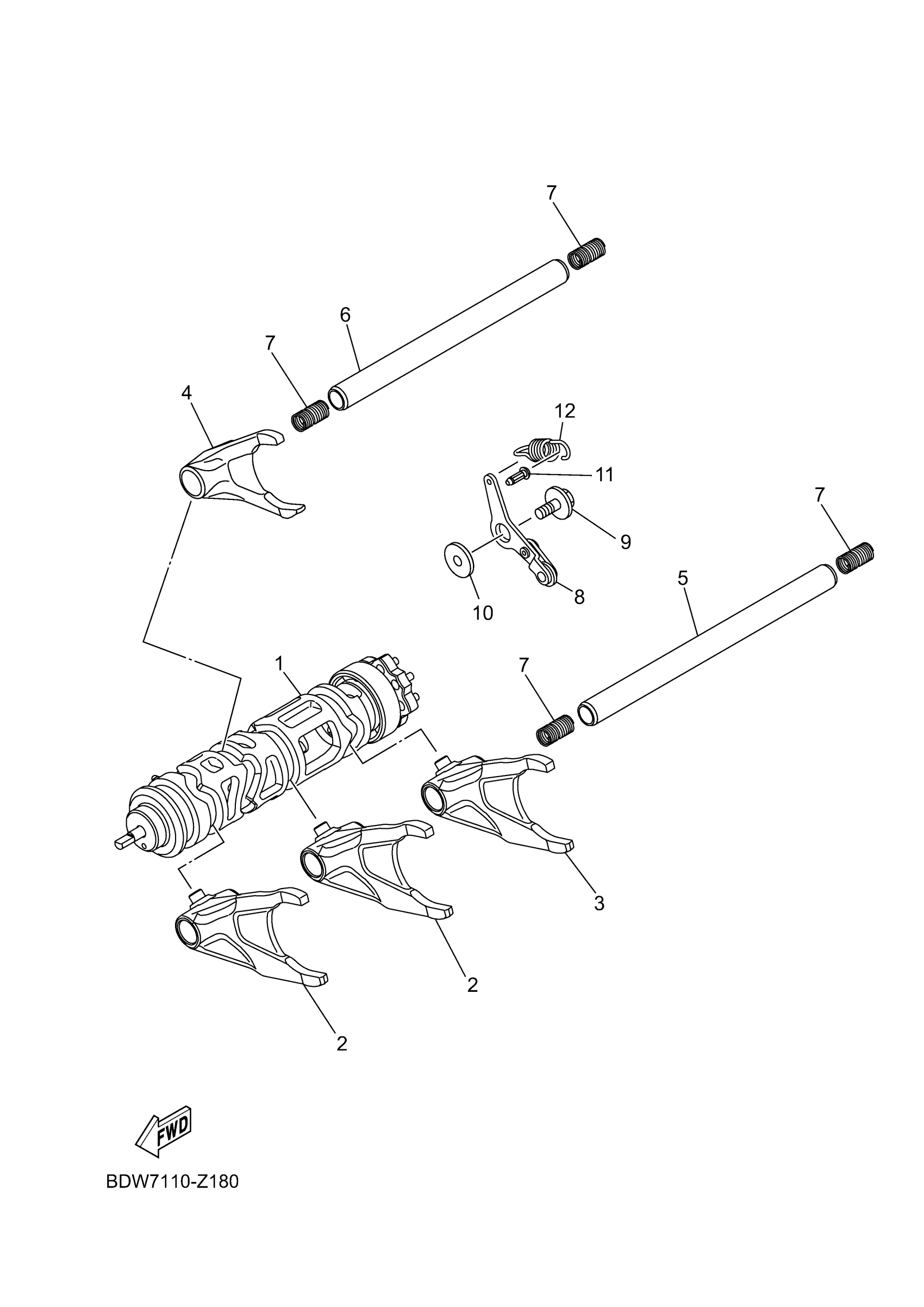

Yamaha YXZ10YEXSL (YXZ1000R SS) BDWF 2025 SHIFT CAM & FORK Diagram

#

Description
Price

1

SHIFT CAM ASSY

BDW-18540-00-00

Unavailable

2

FORK, SHIFT 1

BDW-18511-00-00

$132.85

3

FORK, SHIFT 2

BDW-18512-00-00

$140.38

4

FORK, SHIFT 3

BDW-18513-00-00

$137.31

5

BAR, SHIFT FORK GUIDE 1

BDW-18531-00-00

$81.75

6

BAR, SHIFT FORK GUIDE 2

BDW-18535-00-00

$81.25

7

SPRING, COMPRESSION

90501-080A2-00

$5.97

8

STOPPER LEVER ASSY

BDW-18140-00-00

Unavailable

9

SCREW, WITH WASHER

90159-06028-00

$5.99

10

SPACER

4NX-18175-00-00

Unavailable

11

HOOK, SPRING

132-16346-00-00

$8.35

12

HANGER, SPRING

BDW-18144-00-00

Unavailable
