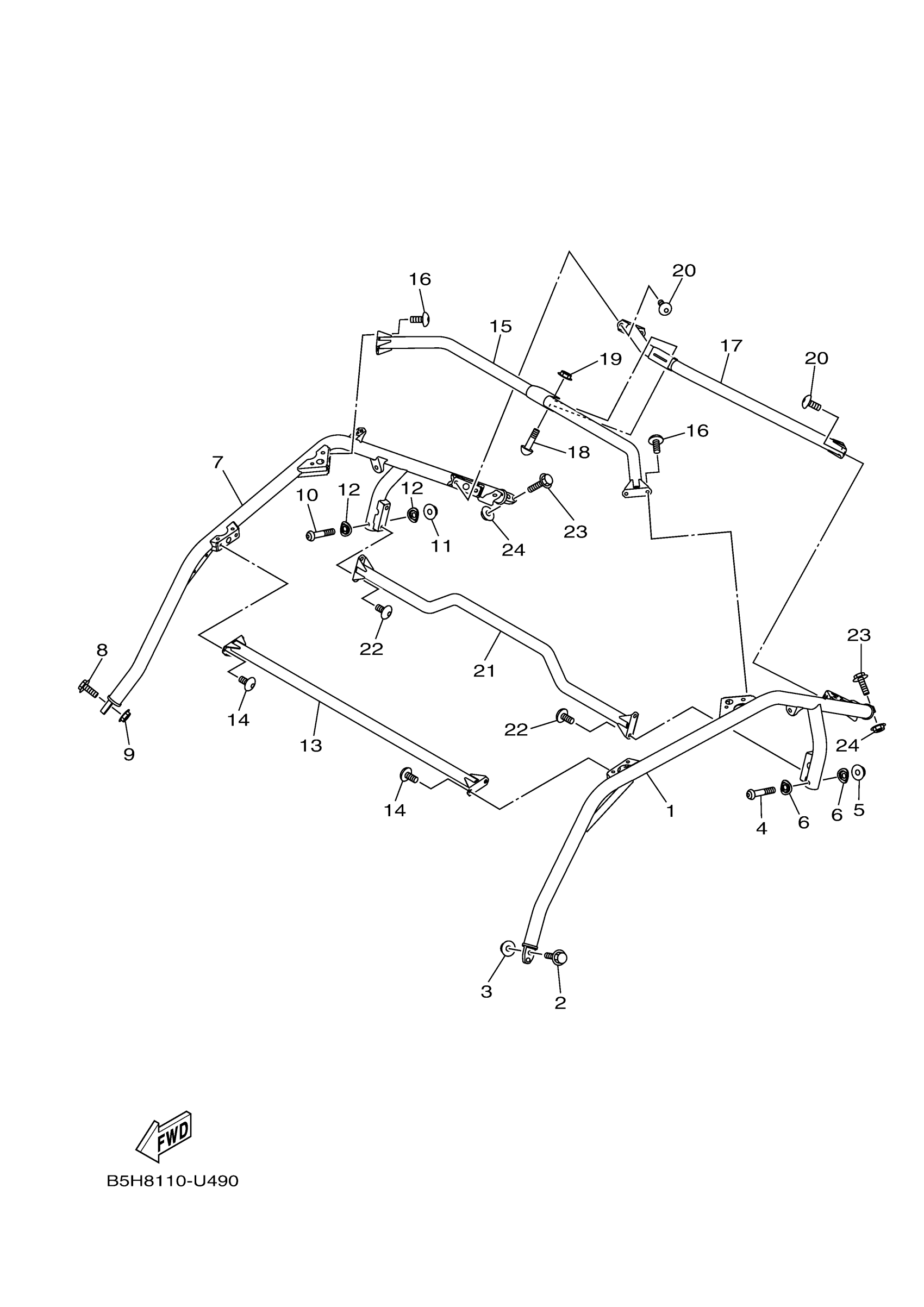

Yamaha YXZ10YEXSL (YXZ1000R SS) BDWF 2025 GUARD 2 Diagram

#

Description
Price

1

SUPPORT, ROOF 3

B5H-K831A-10-00

$220.76

2

BOLT, FLANGE(4GB)

95817-10045-00

$4.23

3

NUT, SELF-LOCKING

90185-10819-00

$0.91

4

BOLT,BUTTON

92017-10060-00

$4.53

5

NUT, SELF-LOCKING

90185-10819-00

$0.91

6

WASHER 2

5UG-K7526-00-00

$3.95

7

SUPPORT, ROOF 4

B5H-K831E-10-00

$220.76

8

BOLT, FLANGE(4GB)

95817-10045-00

$4.23

9

NUT, SELF-LOCKING

90185-10819-00

$0.91

10

BOLT,BUTTON

92017-10060-00

$4.53

11

NUT, SELF-LOCKING

90185-10819-00

$0.91

12

WASHER 2

5UG-K7526-00-00

$3.95

13

MEMBER, ROOF FRAME

BAS-K8392-10-00

Unavailable

14

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

15

ROOF SUPPORT ASSY

B5H-K830A-10-00

$130.14

16

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

17

ROOF SUPPORT ASSY

B5H-K830B-10-00

Unavailable

18

BOLT,BUTTON

92017-10060-00

$4.53

19

NUT, SELF-LOCKING

90185-10819-00

$0.91

20

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

21

ROOF SUPPORT ASSY

B5H-K830C-10-00

Unavailable

22

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

23

BOLT, FLANGE(4GB)

95817-10045-00

$4.23

24

NUT, SELF-LOCKING

90185-10819-00

$0.91
