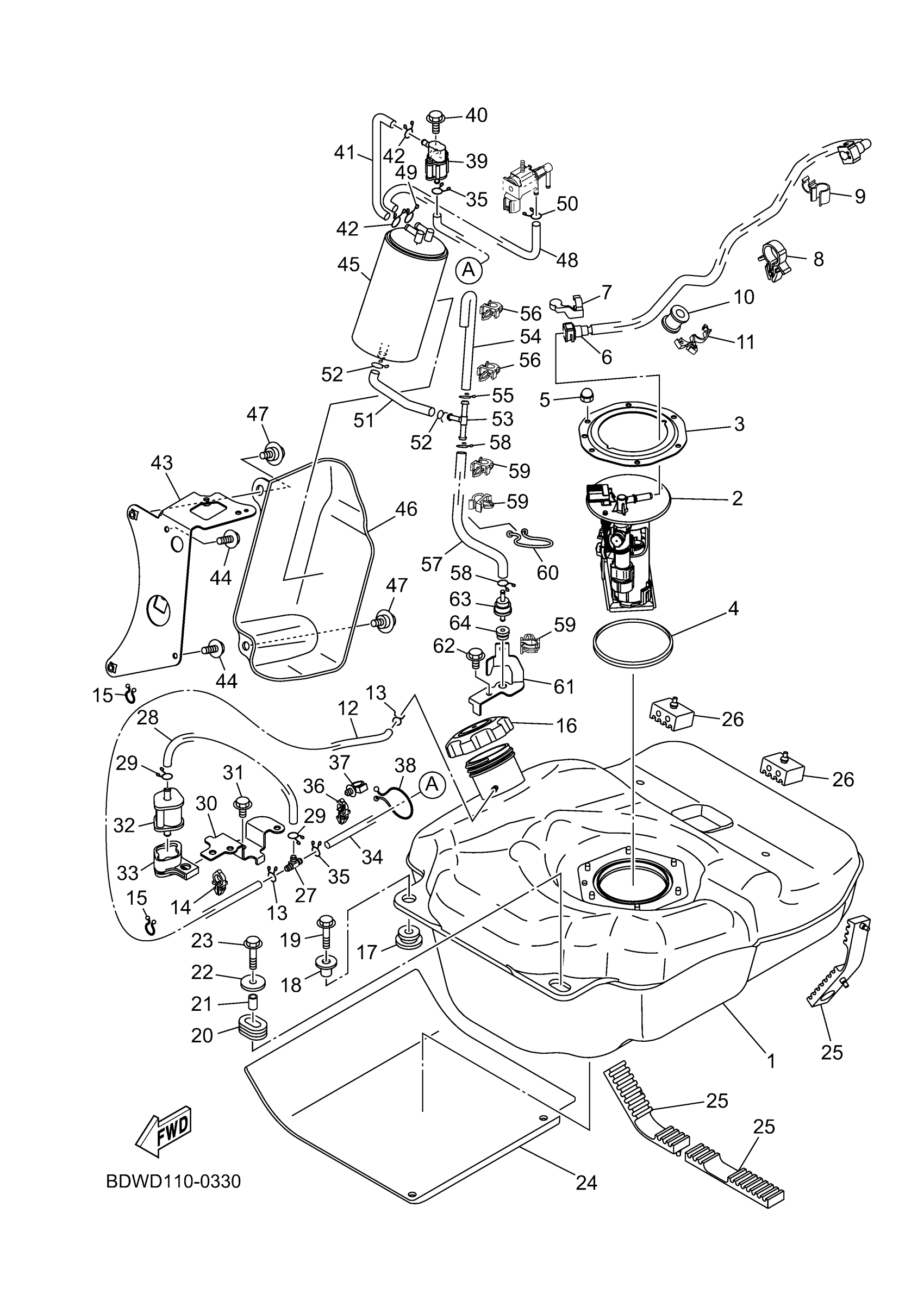

Yamaha YXZ10YEXSL (YXZ1000R SS) BDWF 2025 FUEL TANK Diagram
#
1
FUEL TANK COMP.
2HC-F4110-00-00
$211.99
2
FUEL PUMP COMP.
BDW-13907-00-00
$641.99
3
BRACKET, FUEL PUMP
3B4-24491-00-00
Unavailable
4
O-RING
1S3-24486-00-00
$17.49
5
NUT (J17)
95380-06800-00
$8.49
6
PIPE, FUEL 1
2HC-13971-02-00
Unavailable
7
CLAMP
90464-14004-00
$7.49
8
CLAMP(3XV)
90464-15157-00
$8.49
9
CLAMP
90464-15007-00
Unavailable
10
GROMMET(4CG)
90480-20543-00
$8.49
11
CLAMP
90464-20010-00
$3.23
12
TUBE 2
B5H-F41B5-00-00
$26.99
13
CLIP
90467-090A2-00
$4.41
14
CLAMP
90464-12830-00
$1.49
15
CLAMP
90464-14800-00
$3.40
16
CAP ASSY
BVG-24610-00-00
Unavailable
17
GROMMET
90480-18016-00
Unavailable
18
COLLAR (17W)
90387-075H4-00
Unavailable
19
BOLT, FLANGE
95817-06030-00
Unavailable
20
GROMMET(38W)
90480-01400-00
Unavailable
21
COLLAR(2UJ)
90387-061V1-00
Unavailable
22
WASHER (23T)
90201-065G8-00
Unavailable
23
BOLT, FLANGE
95817-06030-00
Unavailable
24
DAMPER, PLATE 1
2HC-F414H-01-00
Unavailable
25
DAMPER, LOCATING 1
2HC-F4181-00-00
Unavailable
26
DAMPER, LOCATING 2
2MB-F4182-00-00
Unavailable
27
WAY 3
90413-06031-00
Unavailable
28
HOSE
90445-09029-00
Unavailable
29
CLIP
90467-090A2-00
$4.41
30
BRKT. 7
B5H-F8468-00-00
Unavailable
31
BOLT, FLANGE DEEP
95D02-06012-00
Unavailable
32
PIPE JOINT ASSY
3B4-24380-11-00
Unavailable
33
BAND 1
3B4-24398-00-00
Unavailable
34
HOSE (L1220)
90445-09837-00
Unavailable
35
CLIP
90467-090A2-00
$4.41
36
CLAMP
90464-12830-00
$1.49
37
CLAMP
90464-12830-00
$1.49
38
CLAMP
90464-37257-00
Unavailable
39
PIPE JOINT ASSY
28P-24380-00-00
Unavailable
40
BOLT, FLANGE DEEP RECESS
95D02-06014-00
Unavailable
41
HOSE 1
B5H-F247A-00-00
Unavailable
42
CLIP
90467-090A2-00
$4.41
43
CANISTER HOLDER
B5H-F4190-02-00
Unavailable
44
BOLT, FLANGE DEEP
95D02-06012-00
Unavailable
45
CANISTER ASSY
7CC-F4170-02-00
Unavailable
46
COVER, CANISTER
B5H-F419E-00-00
Unavailable
47
BOLT
90109-06202-00
Unavailable
48
HOSE 3
B5H-F247C-00-00
Unavailable
49
CLIP
90467-090A2-00
$4.41
50
CLIP
90467-100A1-00
Unavailable
51
HOSE
90445-11052-00
Unavailable
52
CLIP
90467-100A1-00
Unavailable
53
WAY (70R)
90413-08012-00
Unavailable
54
HOSE 4
B5H-F247D-00-00
Unavailable
55
CLIP
90467-100A1-00
Unavailable
56
CLAMP
90464-14M55-00
Unavailable
57
HOSE
90445-11053-00
Unavailable
58
CLIP
90467-100A1-00
Unavailable
59
CLAMP
90464-14M55-00
Unavailable
60
CLAMP(2LM)
90464-44109-00
Unavailable
61
BRACKET, HOSE
B5H-F2957-00-00
Unavailable
62
BOLT, FLANGE DEEP
95D02-06012-00
Unavailable
63
VALVE, CHECK 1
BG4-24362-00-00
Unavailable
64
GROMMET
90480-10003-00
Unavailable
