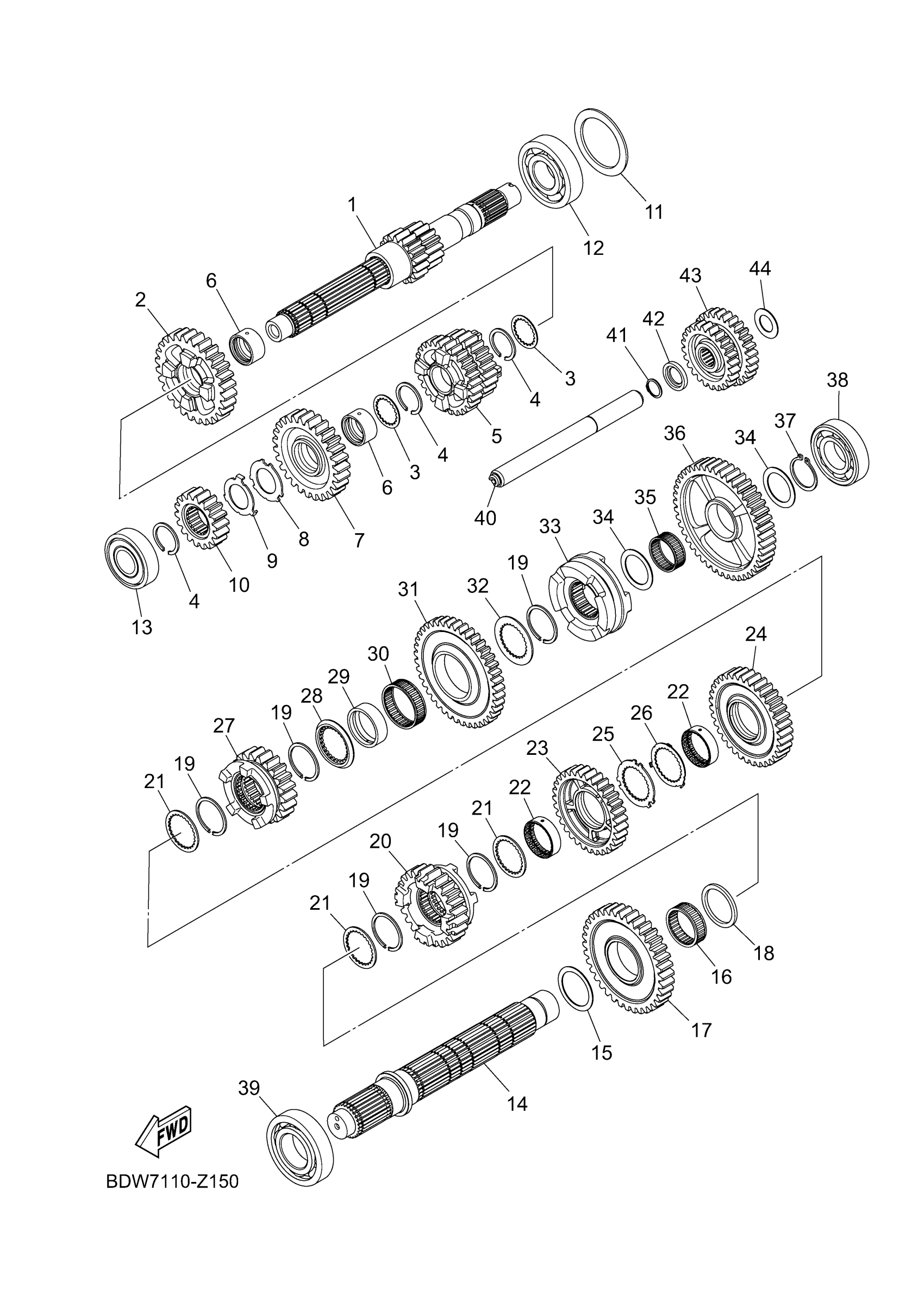

Yamaha YXZ10YEXRL (YXZ1000R SS) BDW9 2024 TRANSMISSION Diagram
#
1
MAIN AXLE ASSY
BDW-17401-00-00
$613.99
2
GEAR, 6TH PINION (28T)
BDW-17161-00-00
$158.99
3
WASHER
90209-25011-00
$8.49
4
CIRCLIP
93440-28184-00
$4.67
5
GEAR, 3RD PINION (24T/28T)
BDW-17131-00-00
$214.99
6
COLLAR
90387-25023-00
$41.99
7
GEAR, 5TH PINION (27T)
BDW-17151-00-00
$133.99
8
WASHER, CLAW
90214-25004-00
$9.49
9
WASHER, CLAW
90214-25003-00
$9.49
10
GEAR, 2ND PINION (18T)
BDW-17121-00-00
$89.99
11
WASHER, PLATE
90201-51013-00
$13.49
12
BEARING
93306-37817-00
$72.99
13
BEARING
93306-37215-00
$47.99
14
AXLE, DRIVE
BDW-17421-00-00
$231.99
15
WASHER, PLATE
90201-35018-00
Unavailable
16
BEARING
93310-33599-00
Unavailable
17
GEAR, 2ND WHEEL (36T)
BDW-17221-00-00
Unavailable
18
WASHER, PLATE
90201-35015-00
Unavailable
19
CIRCLIP (371)
93440-34025-00
Unavailable
20
GEAR, 5TH WHEEL (24T)
BDW-17251-00-00
Unavailable
21
WASHER
90209-33008-00
Unavailable
22
COLLAR
90387-32008-00
Unavailable
23
GEAR, 4TH WHEEL (31T)
BDW-17241-00-00
Unavailable
24
GEAR, 3RD WHEEL (35T)
BDW-17231-00-00
Unavailable
25
WASHER, CLAW
90214-33002-00
Unavailable
26
WASHER, CLAW
90214-33003-00
Unavailable
27
GEAR, 6TH WHEEL (21T)
BDW-17261-00-00
Unavailable
28
RETAINER
BDW-18658-00-00
Unavailable
29
RACE, INNER
BDW-46122-00-00
Unavailable
30
BEARING
93310-340C1-00
Unavailable
31
GEAR, REVERSE WHEEL 2 (41T)
BDW-17253-00-00
Unavailable
32
WASHER, CLAW
90214-33004-00
Unavailable
33
CLUTCH, DOG
BDW-17285-00-00
Unavailable
34
WASHER, PLATE
90201-30018-00
Unavailable
35
BEARING
93310-330S2-00
Unavailable
36
GEAR, 1ST WHEEL (45T)
BDW-17211-00-00
Unavailable
37
CIRCLIP(4A6)
99009-30400-00
Unavailable
38
BEARING
93306-20664-00
Unavailable
39
BEARING
93306-20726-00
Unavailable
40
AXLE, IDLE
BDW-17432-00-00
Unavailable
41
CIRCLIP (525)
93410-17037-00
Unavailable
42
RETAINER, SPRING
2HC-18473-00-00
Unavailable
43
REVERSE WHEEL ASSY (24T/28T)
BDW-1724A-00-00
Unavailable
44
WASHER PLATE 306155610000
90201-17257-00
Unavailable
