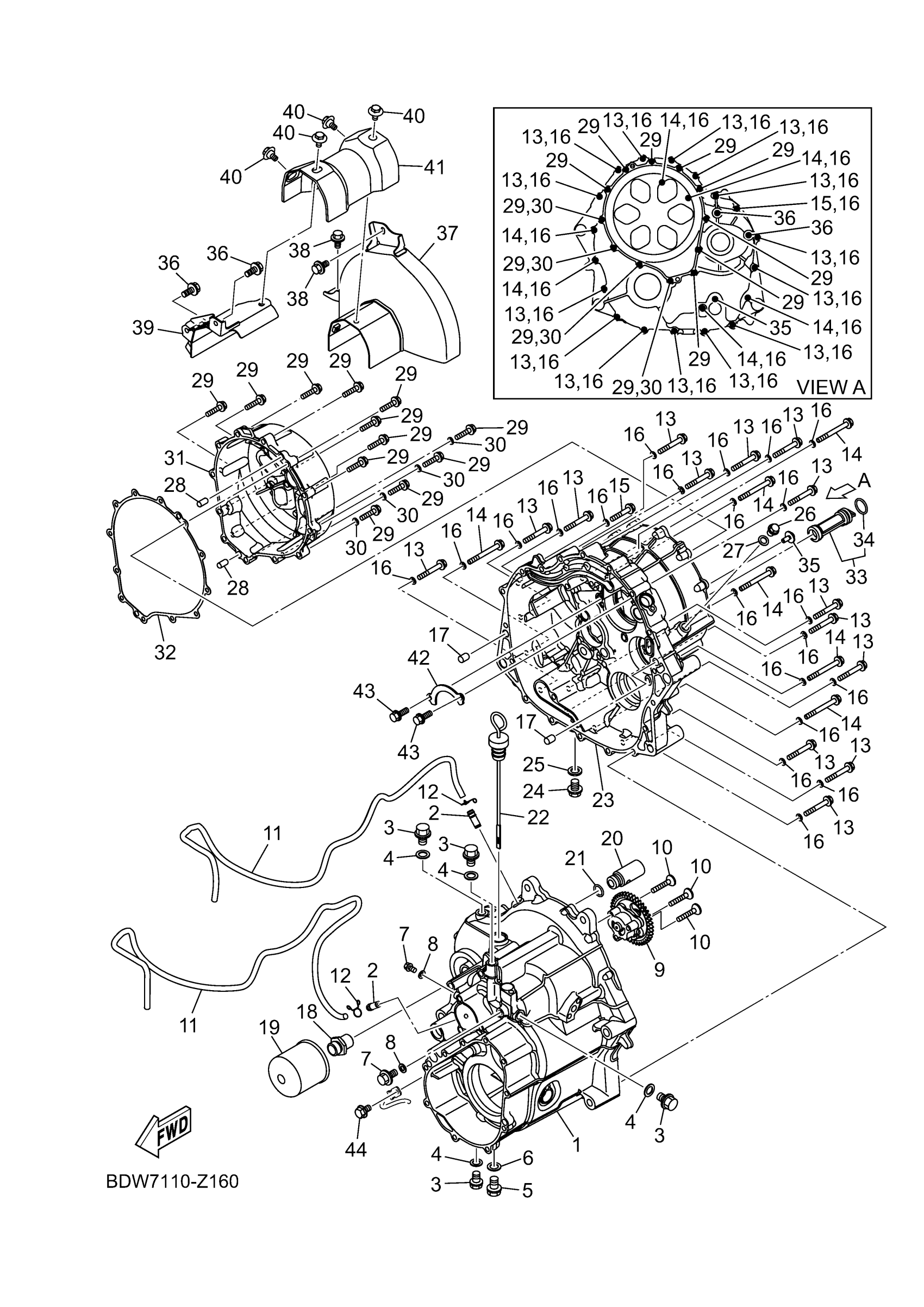

Yamaha YXZ10YEXRL (YXZ1000R SS) BDW9 2024 TRANSFER Diagram
#
1
CASE, TRANSFER 1
BDW-17541-00-00
Unavailable
2
. CONNECTOR, SUCTION PIPE
137-13115-01-00
Unavailable
3
PLUG STRAIGTSCREW 367185880000
90340-10003-00
$8.49
4
GASKET (1KH,1.0T)
90430-10148-00
$5.60
5
BOLT, WASHER BASED(4GY)
90105-122A1-00
$2.34
6
GASKET(2GH)
90430-12202-00
$9.49
7
BOLT, FLANGE DEEP RECESS
95E32-06010-00
$0.91
8
GASKET 256113960000
90430-06014-00
Unavailable
9
OIL PUMP ASSY
BDW-17880-00-00
Unavailable
10
SCREW, FLAT HEAD
98702-06035-00
Unavailable
11
HOSE (L1140)
90445-08040-00
Unavailable
12
CLIP (16G)
90467-08021-00
$8.49
13
BOLT, FLANGE DEEP
95E32-06045-00
Unavailable
14
BOLT, FLANGE DEEP RECESS
95E32-06060-00
$0.86
15
BOLT, SMALL FLANGE
95027-06035-00
$2.22
16
GASKET 256113960000
90430-06014-00
Unavailable
17
PIN, DOWEL(3VD)
99530-10114-00
Unavailable
18
BOLT, UNION
90401-20012-00
Unavailable
19
ELEMENT ASSY, OIL
5GH-13440-90-00
Unavailable
20
RELIEF VALVE ASSY
2C0-13490-00-00
Unavailable
21
O-RING (22U)
93210-15566-00
Unavailable
22
PLUG, OIL LEVEL
BDW-15362-00-00
Unavailable
23
CASE, TRANSFER 2
BDW-17542-00-00
Unavailable
24
PLUG, STRAIGHT SCREW
90340-12006-00
Unavailable
25
GASKET(3FD)
90430-12213-00
Unavailable
26
PLUG STRAIGTSCREW 367185880000
90340-10003-00
$8.49
27
GASKET (1KH,1.0T)
90430-10148-00
$5.60
28
PIN, DOWEL(3XW)
91808-16023-00
Unavailable
29
BOLT, FLANGE DEEP RECESS
95E32-06030-00
Unavailable
30
GASKET 256113960000
90430-06014-00
Unavailable
31
COVER, 1
BDW-15415-00-00
Unavailable
32
GASKET
BDW-15453-00-00
Unavailable
33
STRAINER, OIL
2HC-13411-00-00
Unavailable
34
O-RING
93210-20802-00
Unavailable
35
SCREW, WITH WASHER
90159-06021-00
Unavailable
36
BOLT, WITH WASHER
90119-06242-00
Unavailable
37
COVER, SHAFT 1
2HC-2147J-00-00
Unavailable
38
BOLT, WITH WASHER
90119-06242-00
Unavailable
39
COVER, SHAFT 2
2HC-2147K-00-00
Unavailable
40
BOLT
90109-06202-00
Unavailable
41
COVER PLATE COMP.
2HC-2131P-01-00
Unavailable
42
PLATE, BEARING
2HC-17558-00-00
Unavailable
43
BOLT, FLANGE
95022-06016-00
Unavailable
44
BOLT, FLANGE
95880-06012-00
Unavailable
